REAR WHEEL (MODEL K5)

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

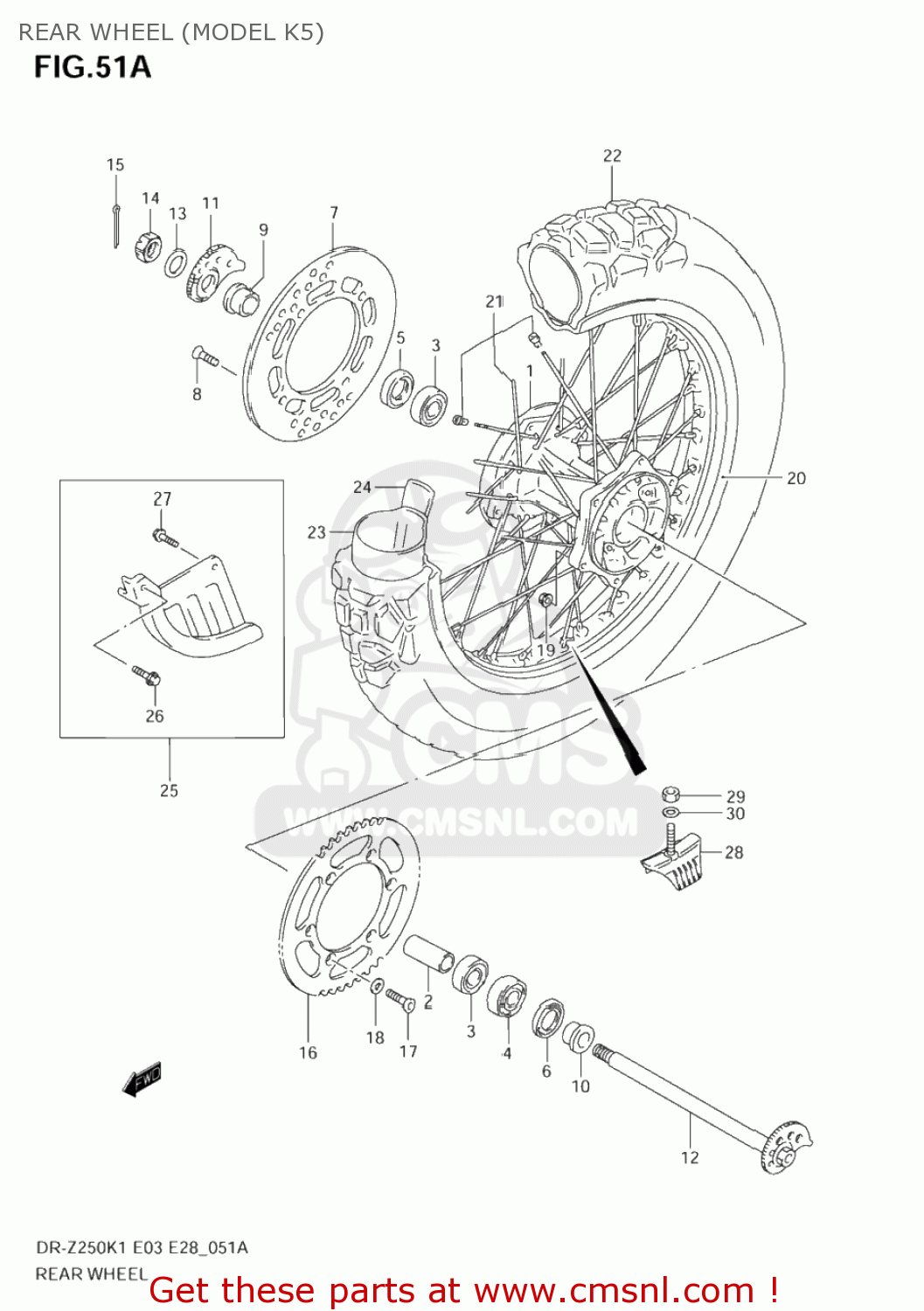

Rear wheel (model k5) diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

REAR WHEEL (MODEL K5) DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
REAR WHEEL (MODEL K5) DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
REAR WHEEL (MODEL K5) DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
6411114D10
ref: 1
HUB,RR WHEEL
€ 260.00
2
6473113E00
ref: 2
SPACER,RR HUB BEARING
6473113E00
€ 17.00
3
0812360047
ref: 3
08133-60047
BALL BEARING
0812360047
€ 21.00
4
0812362047
ref: 4
BEARING
0812362047
€ 17.00
5
0928226001
ref: 5
SEAL,OIL(26X42X8)
0928226001
€ 13.00
6
0928326019
ref: 6
SEAL,OIL(26X47X5)
0928326019
€ 9.50
7
6921103D10
ref: 7
DISC,RR BRAKE
6921103D10
€ 166.00
8
0910608155
ref: 8
BOLT(8X20)
0910608155
€ 4.00
9
6474114D00
ref: 9
SPACER,RR AXLE,R
6474114D00
€ 13.00
10
6475105D00
ref: 10
SPACER,RR AXLE,L
6475105D00
€ 15.00
11
6141032E00
ref: 11
ADJUSTER,CHAIN,R
6141032E00
€ 11.50
12
6471032E10
ref: 12
AXLE,RR
€ 0.00
13
0916019022
ref: 13
WASHER(19X32X3.2)
0916019022
€ 5.00
14
0831440183
ref: 14
08314-4018A
NUT
0831440183
€ 4.50
15
0411140308
ref: 15
04111-4030A
PIN,COTTER
0411140308
€ 1.50
16
6451100B01
ref: 16
SPROCKET,RR(NT:49)
6451100B01
€ 99.00
17
0912008004
ref: 17
SCREW(8X33.5)
0912008004
€ 3.00
18
0832201083
ref: 18
08322-0108A
WASHER
0832201083
€ 1.50
19
0831931088
ref: 19
08319-3108A
NUT
€ 2.50
20
6531114D00
ref: 20
RIM,RR WHEEL(18X2.15 AL)
€ 248.00
21
6532014D00
ref: 21
SPOKE SET,RR WHEEL
6532014D00
€ 64.50
22
6511013E80
ref: 22
TIRE,RR
€ 0.00
22
6511013E80
ref: 22
TIRE,RR
€ 0.00
23
6520013E00
ref: 23
TUBE ASSY,WHEEL INNER
€ 0.00
24
6526113E00
ref: 24
PROTECTOR,WHL INR TUBE
€ 0.00
25
6920028C00
ref: 25
COVER SET,RR BRAKE DISC
6920028C00
€ 29.50
26
0155006123
ref: 26
01550-0612A
BOLT
0155006123
€ 2.50
27
0155006203
ref: 27
01550-0620A
BOLT
0155006203
€ 2.50
28
6527029F00
ref: 28
STOPPER,BEAD(2.15)
6527029F00
€ 26.00
29
0831000083
ref: 29
08310-0008A
NUT
0831000083
€ 1.50
30
0832201083
ref: 30
08322-0108A
WASHER
0832201083
€ 1.50
