RH HANDLE LEVER

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

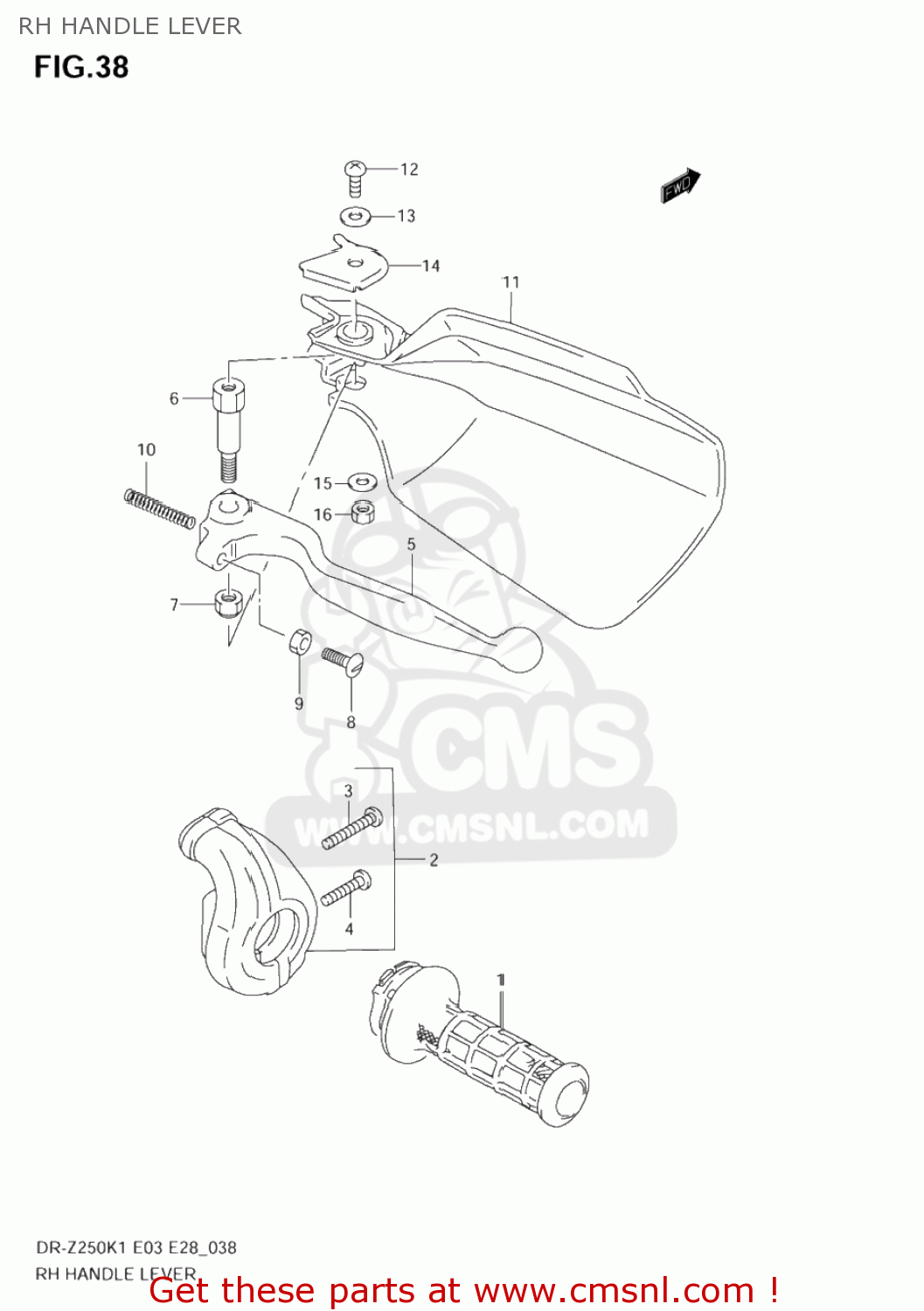

Rh handle lever diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

5711014D11
ref: 1

GRIP,THROTTLE

€ 25.50

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

0912505066
ref: 3

SCREW(5X25)

€ 2.00

0211205203
ref: 4
02112-0520B

SCREW

€ 2.50

5742127C00
ref: 5

LEVER,BRAKE

€ 11.00

5743105D00
ref: 6

BOLT,BRAKE LEVER PIVOT

€ 9.00

0831921068
ref: 7
08319-2106A

NUT 6MM

€ 2.00

5743114511
ref: 8

BOLT,ADJUST

€ 3.50

0831000053
ref: 9
08310-0005A

NUT

€ 2.50

5731814502
ref: 10

SPRING,RETURN

€ 3.00

11-1

5734105D00019
ref: 11-1

COVER,KNUCKLE,RIGHT

€ 21.00

11-2

5734105D00YU1
ref: 11-2

COVER, KNUCKLE RH (YELLOW)

€ 25.50

0214205107
ref: 12

SCREW

€ 2.50

0916005043
ref: 13

WASHER(5.5X16X1.2)

€ 2.50

5735514D00
ref: 14

PLATE,KNUCKLE COVER,R UPR

€ 5.00

0916006130
ref: 15

WASHER(6.5X16X1.6)

€ 2.00

0831921068
ref: 16
08319-2106A

NUT 6MM

€ 2.00

RH HANDLE LEVER
