ELECTRICAL

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

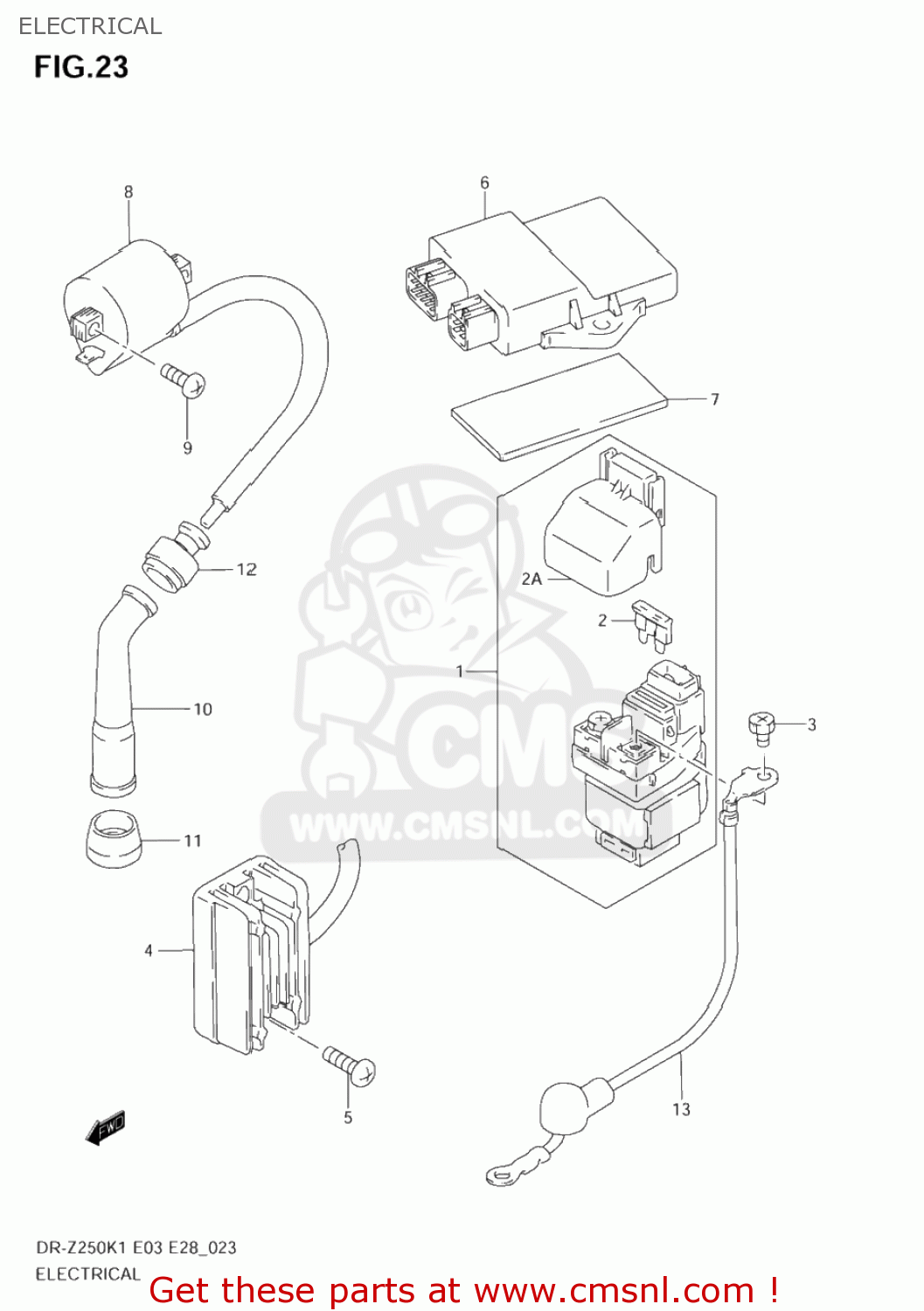

Electrical diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

3180013E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 100.50

0948110101
ref: 2

FUSE(10A)

€ 2.50

3186113E00
ref: 2A

COVER

€ 0.00

0912806013
ref: 3

SCREW(6X8)

€ 1.50

3280013E10
ref: 4
32800-13E11

RECTIFIER ASSY

€ 330.00

0216206203
ref: 5
02162-0620C

BOLT

€ 2.00

3290013EA0
ref: 6

CDI UNIT

€ 600.50

3365137000
ref: 7

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 7

PROTECTOR(170X95X3.0)

€ 5.00

3341013E00
ref: 8

COIL ASSY,IGNITION

€ 72.50

0211206163
ref: 9
02112-0616A

SCREW 6X16

€ 2.00

3351045010
ref: 10

CAP ASSY,SPARK PLUG

€ 23.00

3354147D00
ref: 11

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

3381013E00
ref: 13

WIRE,STARTER MOTOR

€ 0.00
