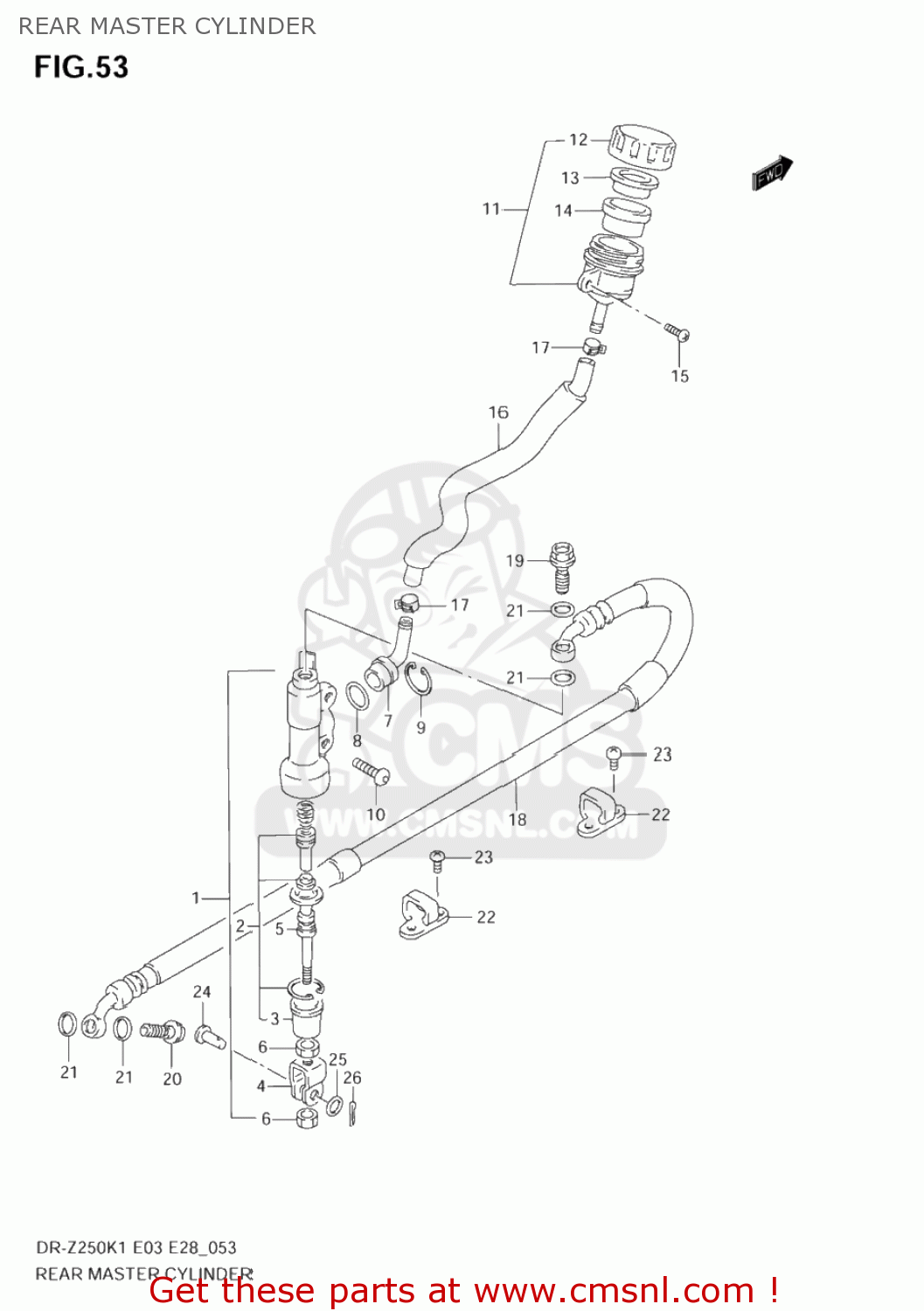

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960013E00
ref: 1

CYLINDER ASSY,RR MASTER

€ 0.00

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969213E00
ref: 4

YOKE

€ 11.00

5

6967001D00
ref: 5

ROD,PUSH

€ 24.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

6974005D10
ref: 11

TANK ASSY,RESERVOIR

€ 48.00

12

6966903D00
ref: 12

CAP

€ 11.00

13

6966800B20
ref: 13

PLATE

€ 4.00

14

6966700B20
ref: 14

DIAPHRAGM

€ 9.50

15

0214206123
ref: 15
02142-0612A

SCREW 6X12

€ 2.00

16

6973013E00
ref: 16

HOSE,RESERVOIR TANK

€ 0.00

17

0940112404
ref: 17

CLIP

€ 2.50

18

6948013E00
ref: 18
69480-13E01

HOSE, REAR BRAKE

€ 48.50

19

0936010041
ref: 19
09360-10061

BOLT UNION

€ 6.50

20

0936010042
ref: 20
09360-10062

BOLT UNION

€ 5.00

21

0916110009
ref: 21

WASHER(10X15X1.5)

€ 2.00

22

6119627C30
ref: 22

GUIDE,RR BRAKE

€ 5.50

23

0214205103
ref: 23
02142-0510B

SCREW

€ 2.50

24

0920008048
ref: 24

PIN(8X20)

€ 3.00

25

0916008119
ref: 25
09160-08090

WASHER (8.5X14X1.6)

€ 2.50

26

0411120158
ref: 26
04111-2015A

PIN

€ 1.50
