STARTER CLUTCH

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

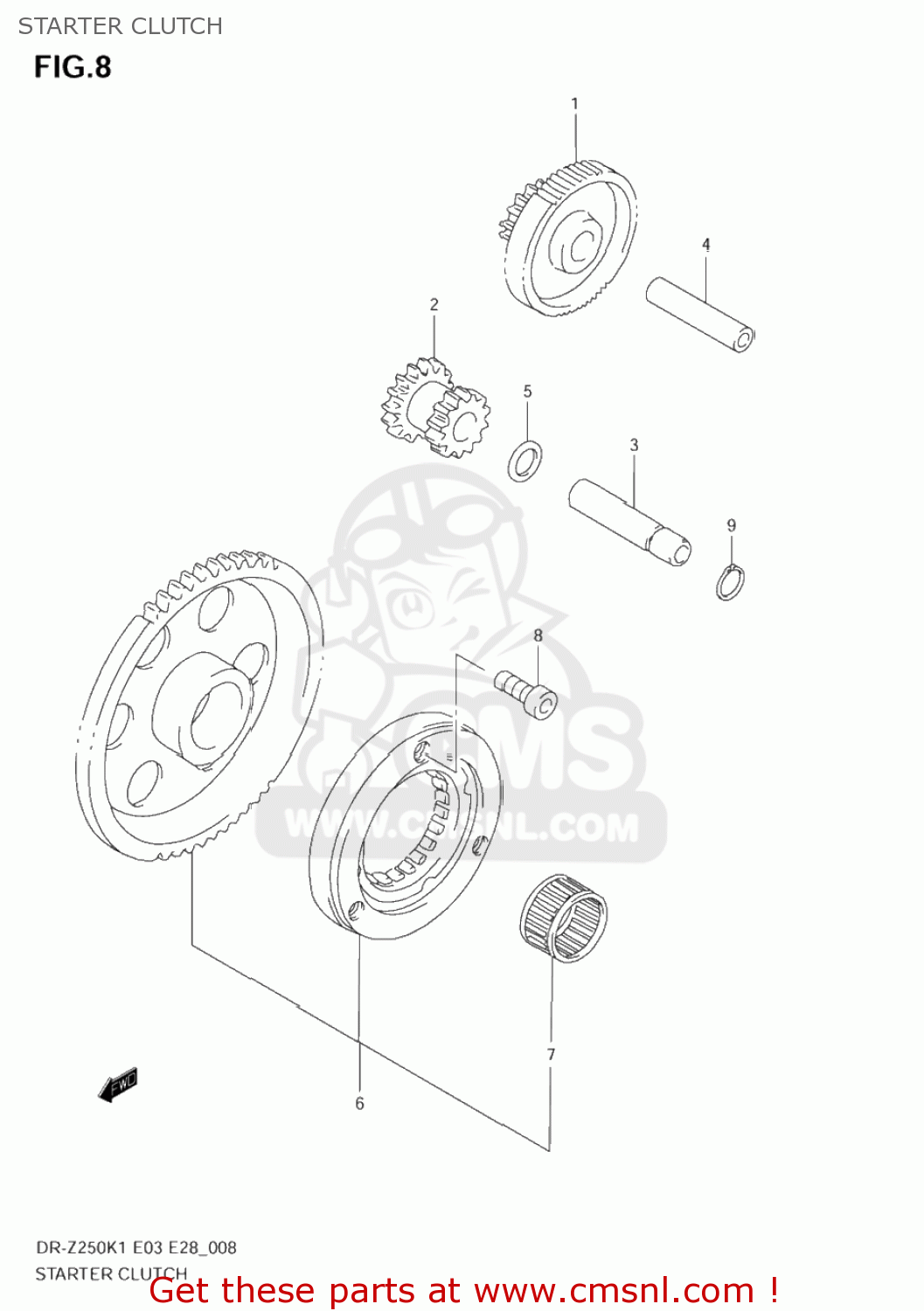

Starter clutch diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

STARTER CLUTCH DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
STARTER CLUTCH DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
STARTER CLUTCH DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
1261113E00
ref: 1
GEAR,STARTER IDLE NO.1
€ 55.50
2
1261213E00
ref: 2
GEAR,STRTR IDLE NO.2(NT:12/16)
1261213E00
€ 42.00
3
1261613E00
ref: 3
12616-13E01
SHAFT, STARTER IDLE GEAR NO.2
€ 10.00
4
0920612002
ref: 4
PIN(7X12X50.5)
€ 9.00
5
0918112130
ref: 5
SHIM(12X18X0.5)
0918112130
€ 2.50
6
1260013810
ref: 6
CLUTCH SET,STARTER
€ 207.00
7
0926325049
ref: 7
BEARING(25X31X19)
0926325049
€ 21.50
8
0713008163
ref: 8
07130-0816A
BOLT
0713008163
€ 3.00
9
0833131126
ref: 9
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
