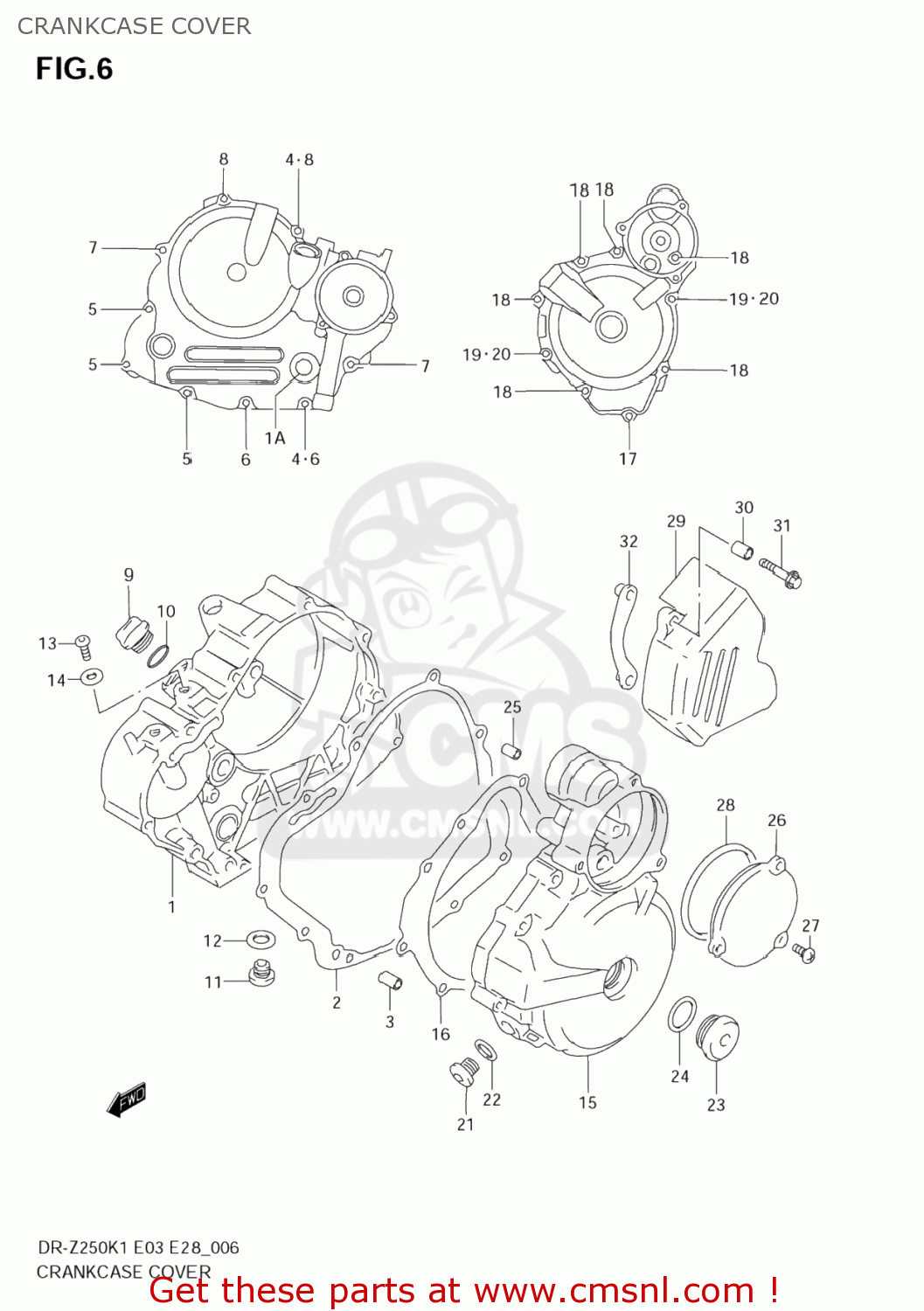

CRANKCASE COVER

ref

part #

description

quantity

1

1134013E00
ref: 1

COVER,CLUTCH

€ 195.00

1A

1197145010
ref: 1A

LENS,OIL LEVEL CHECK

€ 13.00

2

1148213E00
ref: 2

GASKET,CLUTCH COVER

€ 24.50

3

0421109149
ref: 3

PIN

€ 2.00

4

0916806023
ref: 4

GASKET(5.8X13X1.2) (NAS)

€ 2.00

5

0154706253
ref: 5
01547-0625B

SCREW

€ 2.50

6

0154706353
ref: 6
01547-0635B

BOLT

€ 3.00

7

0154706403
ref: 7
01547-0640B

BOLT

€ 3.00

8

0154706603
ref: 8
01547-0660B

BOLT

€ 3.50

9

0925920019
ref: 9

PLUG

€ 9.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11-1

0924814005
ref: 11-1

PLUG,14X12

€ 5.00

11-2

0924814011
ref: 11-2
09248-14005

PLUG

€ 5.00

12

0916814002
ref: 12
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

13

0924810010
ref: 13

PLUG(10X10)

€ 4.00

14

0916810002
ref: 14

GASKET(10X14X3.6) (NAS)

€ 2.00

15

1135113E00
ref: 15

COVER,MAGNETO

€ 185.00

16

1148313E00
ref: 16

GASKET,MAGNETO COVER

€ 14.50

17

0154706253
ref: 17
01547-0625B

SCREW

€ 2.50

18

0154706353
ref: 18
01547-0635B

BOLT

€ 3.00

19

0154706453
ref: 19
01547-0645B

BOLT

€ 3.00

20

0916806023
ref: 20

GASKET(5.8X13X1.2) (NAS)

€ 2.00

21-1

0924814005
ref: 21-1

PLUG,14X12

€ 5.00

21-2

0924814011
ref: 21-2
09248-14005

PLUG

€ 5.00

22

0916814002
ref: 22
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

23

0925926011
ref: 23

PLUG(26X9)

€ 8.50

24

0928022008
ref: 24

O RING(D:3.1,ID:22.7)

€ 2.50

25

0421109149
ref: 25

PIN

€ 2.00

26

1135213E00
ref: 26

COVER,STARTER IDLE GEAR

€ 15.00

27

0214206123
ref: 27
02142-0612A

SCREW 6X12

€ 2.00

28

0928071004
ref: 28

O RING(D:2.6,ID:69.6)

€ 19.00

29

1136013E00
ref: 29

COVER,ENGINE SPROCKET

€ 63.00

30

0918006289
ref: 30

SPACER(6.5X10X11.5)

€ 2.50

31

0154706353
ref: 31
01547-0635B

BOLT

€ 3.00

32

2764013E10
ref: 32

PLATE,FR CHAIN GUIDE

€ 0.00
