CAM CHAIN

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

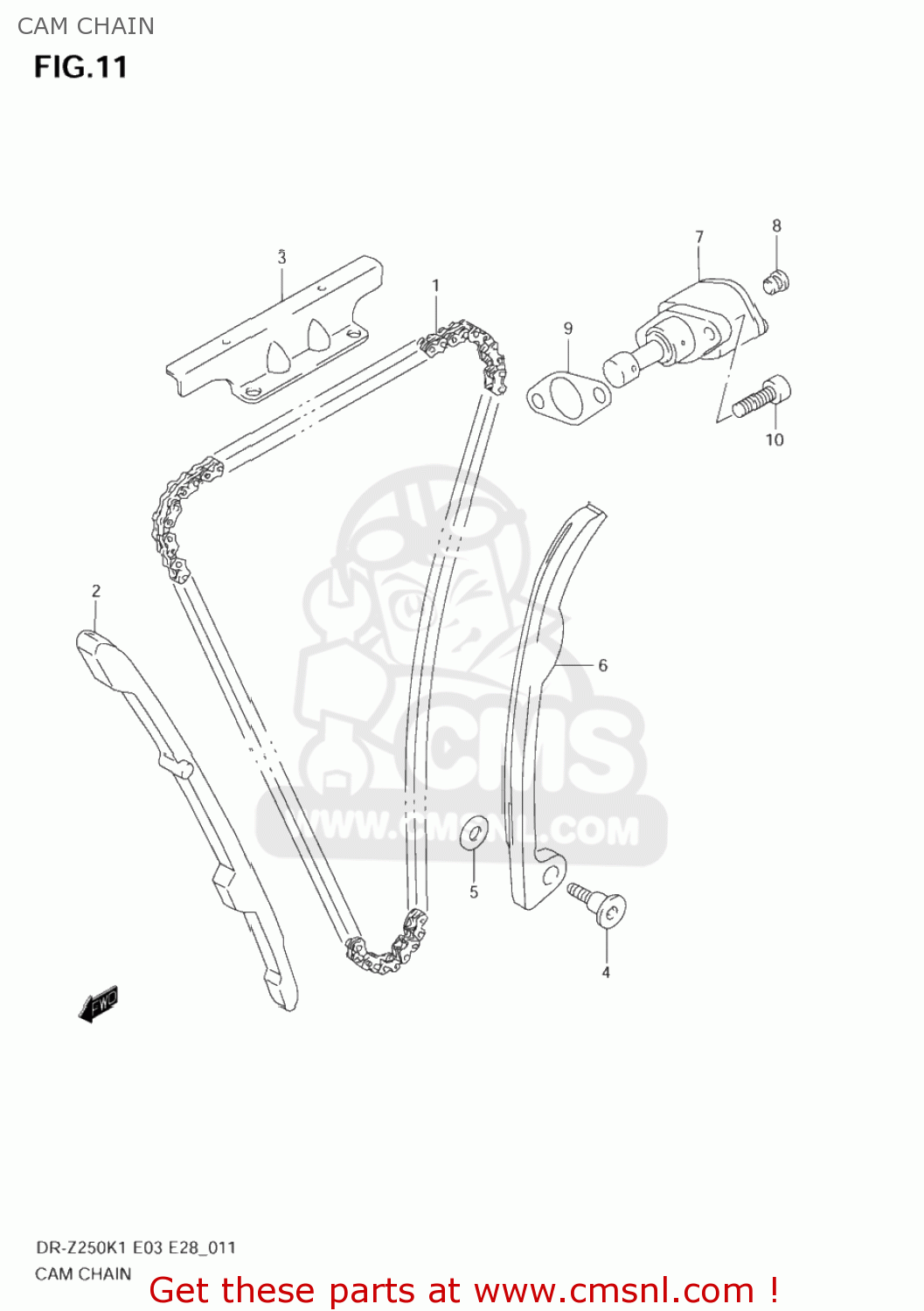

Cam chain diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

CAM CHAIN DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

CAM CHAIN DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

1276013E00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 107.50

2

1277113E00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 36.50

3

1278213E00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 22.00

4

1281235C00
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 7.00

5

0821106181
ref: 5

WASHER

€ 2.00

6

1281113E00
ref: 6

TENSIONER,CAM CHAIN

€ 38.50

7

1283013E00
ref: 7

ADJUSTER ASSY,TENSIONER

€ 82.50

8

1283938200
ref: 8

PLUG,ADJUSTER

€ 2.00

9

1283731320
ref: 9

GASKET,TENSIONER ADJUSTER (NAS)

€ 5.00

10

0713006203
ref: 10
07130-0620B

BOLT,CRKCASE,R

€ 3.00
