HEADLAMP COVER (MODEL K2/K3/K4/K5)

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

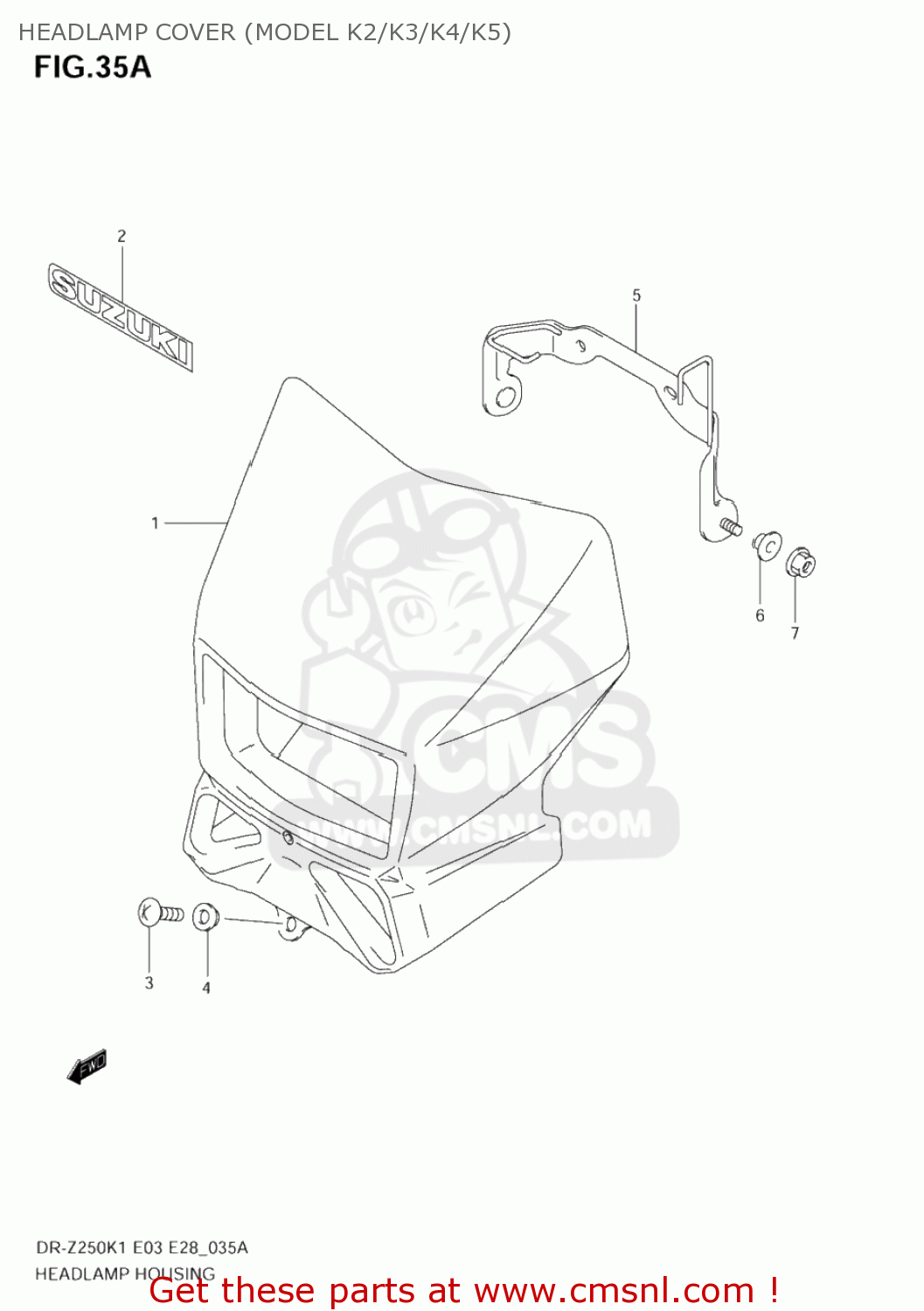

Headlamp cover (model k2/k3/k4/k5) diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

5181029F00YU1
ref: 1-1
51810-29F60-YU1

COVER, HEADLAMP (YELLOW)

€ 0.00

1-2

5181029F0030H
ref: 1-2
51810-29F60-30H

COVER, HEADLAMP (WHITE)

€ 87.00

2-1

6872129F00GY8
ref: 2-1

EMBLEM,SUZUKI

€ 11.00

2-2

6872129F008YM
ref: 2-2

EMBLEM,SUZUKI

€ 11.00

0913605048
ref: 3

SCREW(5X12)

€ 3.00

0916905012
ref: 4

WASHER

€ 3.00

5186013E10
ref: 5

BRACKET,HEADLAMP COVER

€ 0.00

0916906011
ref: 6

WASHER

€ 6.50

0831610063
ref: 7
08316-1006B

NUT

€ 2.50
