FRONT MASTER CYLINDER

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

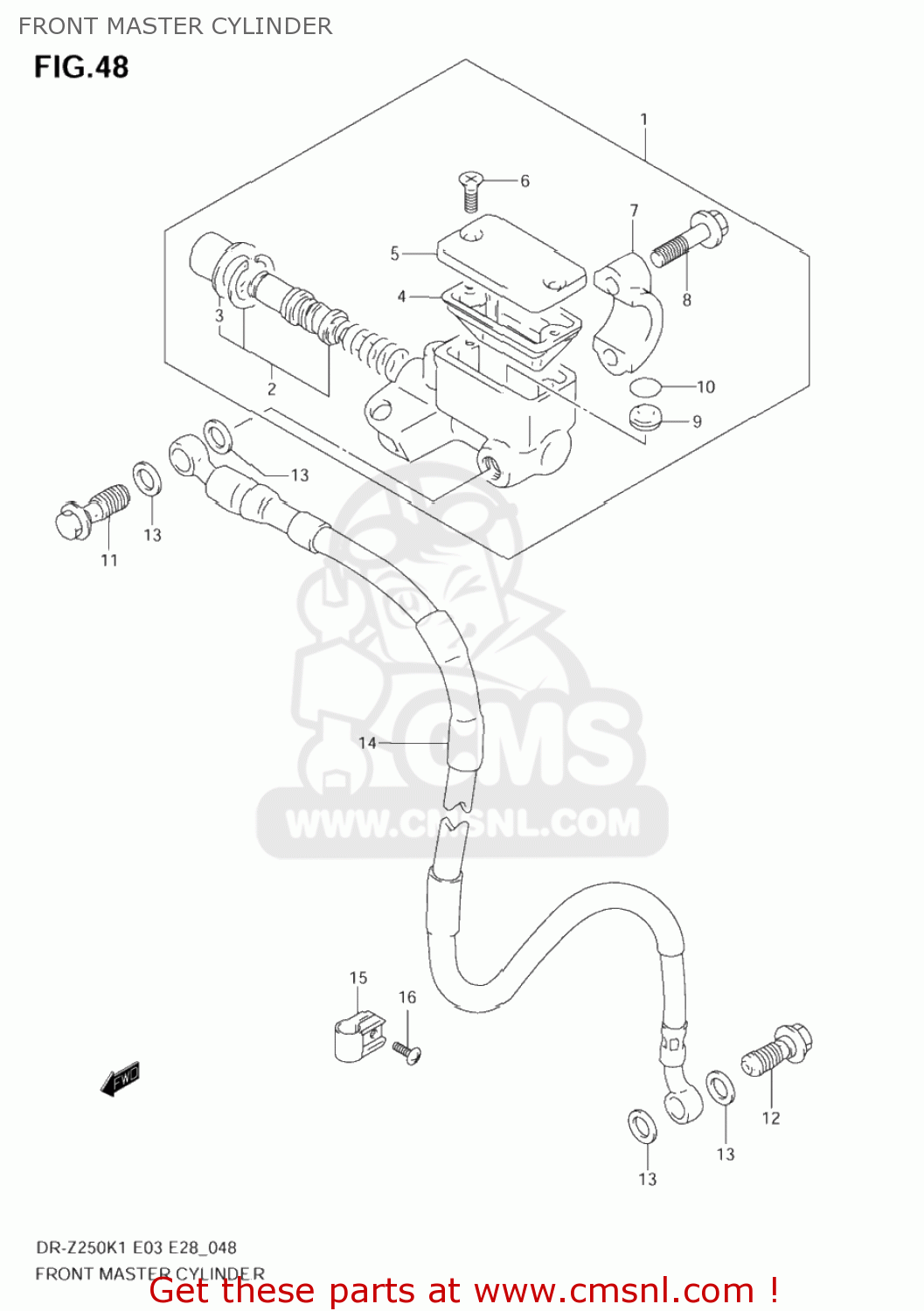

Front master cylinder diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

5960005D01
ref: 1

CYLINDER ASSY,FR MASTER

€ 150.00

5960027820
ref: 2

PISTON & CUP SET

€ 30.00

5966644300
ref: 3

BOOT

€ 6.00

5966724500
ref: 4

DIAPHRAGM

€ 11.50

5966905D00
ref: 5

CAP

€ 13.50

6968949300
ref: 6

SCREW

€ 1.50

5967127C00
ref: 7

HOLDER

€ 9.50

5967527C00
ref: 8

BOLT

€ 2.50

5974836E00
ref: 9

SEPARATOR

€ 5.00

6974436E00
ref: 10

RING

€ 2.00

0936010041
ref: 11
09360-10061

BOLT UNION

€ 6.50

0936010041
ref: 11
09360-10061

BOLT UNION

€ 6.50

0936010042
ref: 12
09360-10062

BOLT UNION

€ 5.00

0916110009
ref: 13

WASHER(10X15X1.5)

€ 2.00

5948013E40
ref: 14
59480-13E41

HOSE, FRONT BRAKE

€ 151.00

5862107A10
ref: 15
58621-07A20

CLAMP,BRAKE HOSE

€ 3.50

0214206163
ref: 16
02142-0616A

SCREW

€ 2.50

FRONT MASTER CYLINDER

all assemblies
