HEADLAMP (MODEL K1)

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

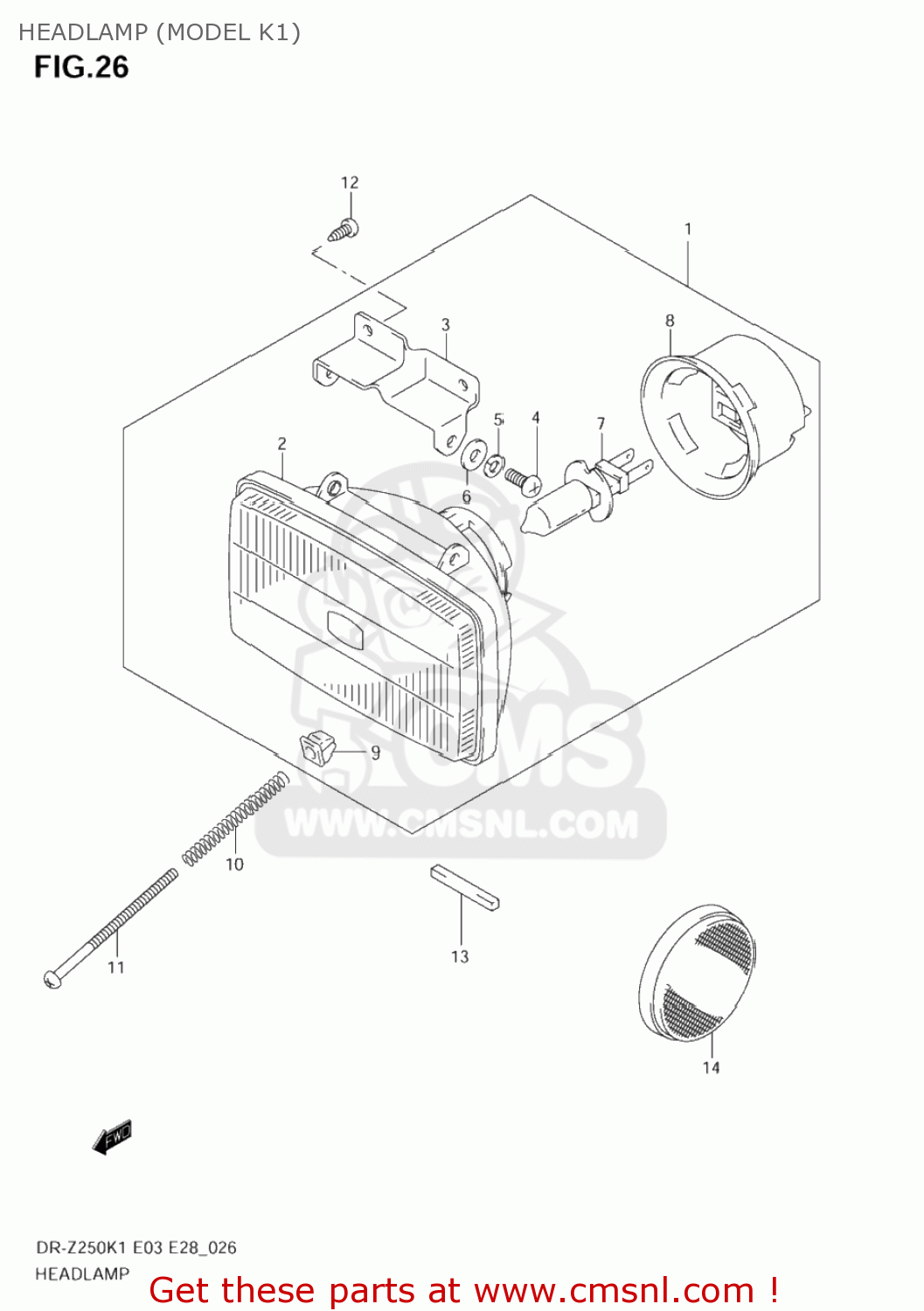

Headlamp (model k1) diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

3510005D10
ref: 1

HEADLAMP ASSY

€ 150.00

3512105D10
ref: 2
35100-05D10

HEADLAMP ASSY

€ 150.00

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

3513616700
ref: 4

SCREW

€ 3.00

0832101057
ref: 5
08321-0105A

WASHER,LOCK

€ 2.00

3513805D00
ref: 6

WASHER

€ 1.50

0947112160
ref: 7

BULB(12V55W)

€ 24.50

3517305D00
ref: 8

COVER,SOCKET

€ 15.00

3513512E20
ref: 9

NUT,ADJUSTING

€ 2.50

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

0912504501
ref: 11

SCREW(4X45)

€ 3.00

0351104103
ref: 12
03511-0410A

SCREW

€ 1.50

3365220C00
ref: 13

PROTECTOR(50X50X5)

€ 2.50

3595014A00
ref: 14

REFLECTOR,REFLEX FR

€ 15.00
