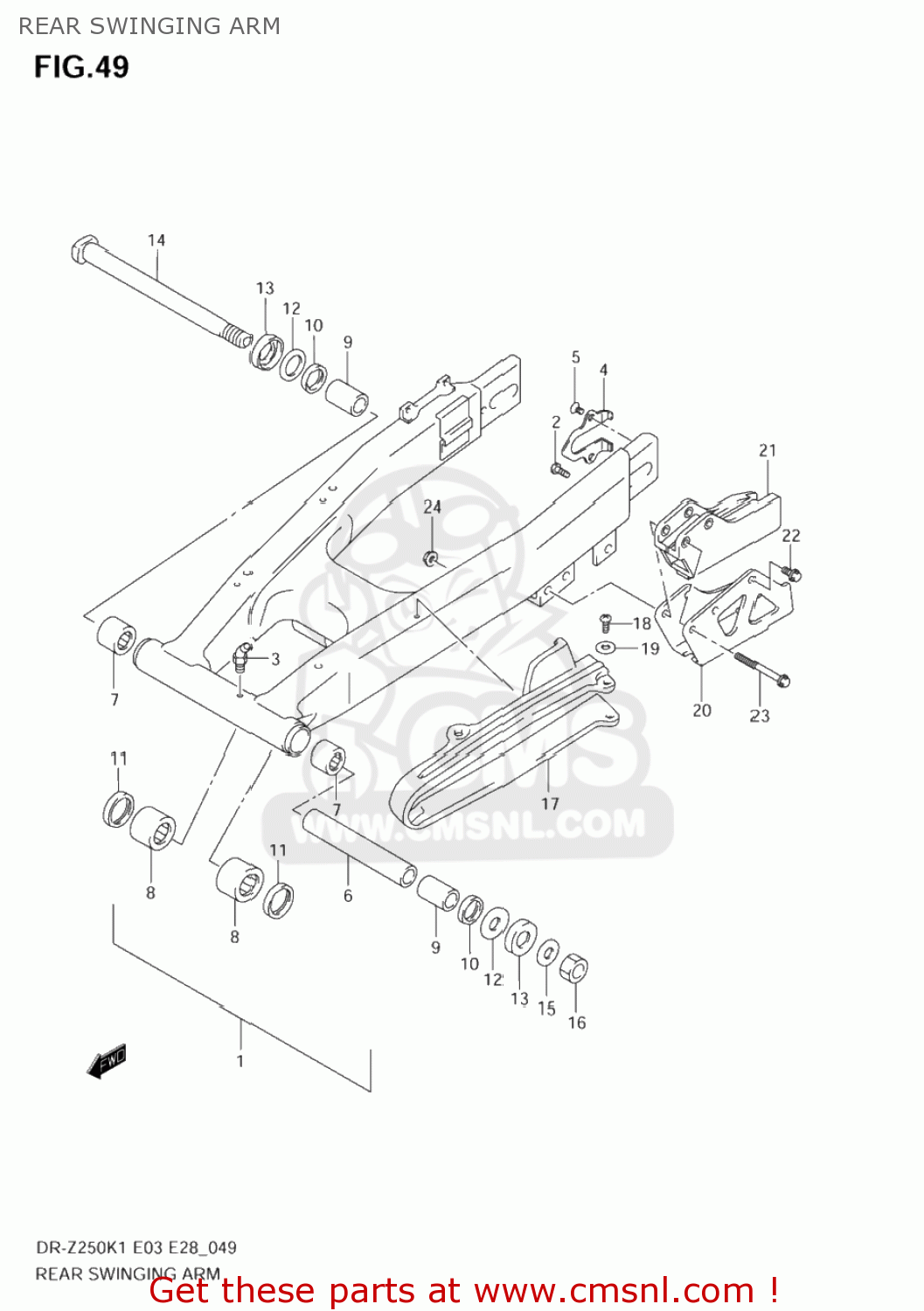

REAR SWINGING ARM

ref

part #

description

quantity

1

6100013E20
ref: 1

SWINGINGARM ASSY,RR

€ 1,102.50

2

6143113E00
ref: 2

STOPPER,CHAIN ADJUSTER

€ 7.00

3

0835131008
ref: 3
08351-3100A

NIPPLE,GREASE

€ 10.50

4

6112829E00
ref: 4

PLATE,RR SWING ARM AXLE

€ 8.50

5

0912605009
ref: 5

SCREW(5X8)

€ 2.50

6

6128213E00
ref: 6

SPACER,SWGARM PIVOT CTR

€ 0.00

7

0926322017
ref: 7

BEARING(22X29X30)

€ 18.50

8

0926320071
ref: 8

BEARING(20X27X23.5)

€ 21.50

9

6125114D00
ref: 9

SPACER,SWGARM PIVOT BRG

€ 11.00

10

0928522001
ref: 10

SEAL,OIL(22X29X4)

€ 5.00

11

0928320031
ref: 11

SEAL,OIL(20X27X5)

€ 5.00

12

0821117341
ref: 12

WASHER

€ 2.00

13

6126228C10
ref: 13

COVER,SWINGINGARM PIVOT

€ 4.50

14

6121113E00
ref: 14

SHAFT,SWINGING ARM PIVOT

€ 0.00

15

0832201163
ref: 15
08322-0116A

WASHER, FIXED DRIVE FACE

€ 2.00

16

0915916007
ref: 16

NUT

€ 10.50

17

6127313E01
ref: 17

BUFFER,CHAIN TOUCH DEFENSE

€ 30.00

18

0214206123
ref: 18
02142-0612A

SCREW 6X12

€ 2.00

19

0916906057
ref: 19

WASHER

€ 4.00

20

6134236E30
ref: 20

PLATE,CHAIN GUIDE

€ 31.00

21

6134136E30
ref: 21
61341-37F00

GUIDE,CHAIN

€ 43.00

22

0154706123
ref: 22
01547-0612B

BOLT

€ 2.00

23

0154706503
ref: 23
01547-0650B

BOLT

€ 3.50

24

0831931063
ref: 24
08319-3106A

NUT

€ 2.50
