AIR CLEANER

AX100 1994 (R) BARBADOS (E94) / P36 P48

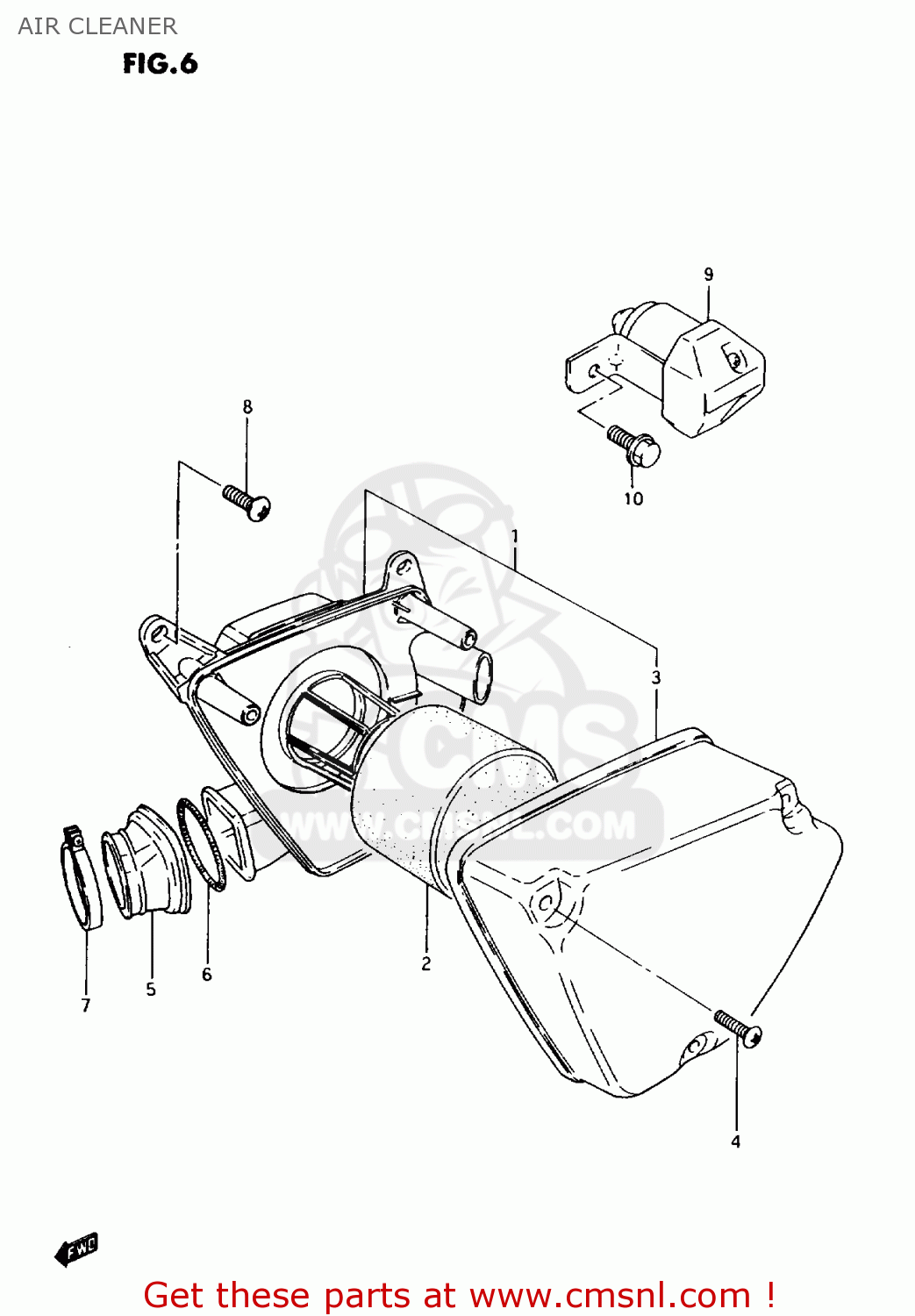

Air cleaner diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

AIR CLEANER AX100 1994 (R) BARBADOS (E94) / P36 P48

AIR CLEANER AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

1370023400
ref: 1

CLEANER ASSY,AIR

€ 0.00

2

1378023401
ref: 2

FILTER,AIR CLEANER

€ 0.00

3

1374023400
ref: 3

CAP

€ 0.00

4

0214205257
ref: 4

SCREW

€ 1.00

5

1388123400
ref: 5

TUBE,OUTLET

€ 0.00

6

1382623400
ref: 6

CLAMP,CLEANER SIDE

€ 0.00

7

0940250306
ref: 7

CLAMP

€ 6.00

8

0913606017
ref: 8

SCREW(6X16)

€ 2.50

9

1577023400
ref: 9
P9

COMPENSATOR ASSY, ALTITUDE

€ 0.00

10

0157006163
ref: 10
P9

BOLT

€ 2.50
