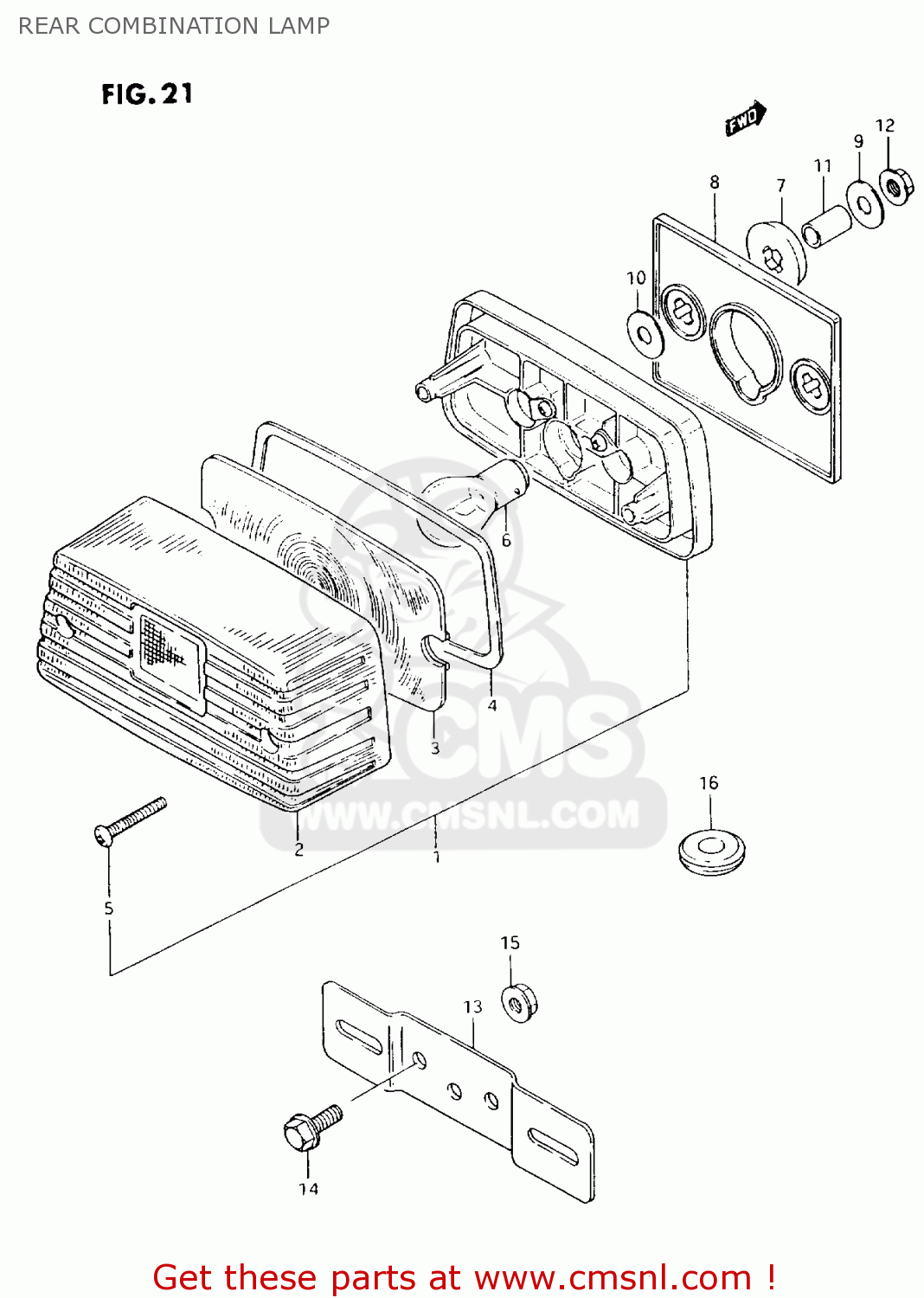

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571023430
ref: 1

LAMP ASSY,RR COMBINATION

€ 60.00

2

3571235350
ref: 2

LENS

€ 25.00

3

3571935340
ref: 3

UNDER LENS

€ 0.00

4

3571335300
ref: 4

GASKET (NAS)

€ 0.00

5

0321204359
ref: 5

SCREW

€ 0.50

6

0947106008
ref: 6

BULB(6V10/3W,STANLEY,A4854H)

€ 4.50

7

3576426451
ref: 7

CUSHION,RR COMBINATION LAMP

€ 0.00

8

3576505300
ref: 8

CUSHION,RR COMB LAMP NO.1

€ 0.00

9-1

0916005011
ref: 9-1
MODEL R/T

WASHER (5.5X20X1.2)

€ 2.00

9-2

0916005501
ref: 9-2
MODEL V

WASHER(5.5X20X1.2)

€ 2.00

10-1

0916005013
ref: 10-1
MODEL R

WASHER(5.2X16X1)

€ 1.50

10-2

0916005037
ref: 10-2
MODEL T/V

WASHER(5.5X16X1.2)

€ 1.50

11-1

0918006011
ref: 11-1
MODEL R

SPACER (6.1X9X9)

€ 2.00

11-2

0918006263
ref: 11-2
MODEL T/V

SPACER(6.5X9X9)

€ 2.00

12

0831620053
ref: 12

NUT

€ 2.00

13

3592736510
ref: 13

BRACKET,PLATE LICENSE

€ 8.50

14

0155006163
ref: 14

BOLT

€ 2.50

15

0831620063
ref: 15

NUT

€ 2.00

16

0930809004
ref: 16

GROMMET

€ 0.00
