REAR FENDER

AX100 1994 (R) BARBADOS (E94) / P36 P48

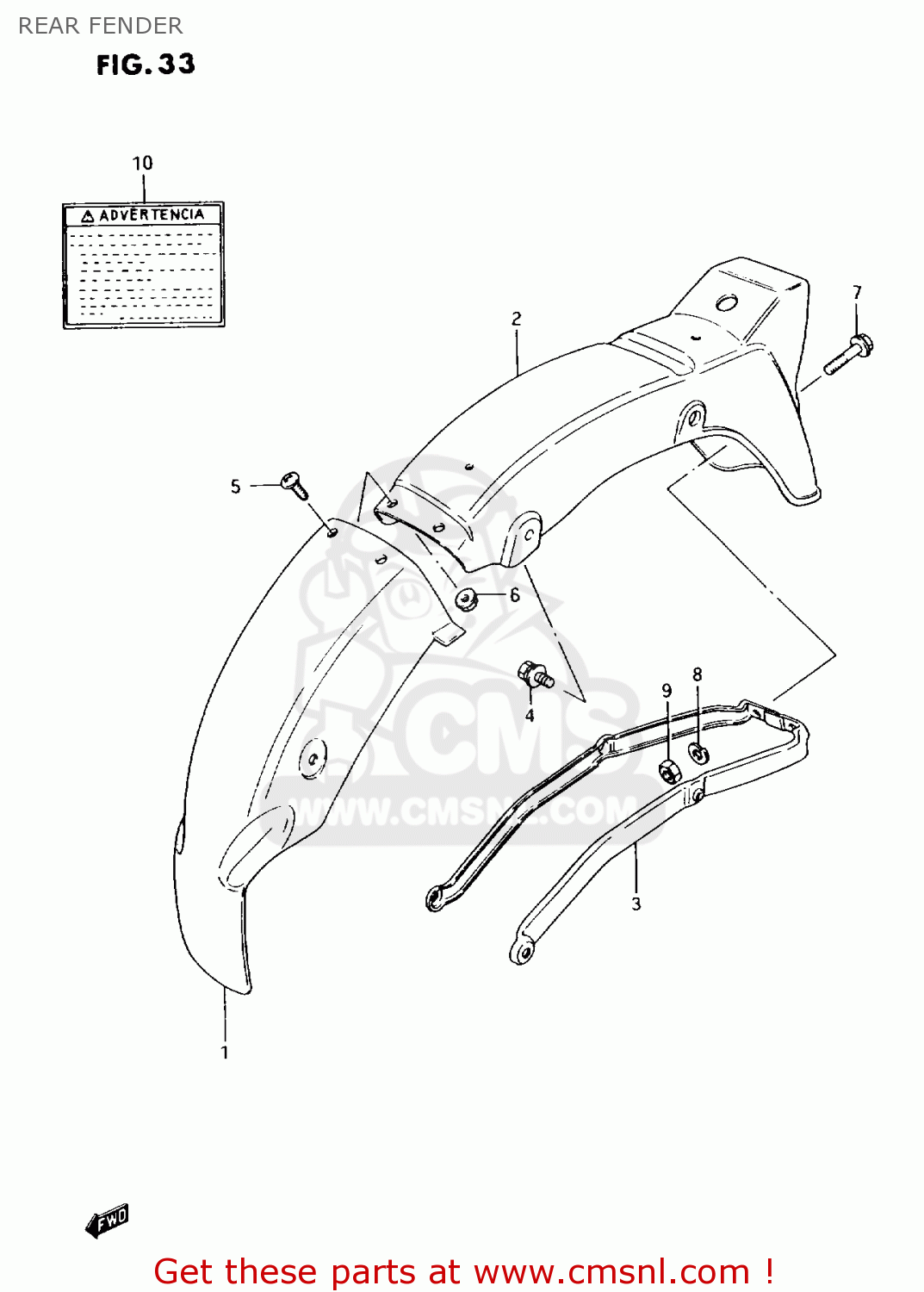

Rear fender diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

6311223450
ref: 1

BODY,RR FENDER FR

€ 0.00

6311323451
ref: 2

FENDER,RR

€ 0.00

6312023450
ref: 3

REINFORCEMENT,RR FENDER

€ 0.00

0158006163
ref: 4

BOLT

€ 2.50

0214206163
ref: 5

SCREW

€ 2.50

0831931067
ref: 6

NUT

€ 2.50

0155008503
ref: 7

BOLT

€ 2.50

0832101083
ref: 8

LOCK WASHER

€ 2.50

9-1

0831000083
ref: 9-1
MODEL R

NUT

€ 1.50

9-2

0831610083
ref: 9-2
MODEL T/V

NUT

€ 3.00

6831933E50
ref: 10

LABEL,WARNING

€ 8.00

11-1

990110464201A
ref: 11-1
MODEL R

MANUAL, OWNER'S

€ 0.00

11-2

9901104642029
ref: 11-2
MODEL R

MANUAL, OWNER'S

€ 0.00

11-3

990110464301S
ref: 11-3
MODEL T DRAWING NOT

MANUAL, OWNER'S

€ 0.00

REAR FENDER

all assemblies
