TURN SIGNAL LAMP (MODEL R E94, P48)

AX100 1994 (R) BARBADOS (E94) / P36 P48

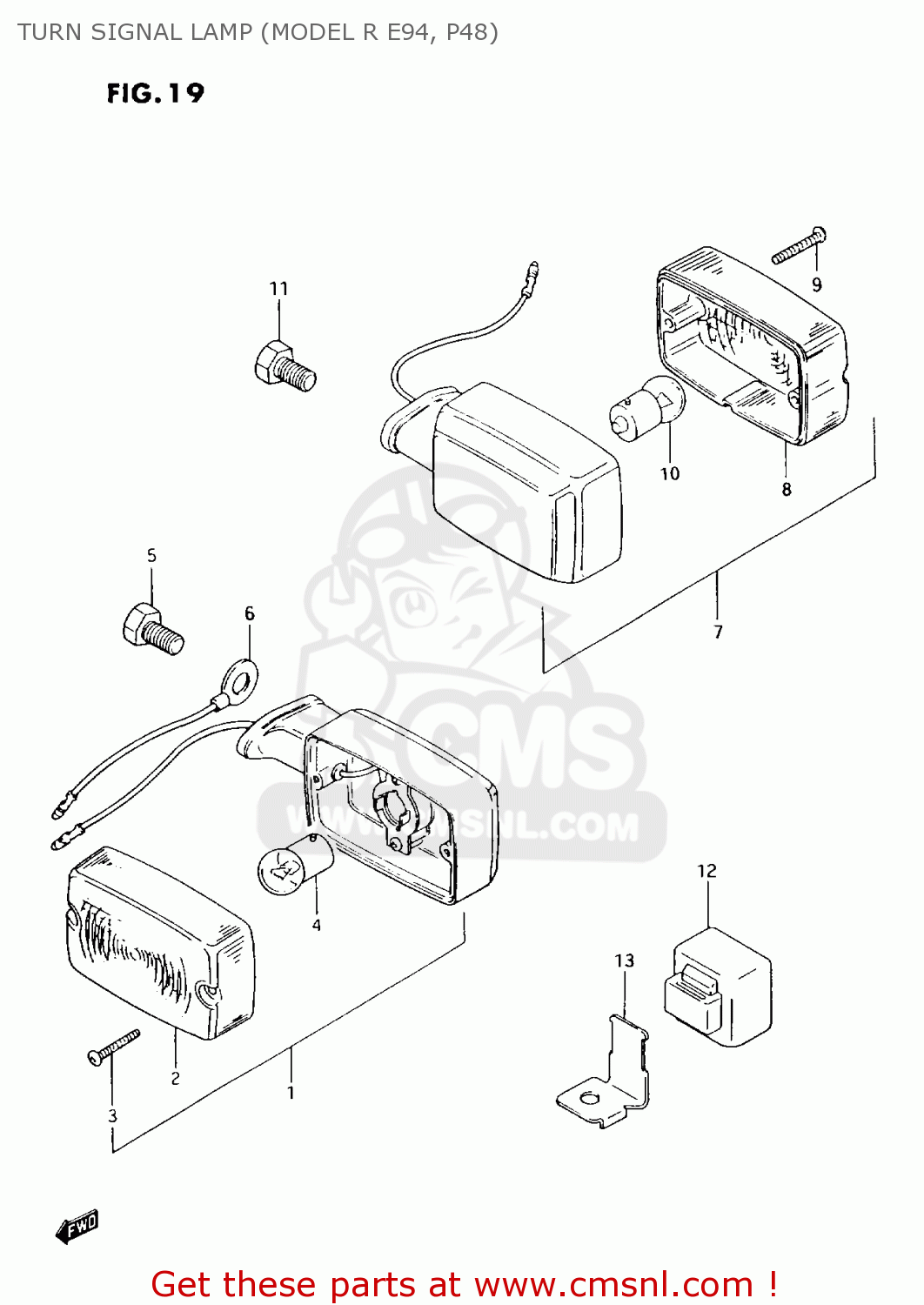

Turn signal lamp (model r e94, p48) diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

TURN SIGNAL LAMP (MODEL R E94, P48) AX100 1994 (R) BARBADOS (E94) / P36 P48

TURN SIGNAL LAMP (MODEL R E94, P48) AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

3560339200999
ref: 1

LAMP ASSY, REAR TURN SIGNAL

€ 2.00

2

3561235300
ref: 2

LENS

€ 7.00

3

0211203258
ref: 3

SCREW

€ 1.50

4

0947106021
ref: 4

BULB(6V8W,STANLEY,A4115)

€ 3.50

5

0157008163
ref: 5

BOLT, UPPER

€ 2.00

6

3666033000
ref: 6

LEAD WIRE,EARTH

€ 5.00

7

3560339200999
ref: 7

LAMP ASSY, REAR TURN SIGNAL

€ 2.00

8

3561235300
ref: 8

LENS

€ 7.00

9

0211203258
ref: 9

SCREW

€ 1.50

10

0947106021
ref: 10

BULB(6V8W,STANLEY,A4115)

€ 3.50

11

0157008163
ref: 11

BOLT, UPPER

€ 2.00

12

3861009400
ref: 12

RELAY,TURN SIGNAL

€ 49.50

13

3862123400
ref: 13

BRACKET,TURN SIGNAL RELAY

€ 0.00
