MAGNETO

AX100 1994 (R) BARBADOS (E94) / P36 P48

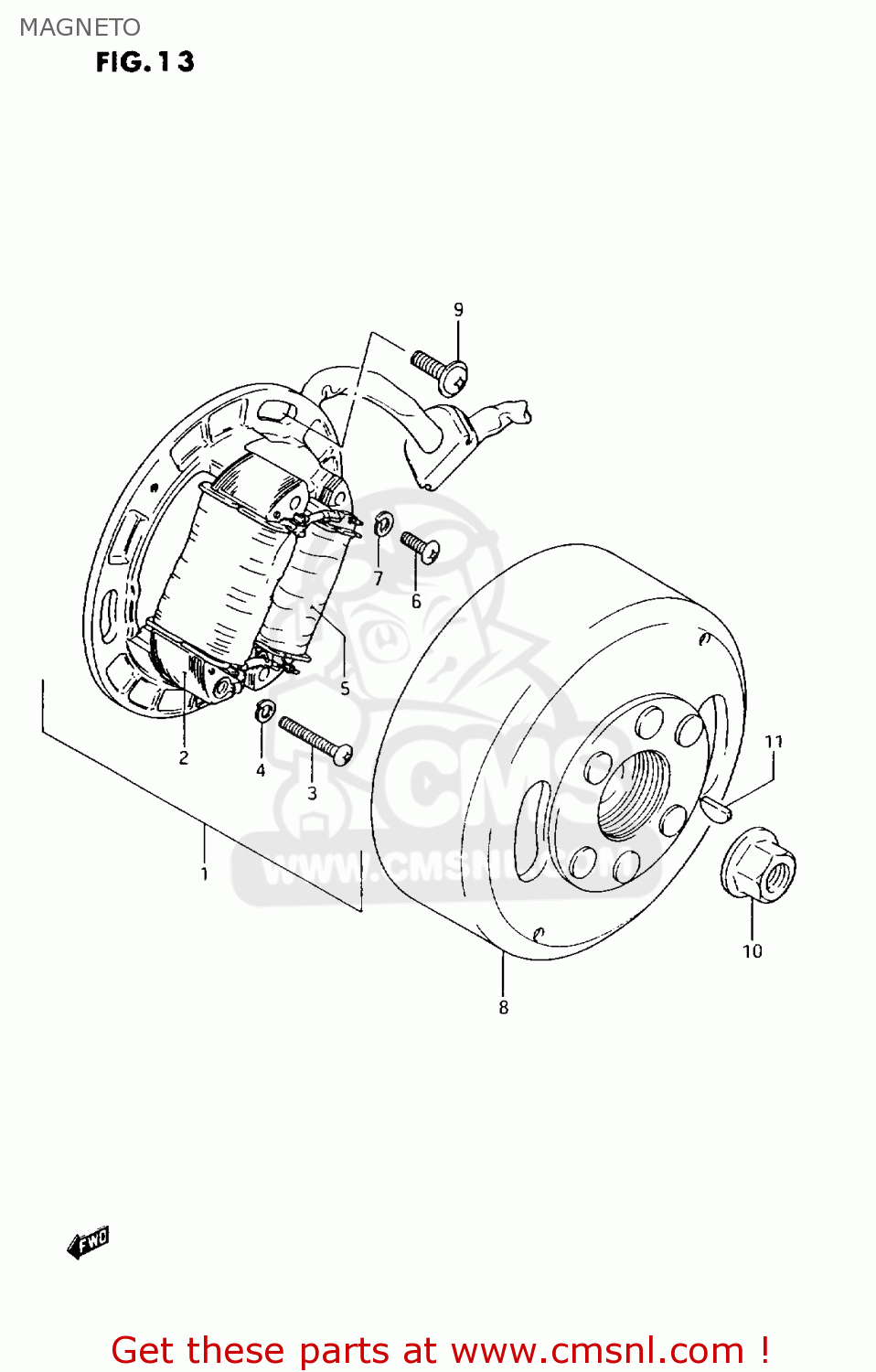

Magneto diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

MAGNETO AX100 1994 (R) BARBADOS (E94) / P36 P48

MAGNETO AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

3210123410
ref: 1

STARTER ASSY

€ 0.00

2

3212048710
ref: 2

COIL,LIGHTING

€ 33.50

3

0912504023
ref: 3

SCREW(4X30)

€ 1.50

4

0832101043
ref: 4

WASHER,LOCK

€ 2.00

5

3214035410
ref: 5

COIL,PRIMARY

€ 58.50

6

0211204163
ref: 6

SCREW 4X16

€ 1.00

7

0832101043
ref: 7

WASHER,LOCK

€ 2.00

8

3210235330
ref: 8

ROTOR, FRYWHEEL

€ 144.50

9

0214205123
ref: 9

SCREW 5X12

€ 1.50

10

0831610103
ref: 10

NUT

€ 2.00

11

0834131039
ref: 11

KEY

€ 2.00
