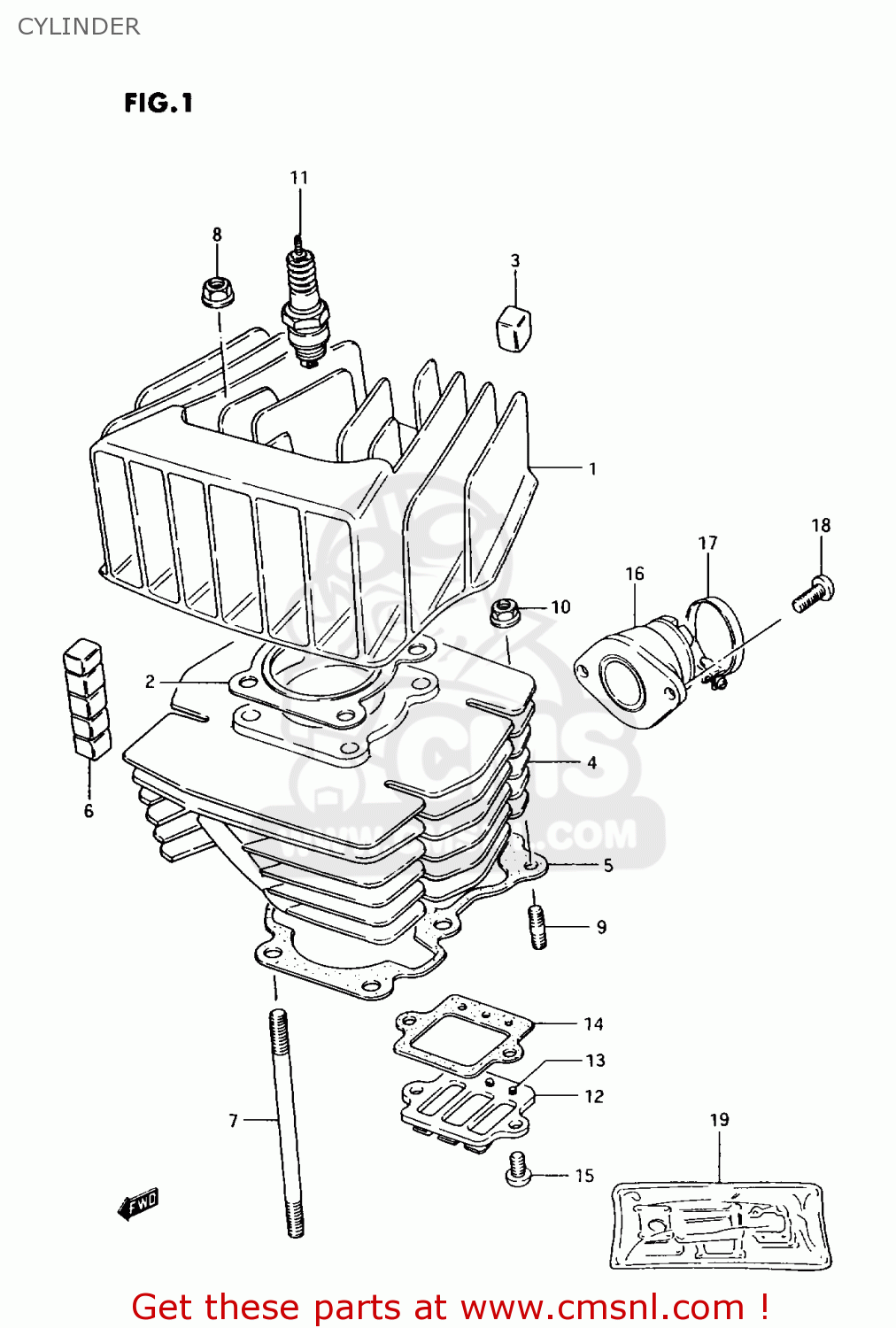

CYLINDER

ref

part #

description

quantity

1-1

1111123402
ref: 1-1

HEAD,CYLINDER

€ 0.00

1-2

1111123411
ref: 1-2
P36

CYLINDER HEAD

€ 0.00

2

1114123400
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 9.50

3-1

1115140900
ref: 3-1

PAD,CYLINDER HEAD

€ 4.00

3-2

1125130530
ref: 3-2
P36

PAD,CYLINDER

€ 6.00

4-1

11210234020F0
ref: 4-1

CYLINDER

€ 0.00

4-2

11210234110F0
ref: 4-2
P36

CYLINDER

€ 0.00

5

1124123410
ref: 5

GASKET, CYLINDER (NAS)

€ 7.00

6-1

1125130530
ref: 6-1

PAD,CYLINDER

€ 6.00

6-2

1125136500
ref: 6-2
P36

PAD,CYLINDER

€ 6.50

7-1

0910808056
ref: 7-1

BOLT,STUD

€ 4.50

7-2

0910808112
ref: 7-2
P36

BOLT,STUD

€ 0.00

8

0831610083
ref: 8

NUT

€ 3.00

9

0142106168
ref: 9

STUD 6X16

€ 2.00

10

0831610063
ref: 10

NUT

€ 2.50

11-1

0948200091
ref: 11-1

PLUG,SPARK

€ 3.00

11-2

0948200092
ref: 11-2

PLUG,SPARK(W24ES)

€ 3.50

11-3

0948200139
ref: 11-3
P36

PLUG,SPARK(BP7ES)

€ 4.00

11-4

0948200194
ref: 11-4
P36

SPARK PLUG (ND, W22EPU)

€ 0.00

12

1315023400
ref: 12

VALVE ASSY,REED

€ 0.00

13

0211203083
ref: 13

SCREW

€ 1.50

14

1315623411
ref: 14

GASKET,REED VALVE (NAS)

€ 0.00

15

0211206123
ref: 15

SCREW

€ 1.50

16-1

1311023400
ref: 16-1
MODEL R

PIPE, INTAKE

€ 0.00

16-2

1311023401
ref: 16-2
MODEL T/V

PIPE,INTAKE

€ 0.00

17

0940236306
ref: 17

CLAMP

€ 4.50

18

0211236163
ref: 18

SCREW

€ 2.50

19

1140023842
ref: 19
OPT

GASKET SET (NAS)

€ 0.00

all assemblies
