FRAME COVER (MODEL R)

AX100 1994 (R) BARBADOS (E94) / P36 P48

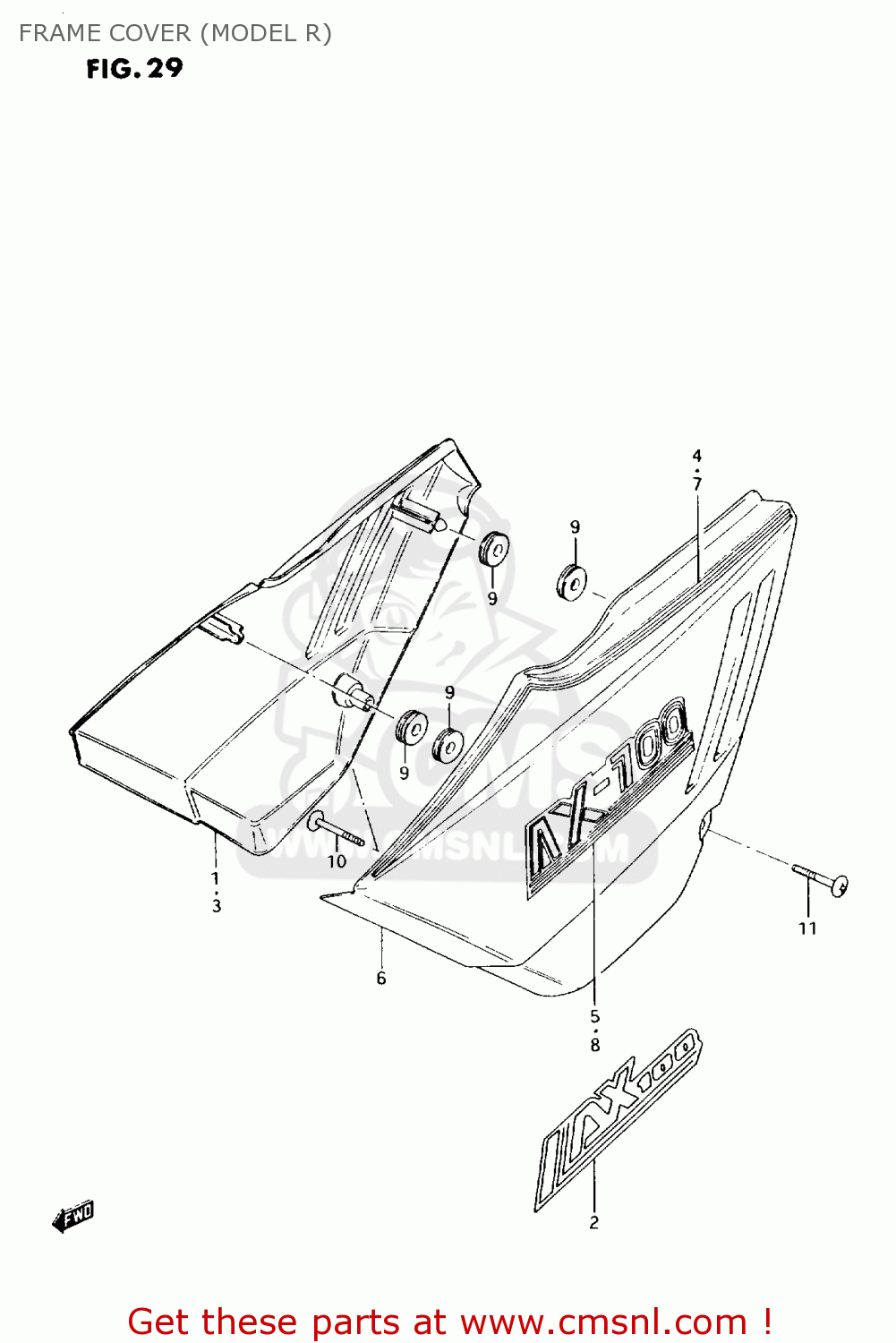

Frame cover (model r) diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

4711123400
ref: 1

COVER,FRAME,R

€ 0.00

6813123450C5W
ref: 2

EMBLEM

€ 0.00

4711123400
ref: 3
P36, PURCHASE LOCALL

COVER,FRAME,R

€ 0.00

4-1

681302340074W
ref: 4-1
P36, FOR 0NF

TAPE SET, FRAME COVER RH

€ 0.00

4-2

681302340090H
ref: 4-2
P36, FOR 14C

TAPE SET, FRAME COVER RH

€ 0.00

5-1

681312340090J
ref: 5-1
P36, FOR 0NF

EMBLEM,FRAME COVER

€ 10.50

5-2

681312340090K
ref: 5-2
P36, FOR 14C

EMBLEM

€ 0.00

4721123400
ref: 6

COVER,FRAME,L

€ 0.00

7-1

681402340074W
ref: 7-1
P36, FOR 0NF

TAPE SET, FRAME COVER LH

€ 0.00

7-2

681402340090H
ref: 7-2
P36, FOR 14C

TAPE SET, FRAME COVER LH

€ 0.00

8-1

681312340090J
ref: 8-1
P36, FOR 0NF

EMBLEM,FRAME COVER

€ 10.50

8-2

681312340090K
ref: 8-2
P36, FOR 14C

EMBLEM

€ 0.00

0932008018
ref: 9

CUSHION

€ 4.00

0214206453
ref: 10

SCREW

€ 2.00

0912506042
ref: 11

SCREW(6X45)

€ 0.00
