REAR SWINGING ARM (P36)

AX100 1994 (R) BARBADOS (E94) / P36 P48

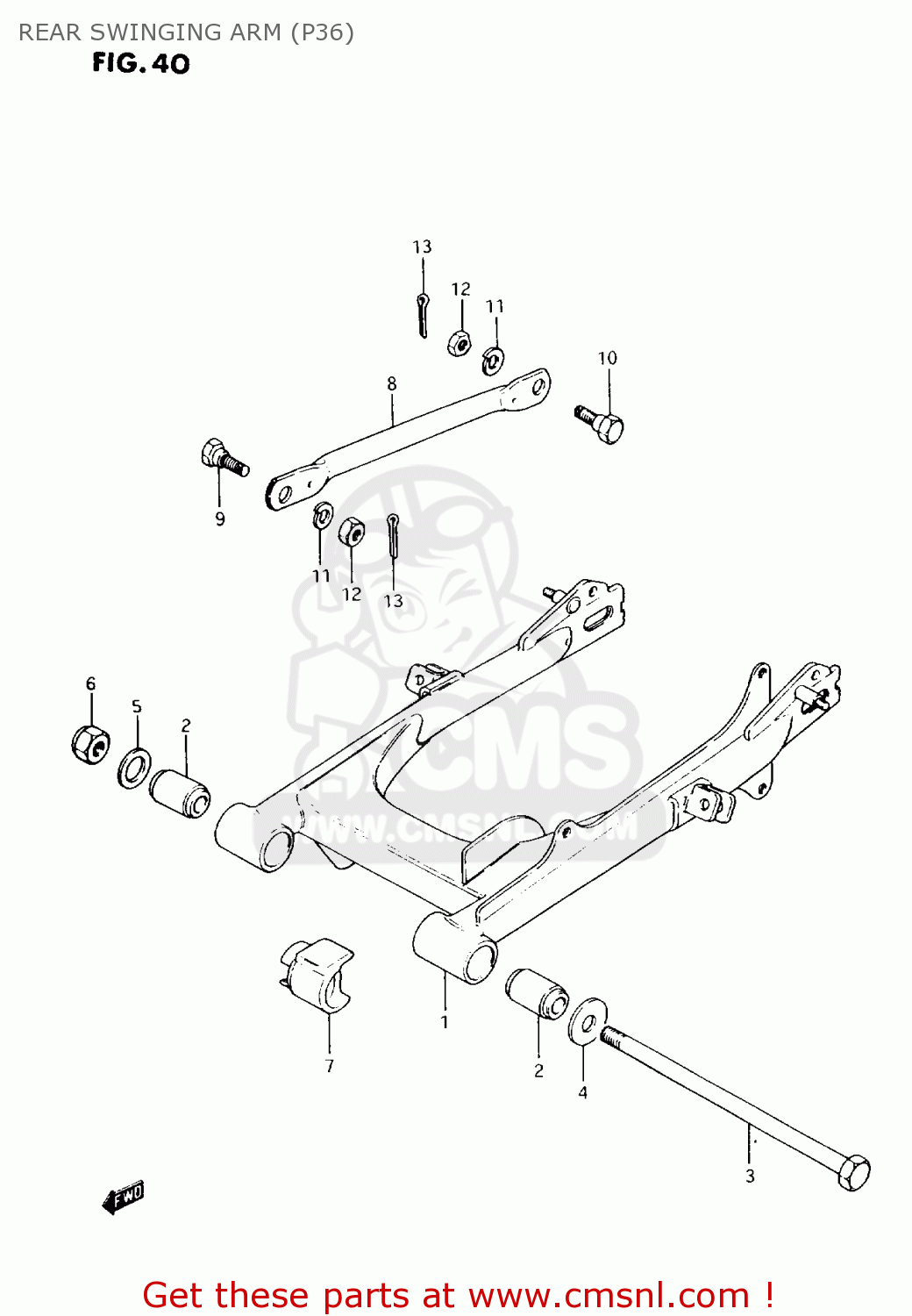

Rear swinging arm (p36) diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

REAR SWINGING ARM (P36) AX100 1994 (R) BARBADOS (E94) / P36 P48

REAR SWINGING ARM (P36) AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

6110023833019
ref: 1

SWINGING ARM SET (BLACK)

€ 0.00

2

0931912018
ref: 2

BUSH(12X24X44)

€ 9.00

3

6121139002
ref: 3

SHAFT,RR SWINGINGARM PIVOT

€ 15.00

4

0916012001
ref: 4

WASHER(12.5X32X2.3)

€ 2.50

5

0832201127
ref: 5

WASHER

€ 2.00

6

0831921128
ref: 6

NUT 12MM

€ 4.00

7

6127323400
ref: 7

BUFFER,DEFENSE

€ 0.00

8

6431023450019
ref: 8

TORQUELINK,RR

€ 0.00

9

0911108012
ref: 9

BOLT(8X22.5)

€ 3.00

10

0911108057
ref: 10

BOLT(8X22.5)

€ 0.00

11

0916208008
ref: 11

WASHER,LOCK

€ 2.00

12

0914008008
ref: 12

NUT

€ 1.50

13

0411120208
ref: 13

PIN 20X20

€ 1.50
