CARBURETOR
AX100 1994 (R) BARBADOS (E94) / P36 P48

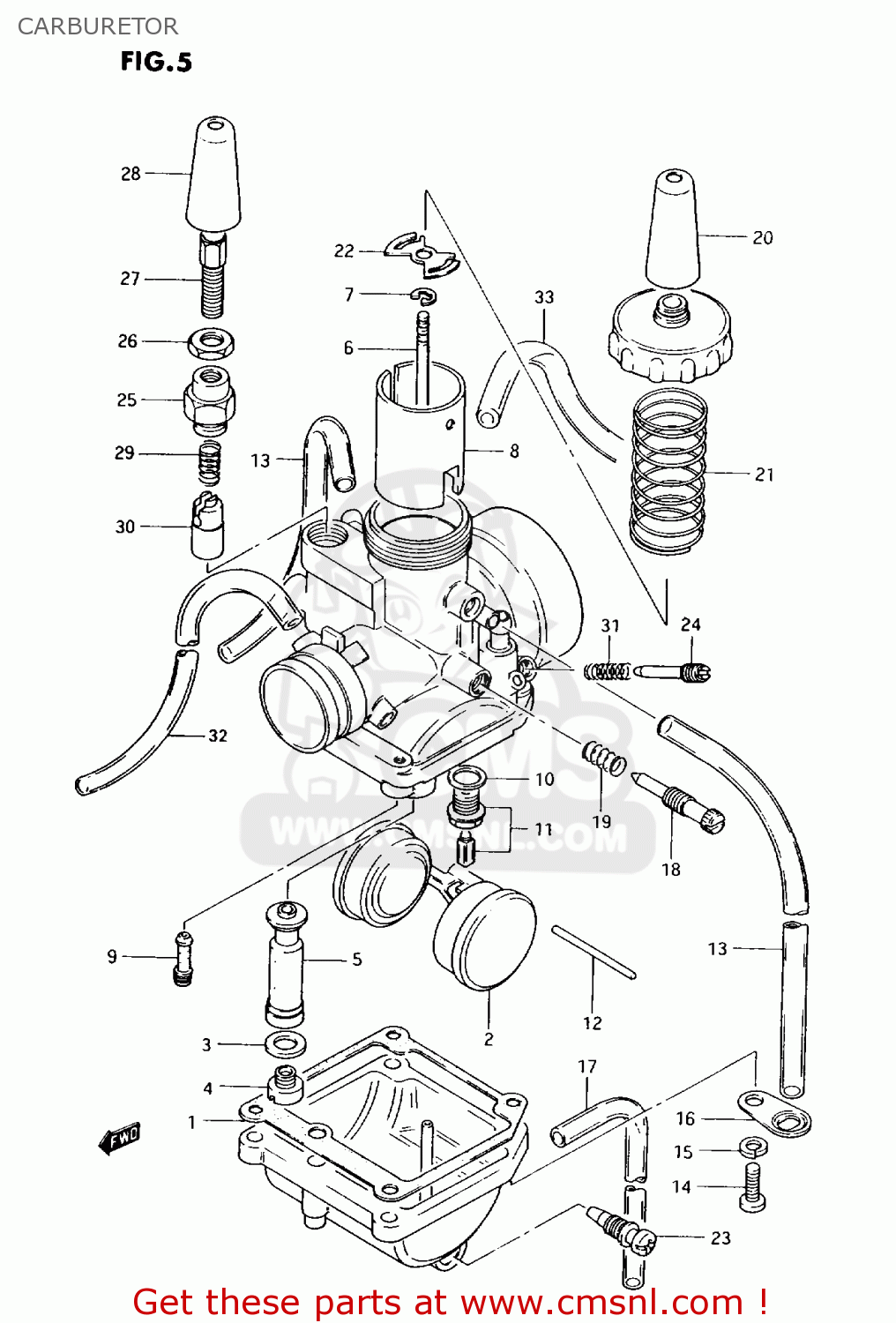

Carburetor diagram AX100 1994 (R) BARBADOS (E94) / P36 P48
CARBURETOR AX100 1994 (R) BARBADOS (E94) / P36 P48
×
prices are in EUR
ref
part #
description
quantity
0
1320023411
ref: 0
CARBURETOR ASSY
€ 0.00
0
1320023421
ref: 0
P9
CARBURETOR ASSY
€ 0.00
0
1320023441
ref: 0
P36
CARBURETOR ASSY
€ 0.00
0
1320023401
ref: 0
P48
CARBURETOR ASSY
€ 135.00
1
1325123010
ref: 1
GASKET,FLOAT CHAMBER (NAS)
€ 4.50
2
1325004700
ref: 2
FLOAT
€ 21.50
3
1333244080
ref: 3
WASHER,NEEDLE NOZZLE
€ 2.50
4-1
0949190007
ref: 4-1
JET,MAIN(90)
€ 10.50
4-2
0949195005
ref: 4-2
P9
JET,MAIN(95)
€ 8.50
4-3
0949192004
ref: 4-3
P48
JET,MAIN(92.5)
€ 8.50
5-1
0949400408
ref: 5-1
JET,NEEDLE(O-8)
€ 0.00
5-2
0949400418
ref: 5-2
P9
JET,NEEDLE(O-8)
€ 0.00
5-3
0949400470
ref: 5-3
P36
JET, NEEDLE (0-0)
€ 0.00
6-1
1338323400
ref: 6-1
NEEDLE,JET
€ 0.00
6-2
1338323440
ref: 6-2
P36
NEEDLE,JET
€ 0.00
7
1339410010
ref: 7
CLIP
€ 4.50
8-1
1355123400
ref: 8-1
VALVE,THROTTLE(CA:1.5)
€ 0.00
8-2
1355123440
ref: 8-2
P36
THROTTLE VALVE (CA:2.0)
€ 0.00
9-1
0949230002
ref: 9-1
JET,PILOT
€ 8.00
9-2
0949215007
ref: 9-2
P36
JET,PILOT(15)
€ 8.50
9-3
0949220008
ref: 9-3
P9, P48
JET,PILOT 20
€ 10.00
10
1339201010
ref: 10
GASKET,NEEDLE VALVE (NAS)
€ 2.50
11
1337023010
ref: 11
VALVE ASSY,NEEDLE
€ 34.00
12
1325401010
ref: 12
PIN,FLOAT
€ 3.00
13
0935230503600
ref: 13
L:600->200
HOSE(3X5X600)
€ 8.00
14-1
1360104148
ref: 14-1
SCREW
€ 2.50
14-2
0211204163
ref: 14-2
P9, P36
SCREW 4X16
€ 1.00
15
0832101043
ref: 15
P9, P36
WASHER,LOCK
€ 2.00
16
1369330010
ref: 16
PLATE
€ 4.00
17
1368440A00
ref: 17
L:650->160
HOSE(3X5X650)
€ 7.50
18
1326795110
ref: 18
SCREW,THROTTLE STOP
€ 6.00
19
1326848700
ref: 19
SPRING,THROTTLE SCREW
€ 3.50
20
1368133010
ref: 20
CAP,CABLE ADJUSTER
€ 8.00
21
1357336110
ref: 21
SPRING,THROTTLE VALVE
€ 3.00
22
1358109210
ref: 22
STOPPER,NEEDLE CLIP
€ 5.50
23-1
1324713A00
ref: 23-1
SCREW,DRAIN
€ 5.50
23-2
1324702340
ref: 23-2
P9, P36
PLUG,DRAIN
€ 5.50
24
1326946010
ref: 24
SCREW,PILOT AIR
€ 8.50
25
1341803110
ref: 25
CAP,STARTER PLUNGER
€ 6.50
26
1366116600
ref: 26
NUT
€ 5.00
27
1357722600
ref: 27
ADJUSTER,CABLE
€ 6.00
28
1368133010
ref: 28
CAP,CABLE ADJUSTER
€ 8.00
29
1341701010
ref: 29
SPRING
€ 3.50
30
1341101010
ref: 30
PLUNGER,STARTER
€ 14.00
31
1326801010
ref: 31
SPRING
€ 3.50
32
0935525705600
ref: 32
P9, L:600->450
HOSE(2.5X7X600)
€ 11.00
33
0935535755600
ref: 33
P9, L:600->470
HOSE(3.5X7.5X600)
€ 10.00
