CLUTCH
AX100 1994 (R) BARBADOS (E94) / P36 P48

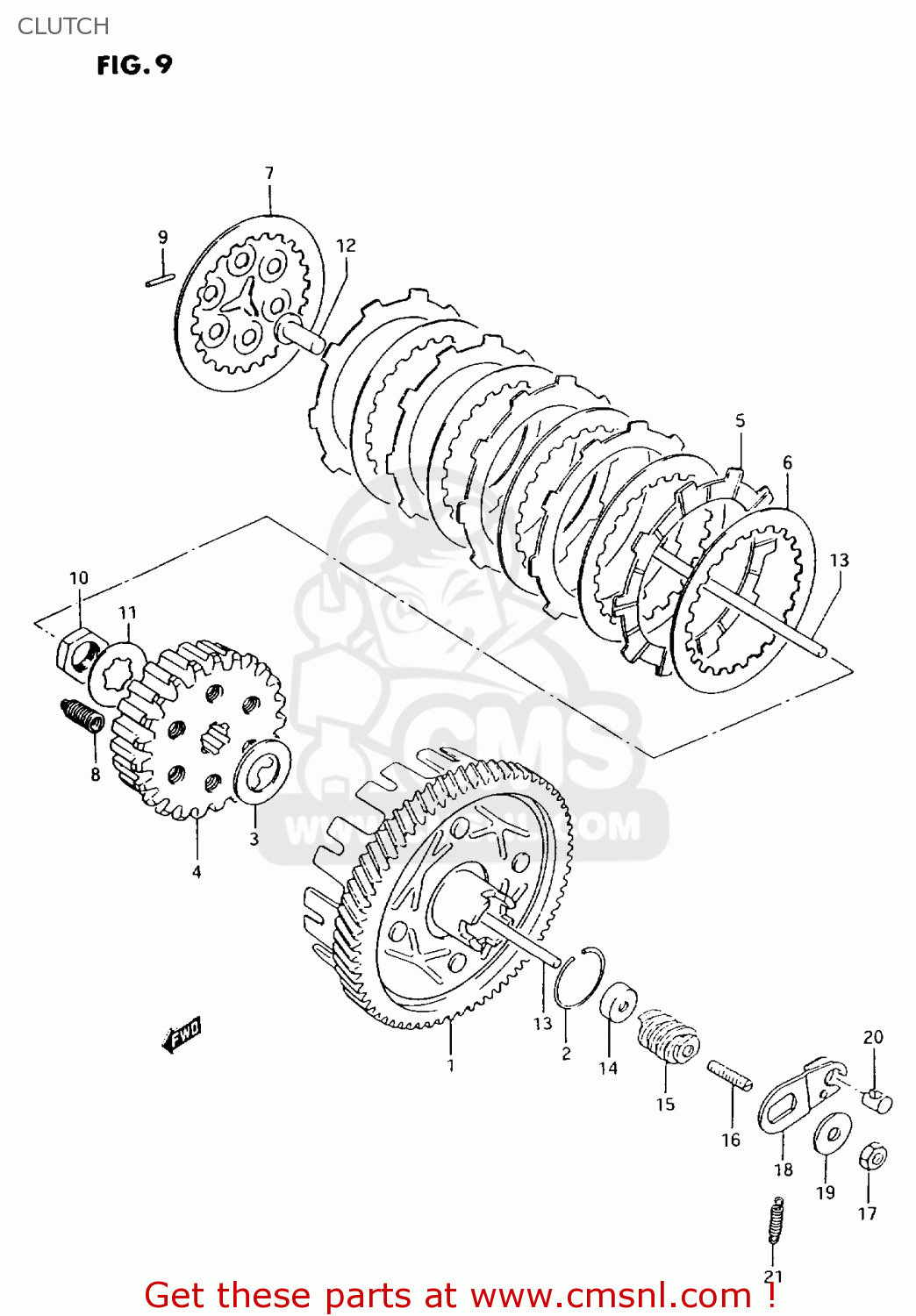

Clutch diagram AX100 1994 (R) BARBADOS (E94) / P36 P48
CLUTCH AX100 1994 (R) BARBADOS (E94) / P36 P48
×
prices are in EUR
ref
part #
description
quantity
1
2120012012
ref: 1
NT:50
GEAR ASSY,PRI DRIVEN
€ 0.00
2
0938030005
ref: 2
CLIP
€ 1.50
3
0821117282
ref: 3
WASHER
€ 3.00
4
2141123010
ref: 4
HUB,CLUTCH SLEEVE
€ 39.00
5
2144112010
ref: 5
PLATE,CLUTCH DRIVE (NA (NAS)
€ 12.00
6
2145123000
ref: 6
PLATE,CLUTCH DRIVEN (NAS)
€ 6.50
7
2146023000
ref: 7
PLATE,CLUTCH PRESSURE
€ 24.00
8
0944312010
ref: 8
SPRING
€ 2.00
9
0926102001
ref: 9
PIN(2.5X19.8)
€ 1.50
10
0914016005
ref: 10
<-09140-16014
NUT
€ 4.50
11
0916717002
ref: 11
WASHER,LOCK
€ 2.00
12
2312109210
ref: 12
PIECE,CLUTCH PUSH
€ 9.00
13
2311112000
ref: 13
ROD,CLUTCH PUSH
€ 6.50
14
0928505004
ref: 14
SEAL,OIL(5.5X16X8)
€ 12.00
15
2321136200
ref: 15
SCREW,CLUTCH RELEASE
€ 20.50
16
0913406010
ref: 16
SCREW(6X25)
€ 3.00
17
0914006023
ref: 17
NUT
€ 2.00
18
2321207202
ref: 18
ARM,CLUTCH RELEASE
€ 9.50
19
0916006066
ref: 19
WASHER(6.5X20X1.6)
€ 2.00
20
2322236A00
ref: 20
<-23222-39300
HOOK,CLUTCH RELEASE SCREW ARM
€ 5.50
21
0944308001
ref: 21
SPRING
€ 3.00
