CENTER STAND
AX100 1994 (R) BARBADOS (E94) / P36 P48

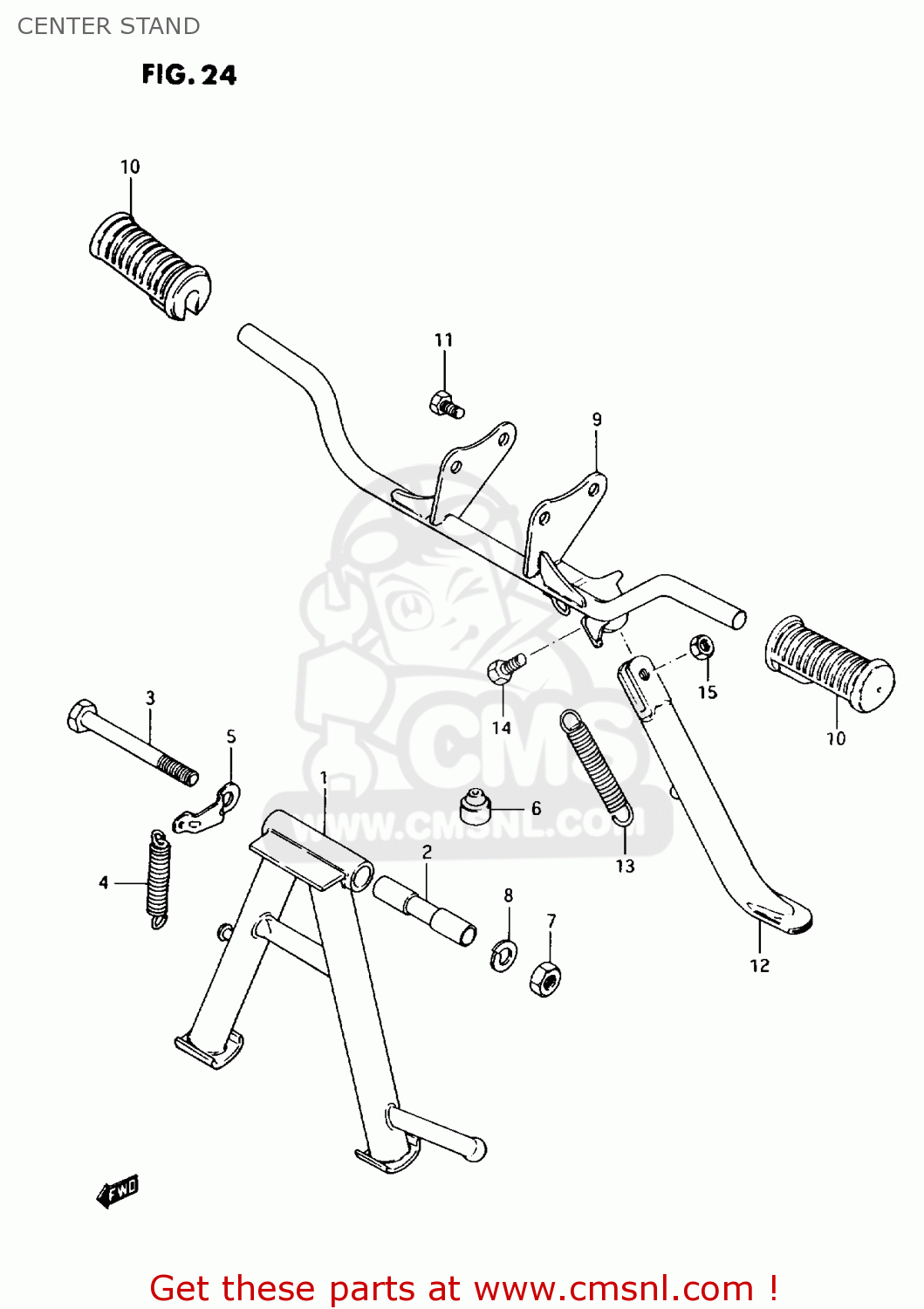

Center stand diagram AX100 1994 (R) BARBADOS (E94) / P36 P48
CENTER STAND AX100 1994 (R) BARBADOS (E94) / P36 P48
×
prices are in EUR
ref
part #
description
quantity
1
4210039311
ref: 1
STAND,CTR
€ 41.50
2
4221103001
ref: 2
SPACER
€ 4.50
3
0910310148
ref: 3
BOLT(10X110)
€ 7.50
4
0944316007
ref: 4
SPRING
€ 12.00
5
4225139000
ref: 5
HOOK,CTR STAND SPRING
€ 5.50
6
0932110001
ref: 6
CUSHION
€ 2.50
7
0831000103
ref: 7
NUT
€ 2.00
8
0832101103
ref: 8
WASHER
€ 3.00
9
4351023455
ref: 9
BAR,FR FOOTREST
€ 53.50
10
4355139100
ref: 10
RUBBER,FR FOOTREST
€ 7.50
11
0157008163
ref: 11
BOLT, UPPER
€ 2.00
12
4231023450
ref: 12
STAND,PROP
€ 0.00
13
0944314017
ref: 13
SPRING
€ 6.50
14
0910010287
ref: 14
BOLT(10X27)
€ 4.50
15
0914010043
ref: 15
NUT
€ 2.00
