SEAT

AX100 1994 (R) BARBADOS (E94) / P36 P48

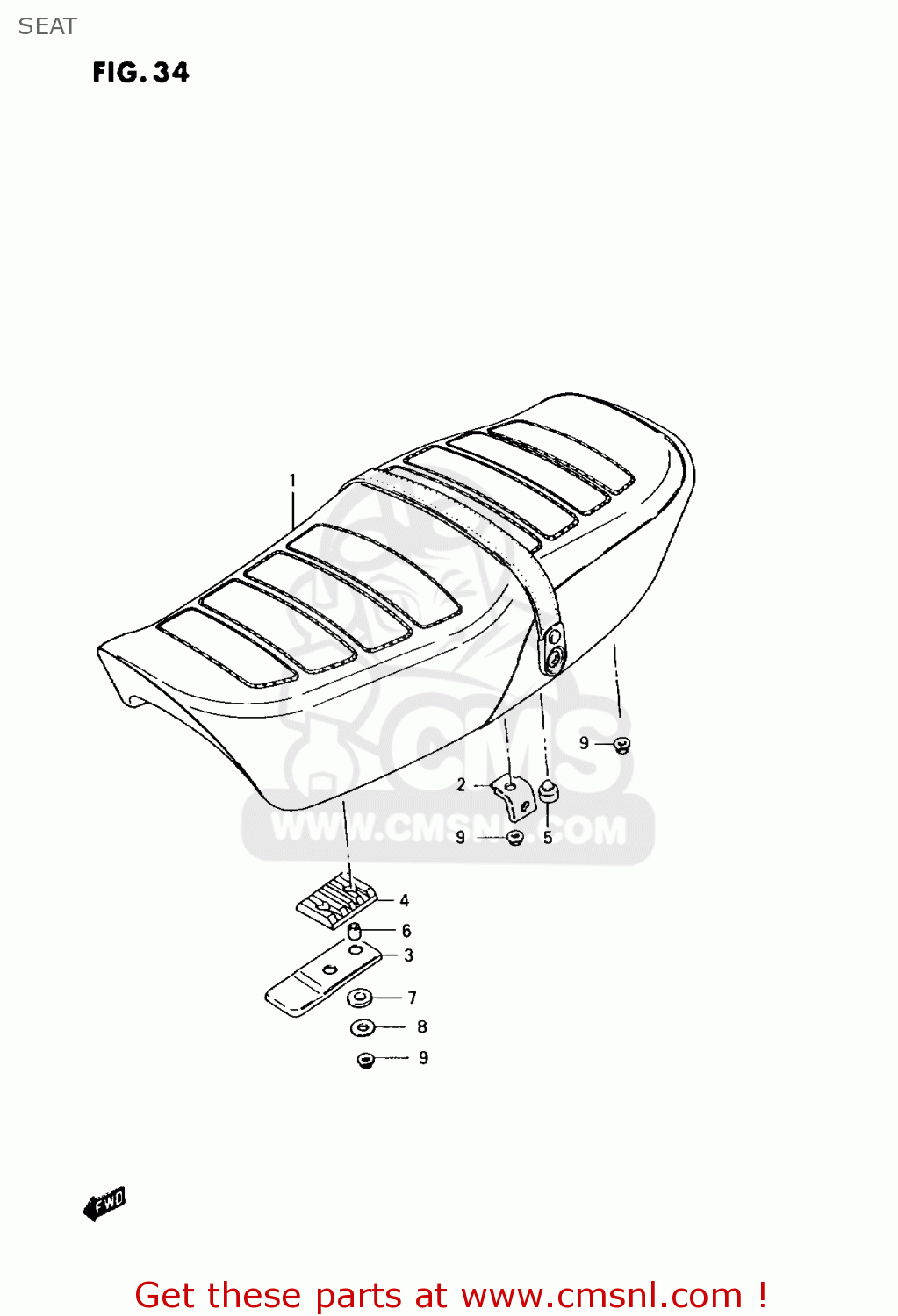

Seat diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

SEAT AX100 1994 (R) BARBADOS (E94) / P36 P48

SEAT AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

451002345148H
ref: 1

SEAT ASSY (BLACK)

€ 0.00

2

4522623450
ref: 2

BRACKET,SEAT CTR

€ 0.00

3

4511923450
ref: 3

PLATE,SEAT HOOK FR

€ 0.00

4

4515023450
ref: 4

CUSHION,FR PLATE

€ 3.00

5

0932110002
ref: 5

CUSHION(11.5X22X20)

€ 2.00

6

4521944B00
ref: 6

SPACER,SEAT BRACKET

€ 0.00

7

4514723450
ref: 7

CUSHION,SEAT FR

€ 1.50

8

0832201063
ref: 8

WASHER

€ 2.00

9

0831931063
ref: 9

NUT

€ 2.50
