AX100 1994 (R) BARBADOS (E94) / P36 P48

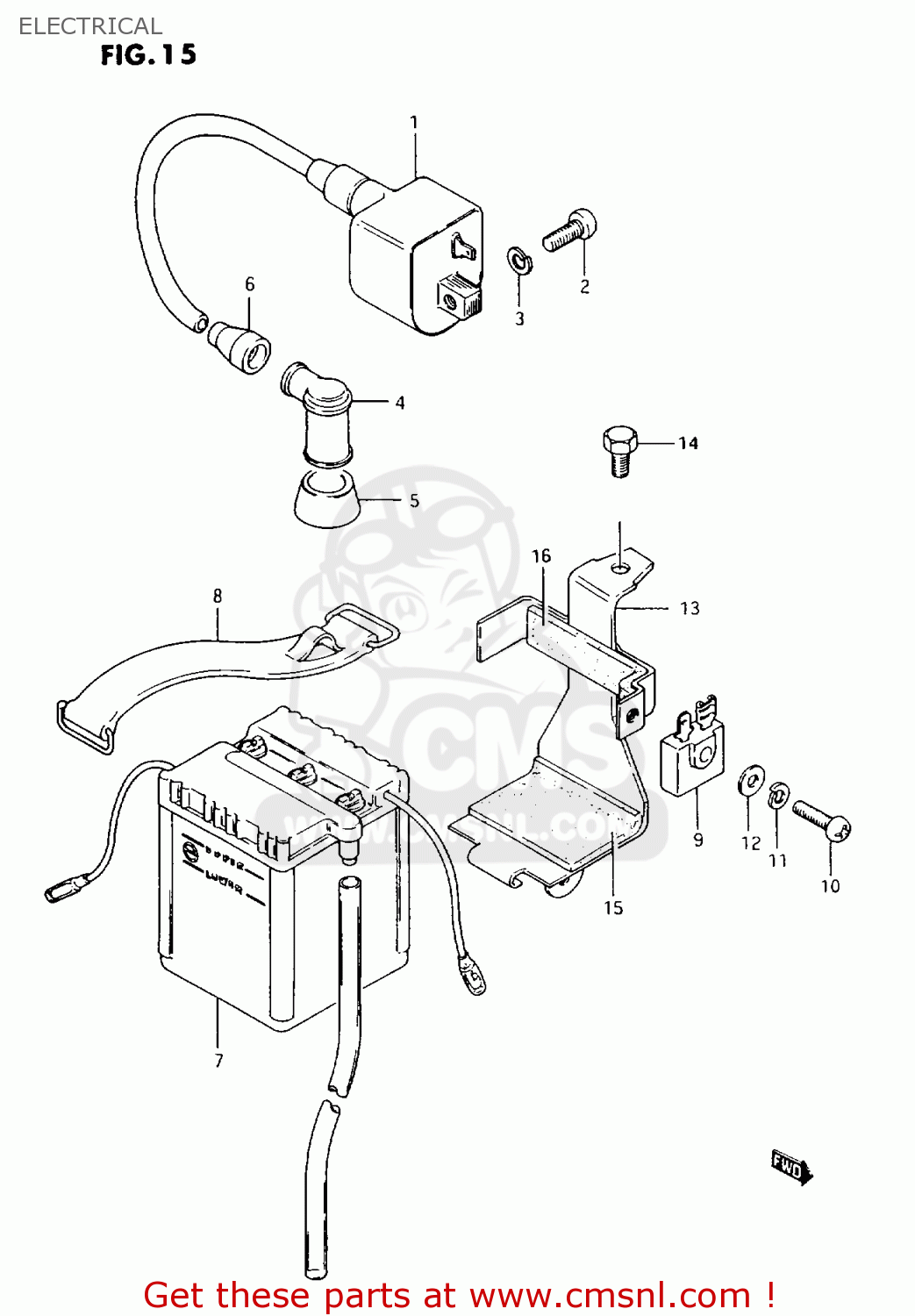

Electrical diagram AX100 1994 (R) BARBADOS (E94) / P36 P48
ELECTRICAL AX100 1994 (R) BARBADOS (E94) / P36 P48
×
prices are in EUR
ref
part #
description
quantity
1
3341048710
ref: 1
UNIT & COIL ASSY,IGNITION
€ 216.00
2
0211206203
ref: 2
SCREW, 6X20
€ 2.00
3
0832101067
ref: 3
WASHER,LOCK
€ 2.50
4
3351022010
ref: 4
CAP ASSY,SPARK PLUG
€ 16.50
5
3354169010
ref: 5
SEAL,SPARK PLUG
€ 5.00
6
3354238B00
ref: 6
SEAL,HIGH TENSION CORD
€ 4.50
7
3361003010
ref: 7
BATTERY ASSY(6N4-2A4.2AH)
€ 42.00
8
3365143200
ref: 8
BAND,BATTERY
€ 0.00
9
3280016A00
ref: 9
RECTIFIER ASSY
€ 10.50
10
0211205207
ref: 10
SCREW
€ 3.00
11
0832101057
ref: 11
WASHER,LOCK
€ 2.00
12
0832201057
ref: 12
WASHER
€ 2.50
13
4154023451
ref: 13
HOLDER,BATTERY
€ 0.00
14
0155006123
ref: 14
BOLT
€ 2.50
15
3365137000
ref: 15
PROTECTOR(170X95X3.0)
€ 5.00
16
3365137000
ref: 16
PROTECTOR(170X95X3.0)
€ 5.00
