HEADLAMP HOUSING - FRONT FENDER

AX100 1994 (R) BARBADOS (E94) / P36 P48

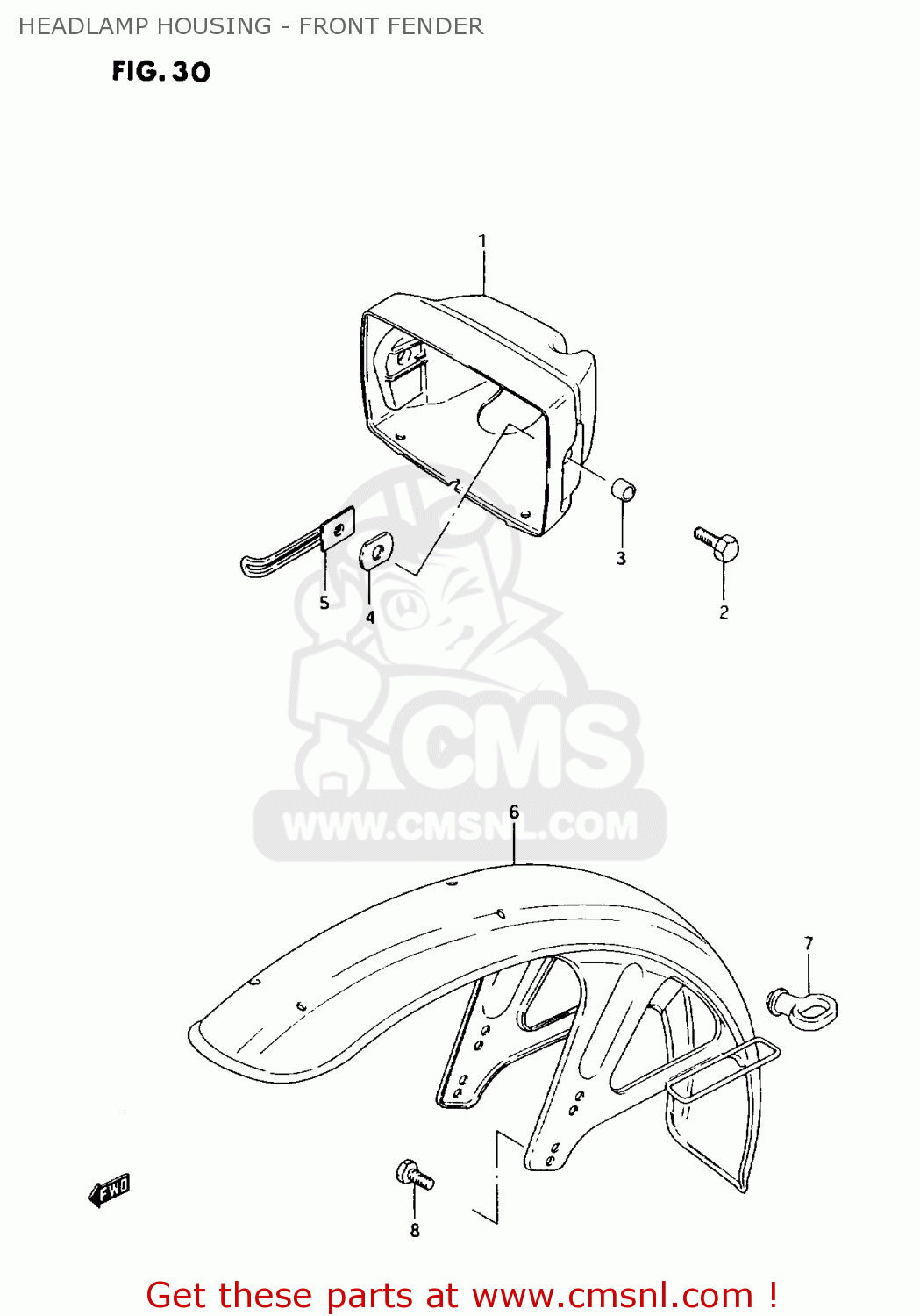

Headlamp housing - front fender diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

HEADLAMP HOUSING - FRONT FENDER AX100 1994 (R) BARBADOS (E94) / P36 P48

HEADLAMP HOUSING - FRONT FENDER AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

5181123451
ref: 1

HOUSING,HEADLAMP

€ 41.50

2

0126408257
ref: 2

BOLT

€ 3.00

3

0918008187
ref: 3

SPACER(8.5X12X7)

€ 3.50

4

0932912002
ref: 4

CUSHION

€ 3.00

5

5186045000
ref: 5

PLATE,HEADLAMP HOUSING

€ 2.00

6

5311023490
ref: 6

FENDER, FRONT

€ 0.00

7

5862121203A
ref: 7

GUIDE,CABLE

€ 7.50

8

0157006103
ref: 8

BOLT

€ 2.50
