HEADLAMP

AX100 1994 (R) BARBADOS (E94) / P36 P48

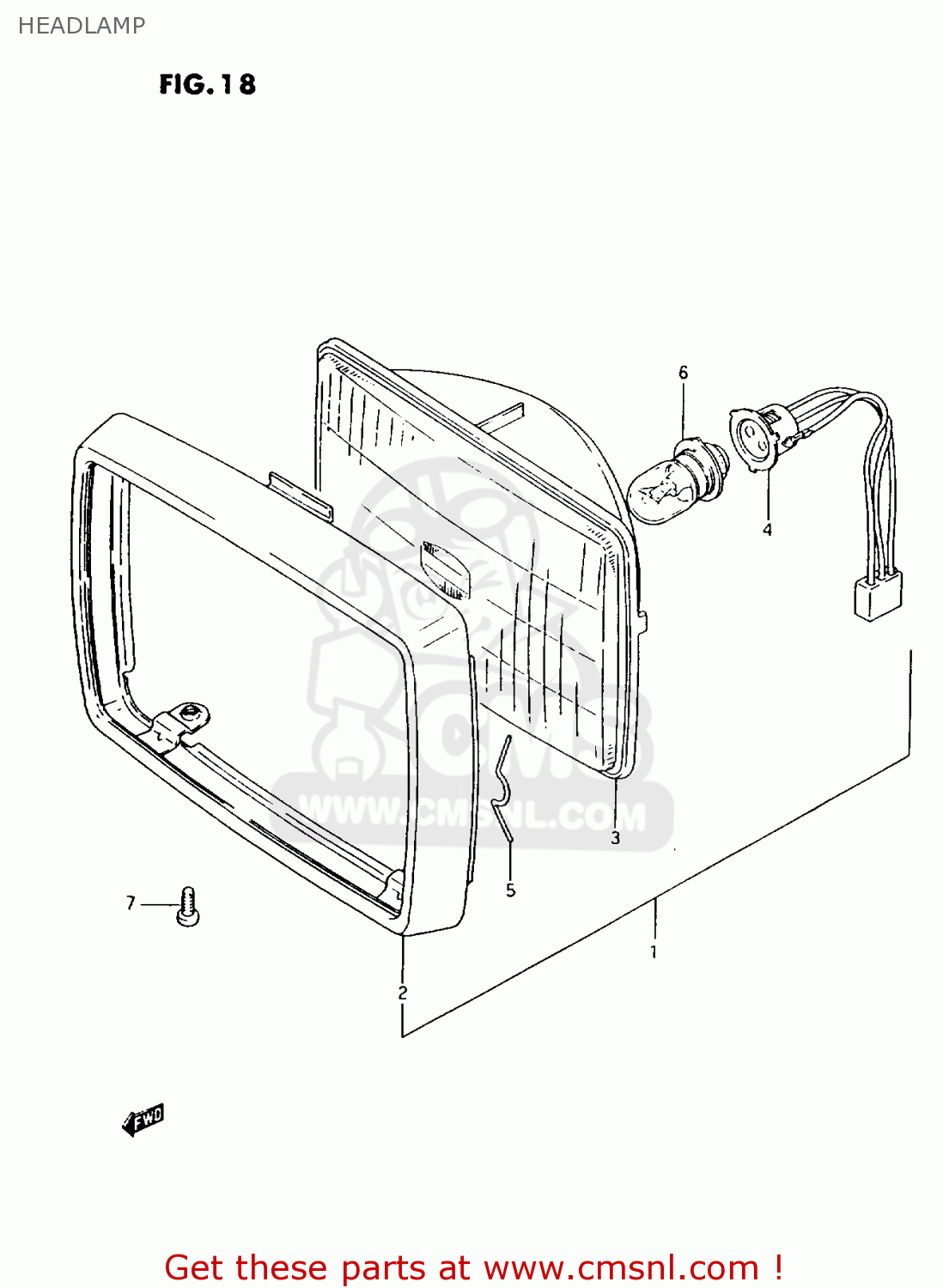

Headlamp diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

HEADLAMP AX100 1994 (R) BARBADOS (E94) / P36 P48

HEADLAMP AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

3510023400999
ref: 1

HEADLAMP ASSY

€ 0.00

2

3511123400
ref: 2

RIM,HEAD LAMP

€ 37.50

3

3512123400
ref: 3

LAMP UNIT

€ 0.00

4

3517148700
ref: 4
<-35171-23400

SOCKET

€ 0.00

5

3517233630
ref: 5

SPRING

€ 4.00

6

0947106072
ref: 6
<-09471-06015

BULB(6V,25/25W,A3627)

€ 7.50

7

0211275123
ref: 7

SCREW

€ 2.50
