ELECTRICAL (P36)

AX100 1994 (R) BARBADOS (E94) / P36 P48

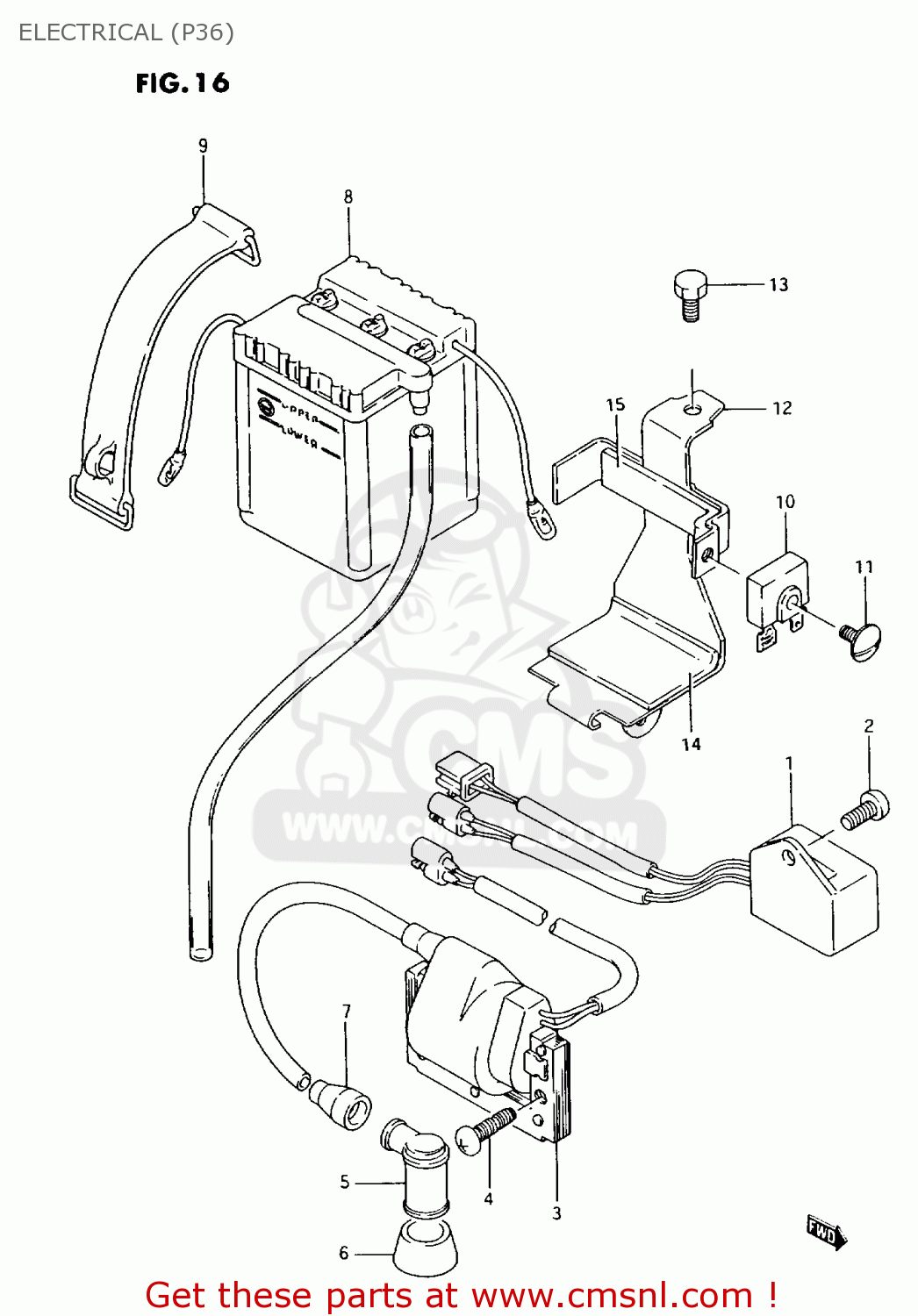

Electrical (p36) diagram AX100 1994 (R) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

3290023420
ref: 1

CDI UNIT

€ 0.00

0211206123
ref: 2

SCREW

€ 1.50

3341023420
ref: 3

COIL ASSY,IGNITION

€ 0.00

0912906003
ref: 4

SCREW(6X21)

€ 2.00

3351022010
ref: 5

CAP ASSY,SPARK PLUG

€ 16.50

3354169010
ref: 6

SEAL,SPARK PLUG

€ 5.00

3354238B00
ref: 7
<-33542-98000

SEAL,HIGH TENSION CORD

€ 4.50

3361003010
ref: 8

BATTERY ASSY(6N4-2A4.2AH)

€ 42.00

3365143200
ref: 9

BAND,BATTERY

€ 0.00

3280016A00
ref: 10

RECTIFIER ASSY

€ 10.50

0912505043
ref: 11

SCREW(5X18)

€ 0.00

4154023451
ref: 12

HOLDER,BATTERY

€ 0.00

0155006123
ref: 13

BOLT

€ 2.50

3365137000
ref: 14

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 15

PROTECTOR(170X95X3.0)

€ 5.00

ELECTRICAL (P36)

all assemblies
