AIR CLEANER

GS1100GK 1983 (D) GENERAL EXPORT (E01)

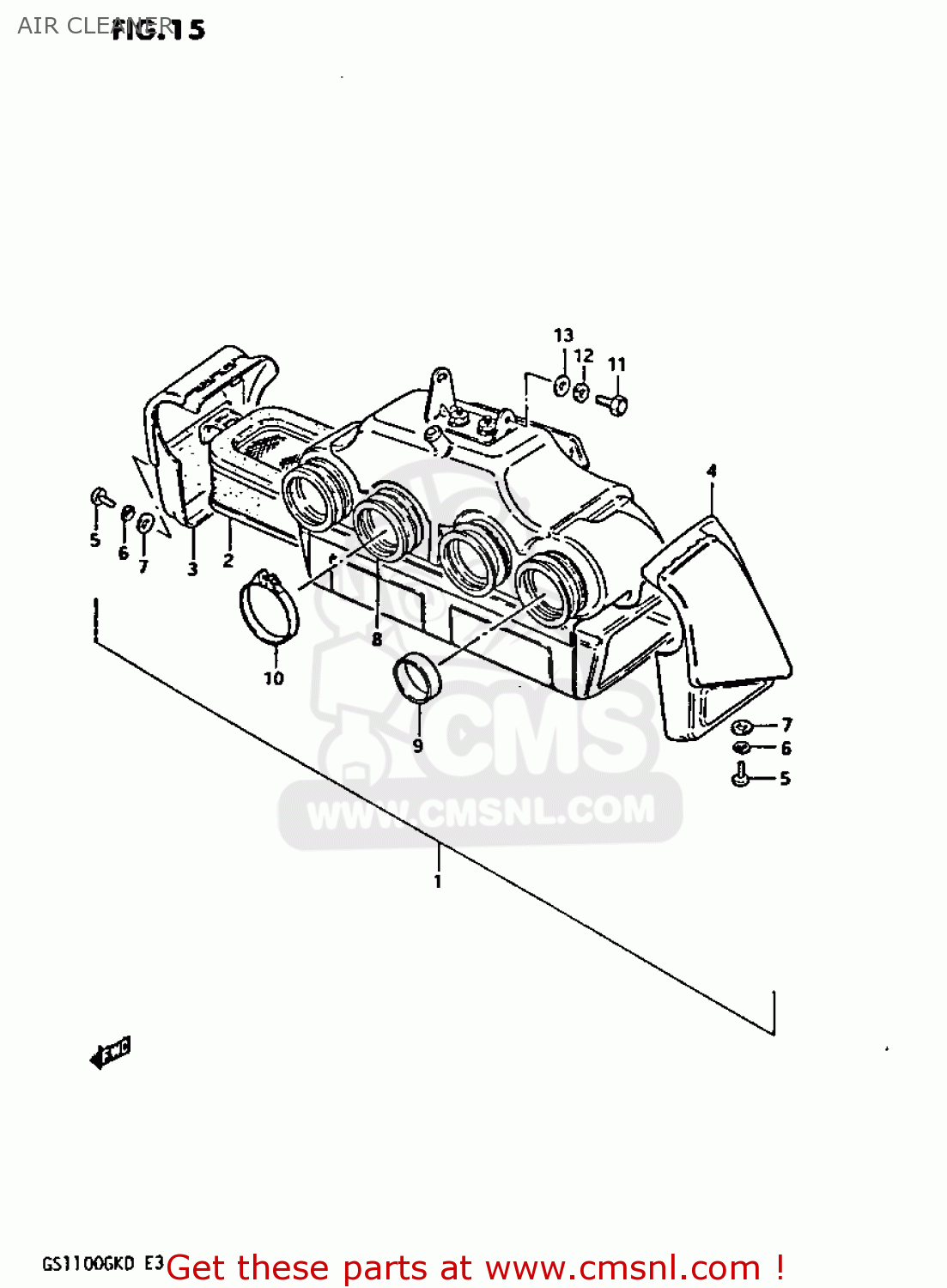

Air cleaner diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1370045122
ref: 1

CLEANER ASSEMBLY,AIR

€ 317.50

1378049070
ref: 2

FILTER ASSY

€ 90.00

1374045100
ref: 3

CAP,AIR CLEANER

€ 44.50

1375045100
ref: 4

CAP,AIR CLEANER

€ 43.50

0211205128
ref: 5

SCREW

€ 2.50

0832121057
ref: 6

LOCK WASHER

€ 2.00

0832221057
ref: 7

WASHER

€ 2.50

1388149080
ref: 8

TUBE,OUTLET

€ 14.00

1388533200
ref: 9

RING,CARBURETOR AIR IN

€ 9.00

0940262208
ref: 10

CLAMP

€ 6.00

0150006127
ref: 11

BOLT

€ 2.00

0832101067
ref: 12

WASHER,LOCK

€ 2.50

0832211068
ref: 13

WASHER 6MM

€ 2.00
