Buy Suzuki GS Parts Online


FRONT BRAKE HOSE

GS1100GK 1983 (D) GENERAL EXPORT (E01)

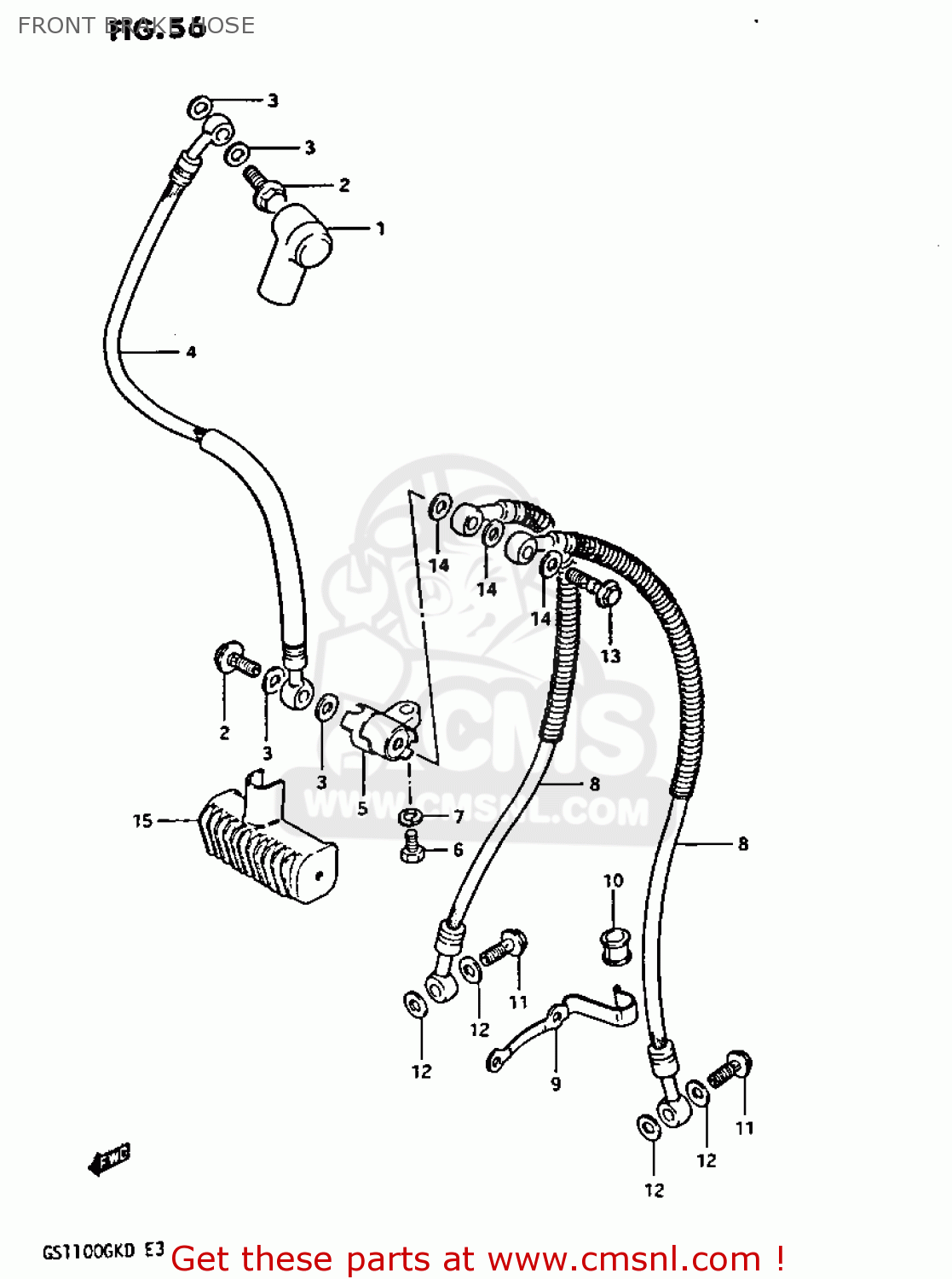

Front brake hose diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

FRONT BRAKE HOSE GS1100GK 1983 (D) GENERAL EXPORT (E01)
FRONT BRAKE HOSE GS1100GK 1983 (D) GENERAL EXPORT (E01)
FRONT BRAKE HOSE GS1100GK 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
5971149001
€ 8.50
2-1
0936010007
ref: 2-1
GS1100GKZ
BOLT,UNION
0936010007
€ 6.50
2-2
0936010009
ref: 2-2
GS1100GK2/GKD
BOLT UNION
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
0916110009
€ 2.00
4
5948049411
ref: 4
HOSE,FRONT BRAKE
€ 52.50
5
5949145001
ref: 5
JOINT,BRAKE HOSE
5949145001
€ 29.00
6
0150006207
ref: 6
BOLT
0150006207
€ 2.00
7
0832101067
ref: 7
WASHER,LOCK
0832101067
€ 2.50
8
5924049400
ref: 8
HOSE,BRAKE
5924049400
€ 66.50
9
5926849001
ref: 9
GUIDE,BRAKE HOSE NO.2
5926849001
€ 7.00
10
5924449000
ref: 10
BUSH,BRAKE HOSE GUIDE,NO.2
5924449000
€ 4.50
11-1
0936010007
ref: 11-1
GS1100GKZ
BOLT,UNION
0936010007
€ 6.50
11-2
0936010009
ref: 11-2
GS1100GK2/GKD
BOLT UNION
€ 6.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 2.00
13
0936010008
ref: 13
BOLT,UNION
0936010008
€ 7.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
0916110009
€ 2.00
15
5949534300
ref: 15
COVER,BRAKE HOSE JOINT
5949534300
€ 17.00
