Buy Suzuki GS Parts Online


CAM SHAFT - VALVE

GS1100GK 1983 (D) GENERAL EXPORT (E01)

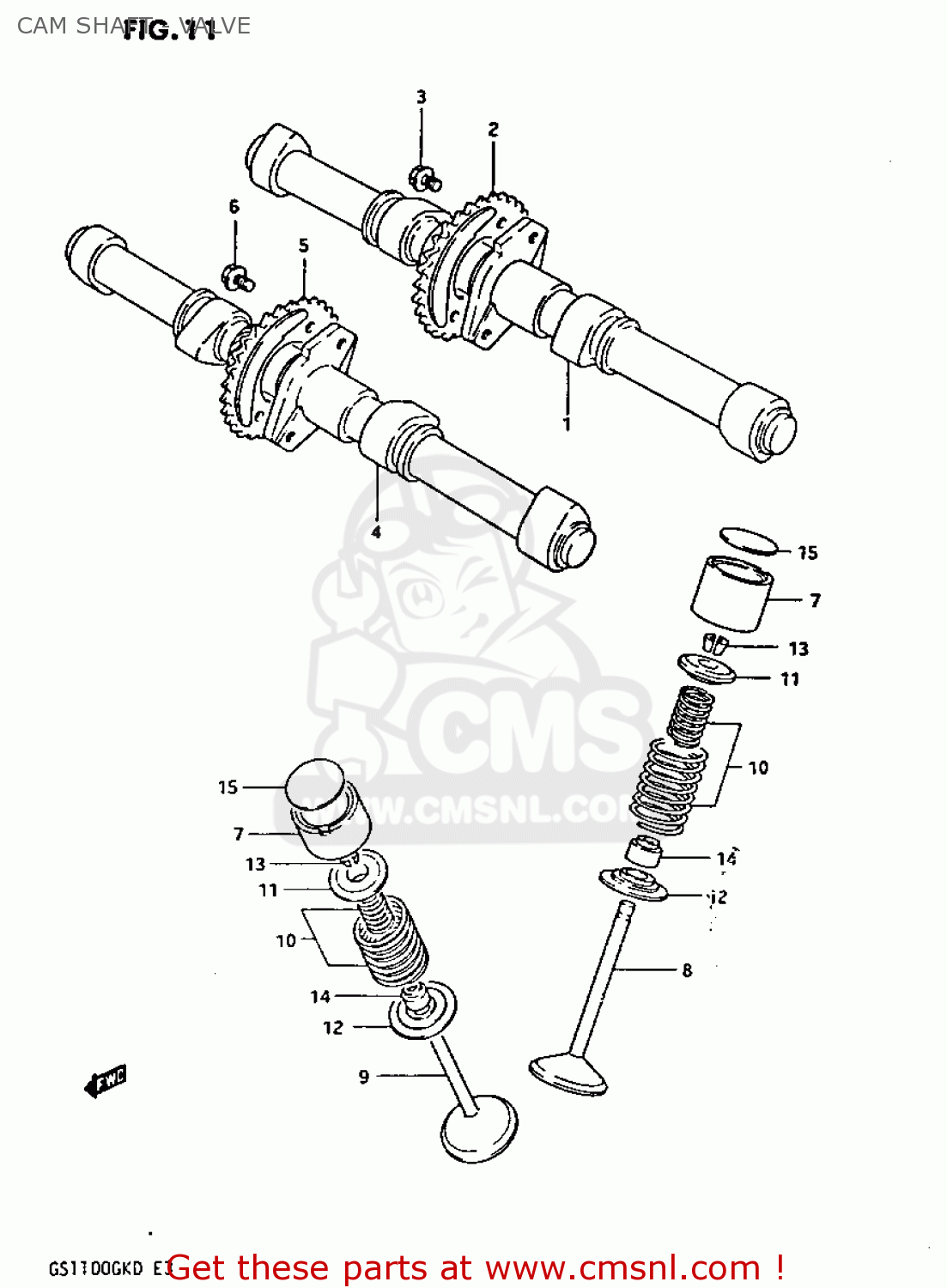

Cam shaft - valve diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GS1100GK 1983 (D) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS1100GK 1983 (D) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS1100GK 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1271149001
ref: 1
CAMSHAFT,INTAKE
1271149001
€ 236.00
2
1274149002
ref: 2
SPROCKET,INTAKE CAMSHAFT
€ 47.00
3
0910307001
ref: 3
BOLT(7X11)
0910307001
€ 2.00
4
1272149001
ref: 4
CAMSHAFT,EXHAUST
1272149001
€ 287.00
5
1275149002
ref: 5
SPROCKET,EXHAUST CAMSHAFT
1275149002
€ 31.50
6
0910307001
ref: 6
BOLT(7X11)
0910307001
€ 2.00
7
1289145001
ref: 7
TAPPET,INTAKE
1289145001
€ 45.00
8
1291149020
ref: 8
VALVE,INTAKE
1291149020
€ 31.00
9
1291249020
ref: 9
VALVE,EXHAUST
1291249020
€ 60.00
10
1292045011
ref: 10
SPRING SET,VALVE
1292045011
€ 17.00
11
1293145000
ref: 11
RETAINER,VALVE SPRING
1293145000
€ 6.00
12
1293345001
ref: 12
SEAT,VALVE SPRING
1293345001
€ 5.50
13
1293245010
ref: 13
COTTER VALVE
1293245010
€ 2.50
14
0928907002
ref: 14
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
15-1
1289245000215
ref: 15-1
SHIM,TAPPET(T:2.15)
1289245000215
€ 17.00
15-2
1289245000220
ref: 15-2
SHIM,TAPPET(T:2.20)
1289245000220
€ 16.50
15-3
1289245000225
ref: 15-3
SHIM,TAPPET(T:2.25)
1289245000225
€ 17.00
15-4
1289245000230
ref: 15-4
SHIM,TAPPET(T:2.30)
1289245000230
€ 16.00
15-5
1289245000235
ref: 15-5
SHIM,TAPPET(T:2.35)
1289245000235
€ 16.50
15-6
1289245000240
ref: 15-6
SHIM,TAPPET(T:2.40)
1289245000240
€ 17.00
15-7
1289245000245
ref: 15-7
SHIM,TAPPET(T:2.45)
1289245000245
€ 17.00
15-8
1289245000250
ref: 15-8
SHIM,TAPPET(T:2.50)
1289245000250
€ 16.00
15-9
1289245000255
ref: 15-9
SHIM,TAPPET(T:2.55)
1289245000255
€ 16.50
15-10
1289245000260
ref: 15-10
SHIM,TAPPET(T:2.60)
1289245000260
€ 16.00
15-11
1289245000265
ref: 15-11
SHIM,TAPPET(T:2.65)
1289245000265
€ 17.00
15-12
1289245000270
ref: 15-12
SHIM,TAPPET(T:2.70)
1289245000270
€ 17.00
15-13
1289245000275
ref: 15-13
SHIM,TAPPET(T:2.75)
1289245000275
€ 17.00
15-14
1289245000280
ref: 15-14
SHIM,TAPPET(T:2.80)
1289245000280
€ 16.50
15-15
1289245000285
ref: 15-15
SHIM,TAPPET(T:2.85)
1289245000285
€ 17.00
15-16
1289245000290
ref: 15-16
SHIM,TAPPET(T:2.90)
1289245000290
€ 17.00
15-17
1289245000295
ref: 15-17
SHIM,TAPPET(T:2.95)
1289245000295
€ 17.00
15-18
1289245000300
ref: 15-18
SHIM,TAPPET(T:3.00)
1289245000300
€ 17.00
15-19
1289245000305
ref: 15-19
SHIM,TAPPET(T:3.05)
1289245000305
€ 16.50
15-20
1289245000310
ref: 15-20
SHIM,TAPPET(T:3.10)
1289245000310
€ 17.00
16
1280045811
ref: 16
NOT SHOWN, INC NO. 1
SHIM SET,TAPPET
1280045811
€ 1,227.00
17
9900069480
ref: 17
NOT SHOWN
CASE
€ 152.50
