CRANKCASE (GS1100GKZ/GK2)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

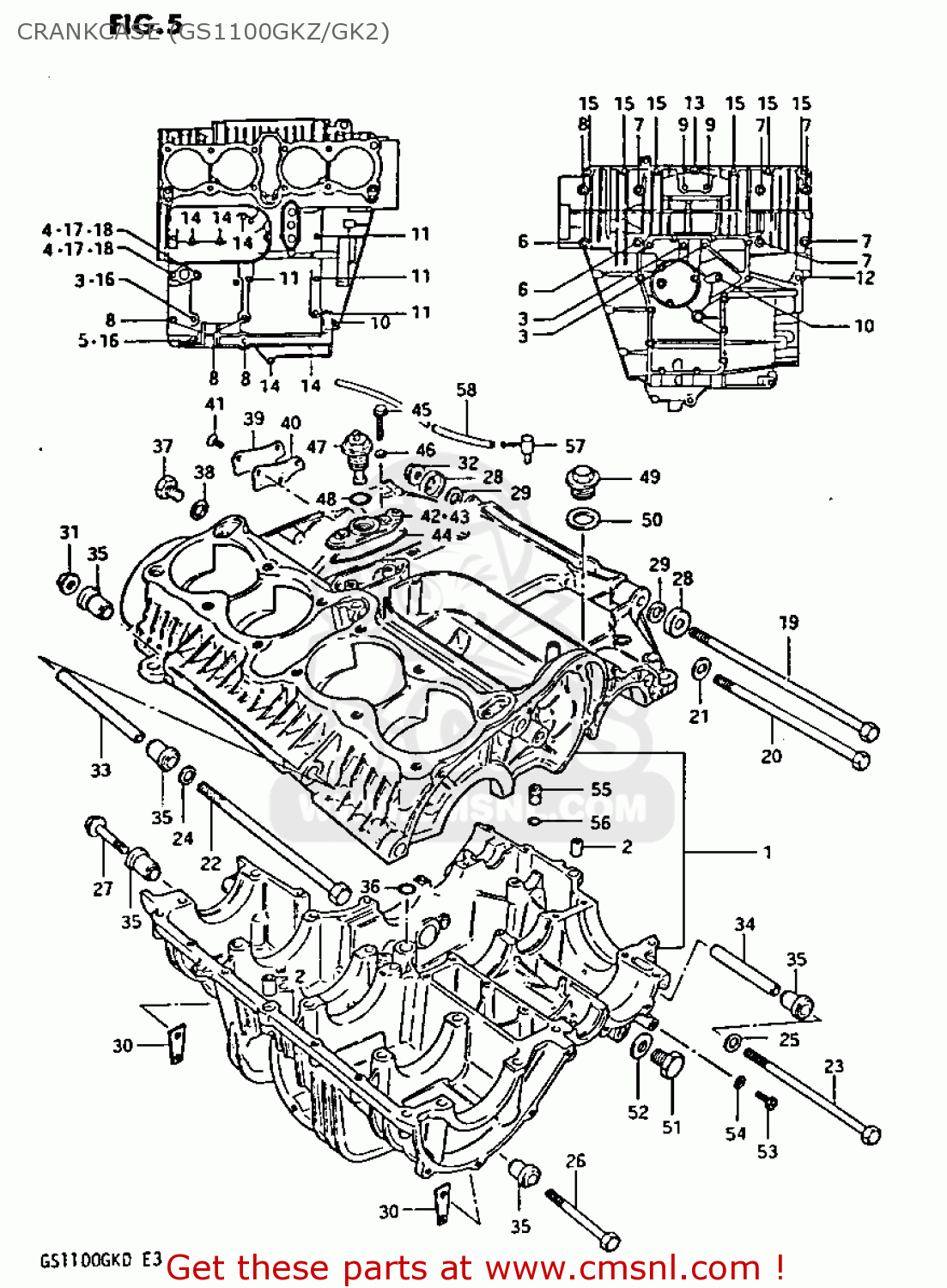

Crankcase (gs1100gkz/gk2) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

CRANKCASE (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)
CRANKCASE (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)
CRANKCASE (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1130049852
ref: 1
CRANKCASE SET
€ 0.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308106
ref: 3
BOLT(8X125)
0910308106
€ 8.00
4
0910308046
ref: 4
BOLT
€ 0.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308070
ref: 6
BOLT(8X100)
0910308070
€ 5.00
7
0151708908
ref: 7
BOLT 8X90
€ 3.50
8
0151708658
ref: 8
BOLT 8X65
€ 3.00
9
0151708608
ref: 9
BOLT
€ 3.50
10
0151706907
ref: 10
BOLT (6X90)
€ 2.00
11
0151706758
ref: 11
BOLT (6X75)
€ 2.50
12
0151706557
ref: 12
BOLT
€ 2.50
13
0151706508
ref: 13
BOLT ,6X50
€ 2.00
14
0151706458
ref: 14
BOLT,UNDER
0151706458
€ 2.50
15
0151706358
ref: 15
BOLT 6X35
0151706358
€ 2.50
16
0831616088
ref: 16
NUT
0831616088
€ 2.50
17
0831311088
ref: 17
NUT
0831311088
€ 2.50
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
19
0910010185
ref: 19
GS1100GKZ
BOLT
€ 0.00
20
0910010144
ref: 20
GS1100GK2
BOLT
€ 15.50
21
0832211104
ref: 21
GS1100GK2
WASHER 10MM
0832211104
€ 2.50
22
0910110010
ref: 22
BOLT 10X250
0910110010
€ 49.50
23
0910010171
ref: 23
BOLT
€ 11.50
24
0832201107
ref: 24
WASHER
0832201107
€ 2.50
25
0832211104
ref: 25
WASHER 10MM
0832211104
€ 2.50
26
0910310060
ref: 26
BOLT
€ 0.00
27
0151710558
ref: 27
BOLT 10X55
€ 3.00
28
0916910016
ref: 28
GS1100GKZ
WASHER
€ 0.00
29
0916010005
ref: 29
GS1100GKZ
WASHER(10.5X20X3.2)
0916010005
€ 2.00
30
0915910038
ref: 30
NUT
0915910038
€ 3.00
31
0831931107
ref: 31
NUT
0831931107
€ 3.00
32
0831931105
ref: 32
NUT 10MM
€ 3.00
33
0918010077
ref: 33
SPACER
€ 0.00
34
0918010078
ref: 34
SPACER
€ 2.50
35
0931910042
ref: 35
BUSH
0931910042
€ 16.50
36
0928013001
ref: 36
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
37
0924714026
ref: 37
PLUG(14X12)
0924714026
€ 3.50
38
0916814004
ref: 38
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
39
1139445000
ref: 39
CAP,OIL GALLERY
1139445000
€ 6.50
40
1149745000H17
ref: 40
GASKET,OIL GALLERY CAP (NAS)
1149745000H17
€ 13.00
41
0212206167
ref: 41
SCREW
0212206167
€ 2.00
42
1644545000
ref: 42
HOUSING,OIL PRESSURE SWITCH
1644545000
€ 28.00
43
1644549000
ref: 43
OPT
HOUSING,OIL PRESSURE SWITCH
1644549000
€ 23.50
44
1644845000
ref: 44
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
45
0151706257
ref: 45
BOLT 6X25
€ 2.50
46
0916806023
ref: 46
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
47
3782045060
ref: 47
SWITCH ASSEMBLY
3782045060
€ 30.00
48
0928019001
ref: 48
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
49
0924720002
ref: 49
PLUG
0924720002
€ 4.50
50
0916820004
ref: 50
GASKET
€ 1.50
51
0924714019
ref: 51
PLUG
€ 5.50
52
0916814004
ref: 52
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
53
0912806004
ref: 53
SCREW(6X10)
0912806004
€ 1.50
54
0916806023
ref: 54
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
55
0936405005
ref: 55
UNION
0936405005
€ 3.00
56
0928003003
ref: 56
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
57
2482145100
ref: 57
BPLUG,BEVEL GEAR BREATHER
2482145100
€ 7.00
58
0934302009
ref: 58
HOSE
€ 12.00
