CAM CHAIN (GS1100GKZ/GK2)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

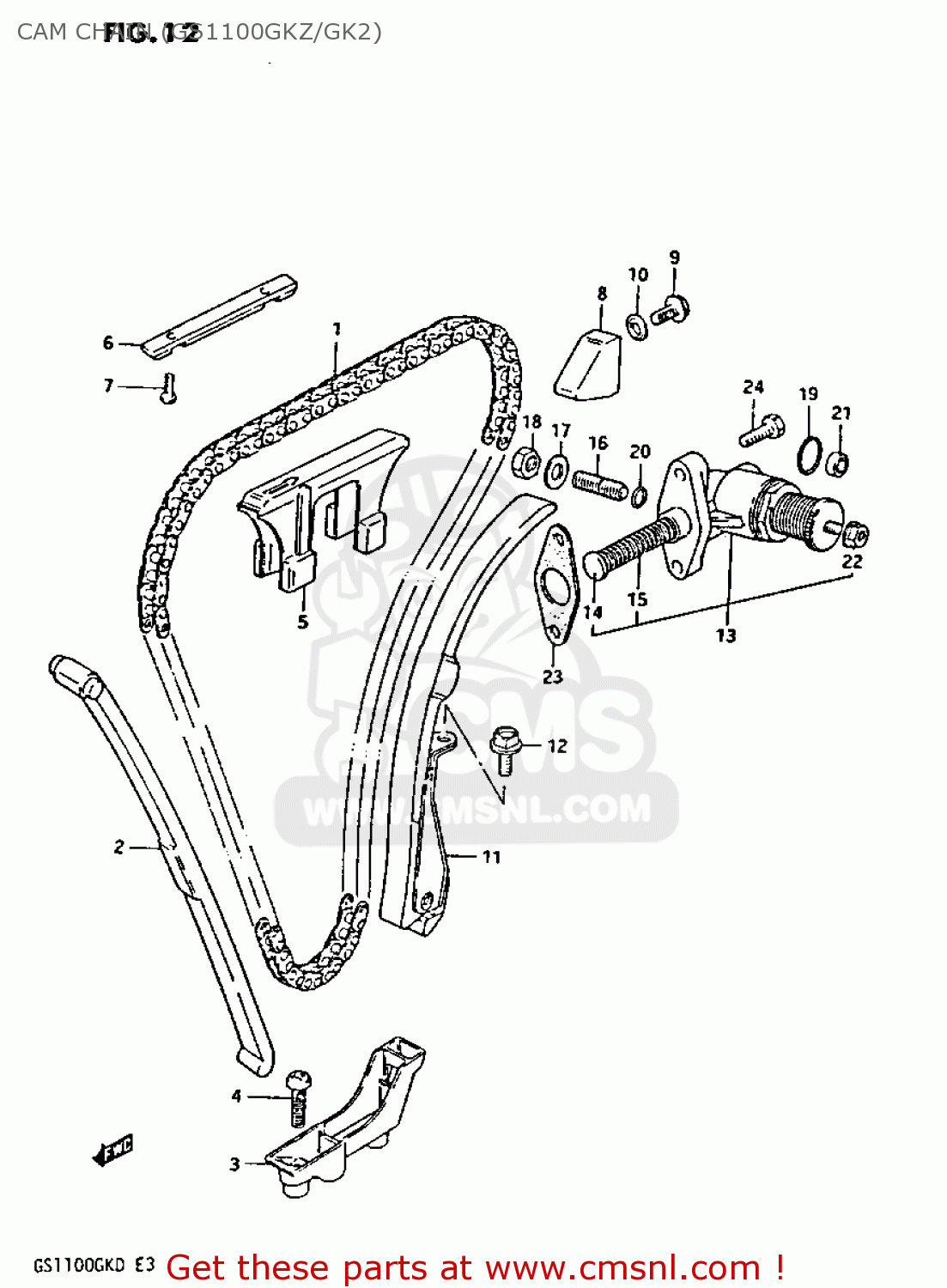

Cam chain (gs1100gkz/gk2) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

CAM CHAIN (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)

CAM CHAIN (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1276049011
ref: 1
120L

CHAIN,CAMSHAFT DRIVE

€ 112.00

2

1277145052
ref: 2

GUIDE,CAM CHAIN NO.1

€ 33.50

3

1277649010
ref: 3

HOLDER,CAM CHAIN GUIDE

€ 9.50

4

0211206207
ref: 4

SCREW

€ 2.00

5

1278147042
ref: 5

GUIDE,CAM CHAIN NO.2

€ 136.50

6

1278249140
ref: 6

GUIDE,CAM CHAIN

€ 37.50

7

0211205107
ref: 7

SCREW

€ 2.00

8

1279145040
ref: 8

GUIDE,CAM CHAIN

€ 8.50

9

0151706127
ref: 9

BOLT 6X12

€ 2.50

10

0916806023
ref: 10

GASKET(5.8X13X1.2) (NAS)

€ 2.00

11

1281049051
ref: 11

TENSIONER,CAM CHAIN

€ 92.00

12

0151708167
ref: 12

BOLT 8X16

€ 3.00

13

1283009300
ref: 13

ADJUSTER,CAM CHAIN TENSIONER

€ 167.00

14

1283347001
ref: 14

ROD,PUSH

€ 25.00

15

0944012017
ref: 15

SPRING

€ 2.50

16

1283845001
ref: 16

SCREW

€ 6.00

17

0832211088
ref: 17

WASHER

€ 2.00

18

0831012088
ref: 18

NUT

€ 2.00

19

0928021013
ref: 19

O RING(D:2.4,ID:20.8)

€ 4.50

20

0928006005
ref: 20

O RING(D:1.9,ID:5.7)

€ 2.50

21

0928410006
ref: 21

SEAL,OIL(10X16X4)

€ 4.00

22

0915906017
ref: 22

NUT

€ 2.50

23

1283731310
ref: 23

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

24

0912806024
ref: 24

SCREW (6X25)

€ 2.50
