ELECTRICAL (GS1100GKD)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

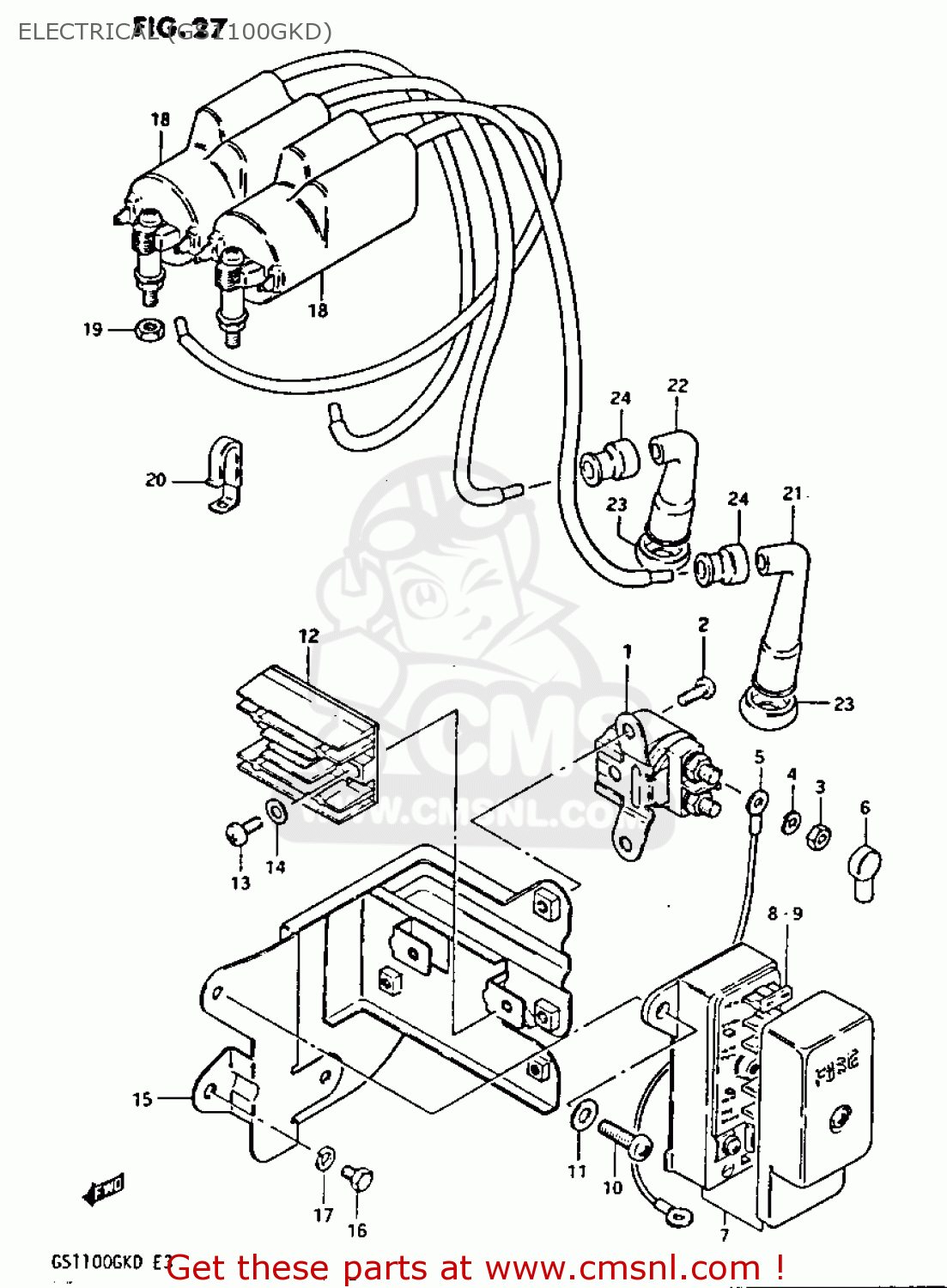

Electrical (gs1100gkd) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (GS1100GKD) GS1100GK 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (GS1100GKD) GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

2

0211206107
ref: 2

SCREW

€ 1.50

3

0831022067
ref: 3

NUT 6MM

€ 2.50

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

3385049410
ref: 5

CABLE,STARTING MOTOR

€ 24.00

6-1

3186111500
ref: 6-1

CAP,TERMINAL

€ 4.50

6-2

3186149400
ref: 6-2
HAVE SLIT

CAP,STARTER RELAY

€ 0.00

7

3674049411
ref: 7

BOX ASSEMBLY,FUSE

€ 0.00

8

0948110101
ref: 8

FUSE(10A)

€ 2.50

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10

0211206128
ref: 10

SCREW 6X12

€ 2.00

11

0832201067
ref: 11

WASHER

€ 2.00

12

3280009300
ref: 12

RECTIFIER ASSEMBLY

€ 306.50

13

0211206207
ref: 13

SCREW

€ 2.00

14

0832201067
ref: 14

WASHER

€ 2.00

15

4741045120
ref: 15

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

16

0150006127
ref: 16

BOLT

€ 2.00

17

0832101067
ref: 17

WASHER,LOCK

€ 2.50

18

3341034210
ref: 18

COIL ASSEMBLY,IGNITION

€ 182.00

19

0831000067
ref: 19

NUT

€ 2.50

20

0940306307
ref: 20

CLAMP

€ 4.50

21

3351045010
ref: 21

CAP ASSY,SPARK PLUG

€ 23.00

22

3351043010
ref: 22

CAP,SPARK PLUG

€ 11.50

23

3354169010
ref: 23

SEAL,SPARK PLUG

€ 5.00

24

3354298000
ref: 24

SEAL,SPARK PLU

€ 4.50
