REAR FENDER EXTENSION (OPTIONAL)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

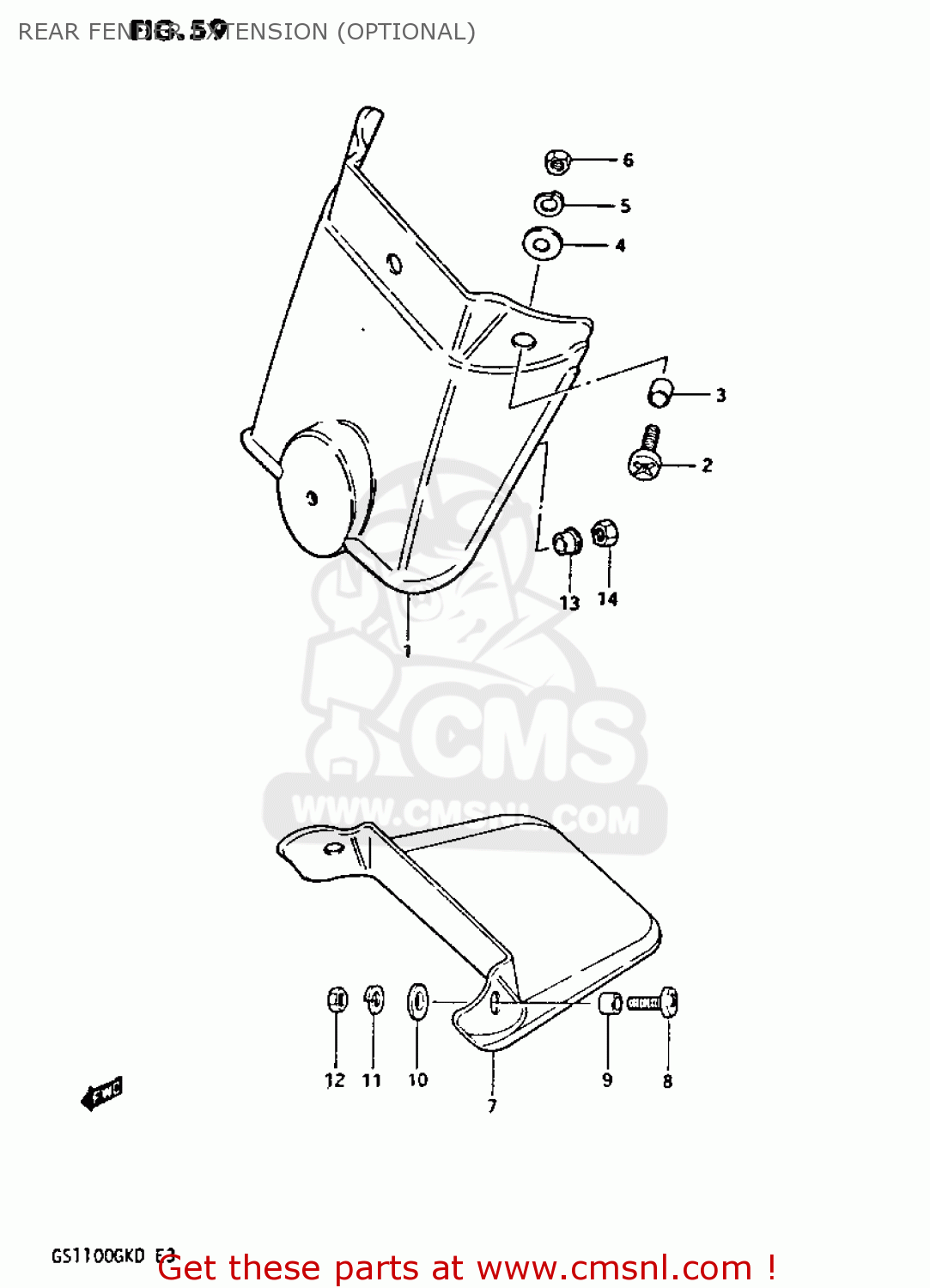

Rear fender extension (optional) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6331149000
ref: 1

EXTENSION,REAR FENDER

€ 16.00

0912506009
ref: 2

SCREW (6X15)

€ 3.00

0918006001
ref: 3

SPACER(6.2X8.3X5.7)

€ 2.00

0916006028
ref: 4

WASHER(6.5X18X1)

€ 1.50

0832101067
ref: 5

WASHER,LOCK

€ 2.50

0831000067
ref: 6

NUT

€ 2.50

6331149030
ref: 7

EXTENSION,REAR FENDER

€ 38.50

0912506009
ref: 8

SCREW (6X15)

€ 3.00

0918006001
ref: 9

SPACER(6.2X8.3X5.7)

€ 2.00

0916006028
ref: 10

WASHER(6.5X18X1)

€ 1.50

0832101067
ref: 11

WASHER,LOCK

€ 2.50

0831000067
ref: 12

NUT

€ 2.50

0916906053
ref: 13

WASHER

€ 2.00

0831000057
ref: 14

NUT

€ 2.50
