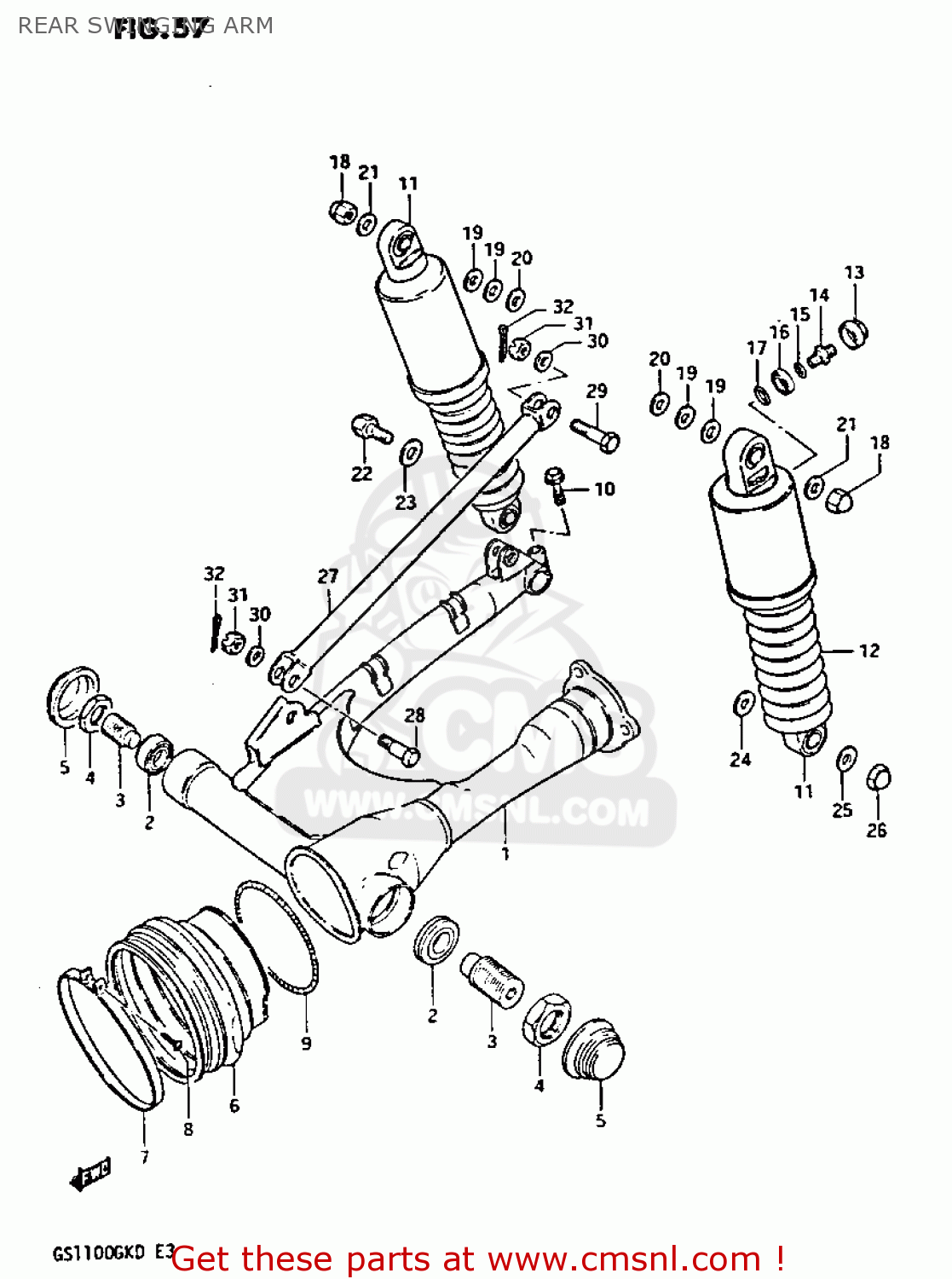

ref
part #
description
quantity
2
BEARING(17X40X13.25)
3
BOLT,REAR SWING ARM PIVOT
4
NUT
5
CAP,REAR SWING ARM PIVOT
6
BOOT,PROPELLER SHAFT
8
SCREW 4X25
9
SPRING,PROPELLER SHAFT
10
BOLT
11-1
ABSORBER ASSEMBLY,REAR SHOCK
11-2
ABSORBER ASSEMBLY,REAR SHOCK
13
CAP,VALVE
14-1
VALVE
14-2
VALVE,FRONT FORK AIR
15
O-RING
16
SPACER,REAR SHOCK ABSORBER
17
O RING,RR SHOCK
18
NUT
19-1
WASHER
19-2
WASHER
20
WASHER(15.5X26X2.3)
21
WASHER
22
BOLT 12X33
23
WASHER (12.5X24X1.6)
24
WASHER
25
WASHER
26
NUT
28
BOLT
29
BOLT(10X39)
30
WASHER
31
NUT
32
PIN 20X20
