COWLING (NO.1) (GS1100GKZ)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

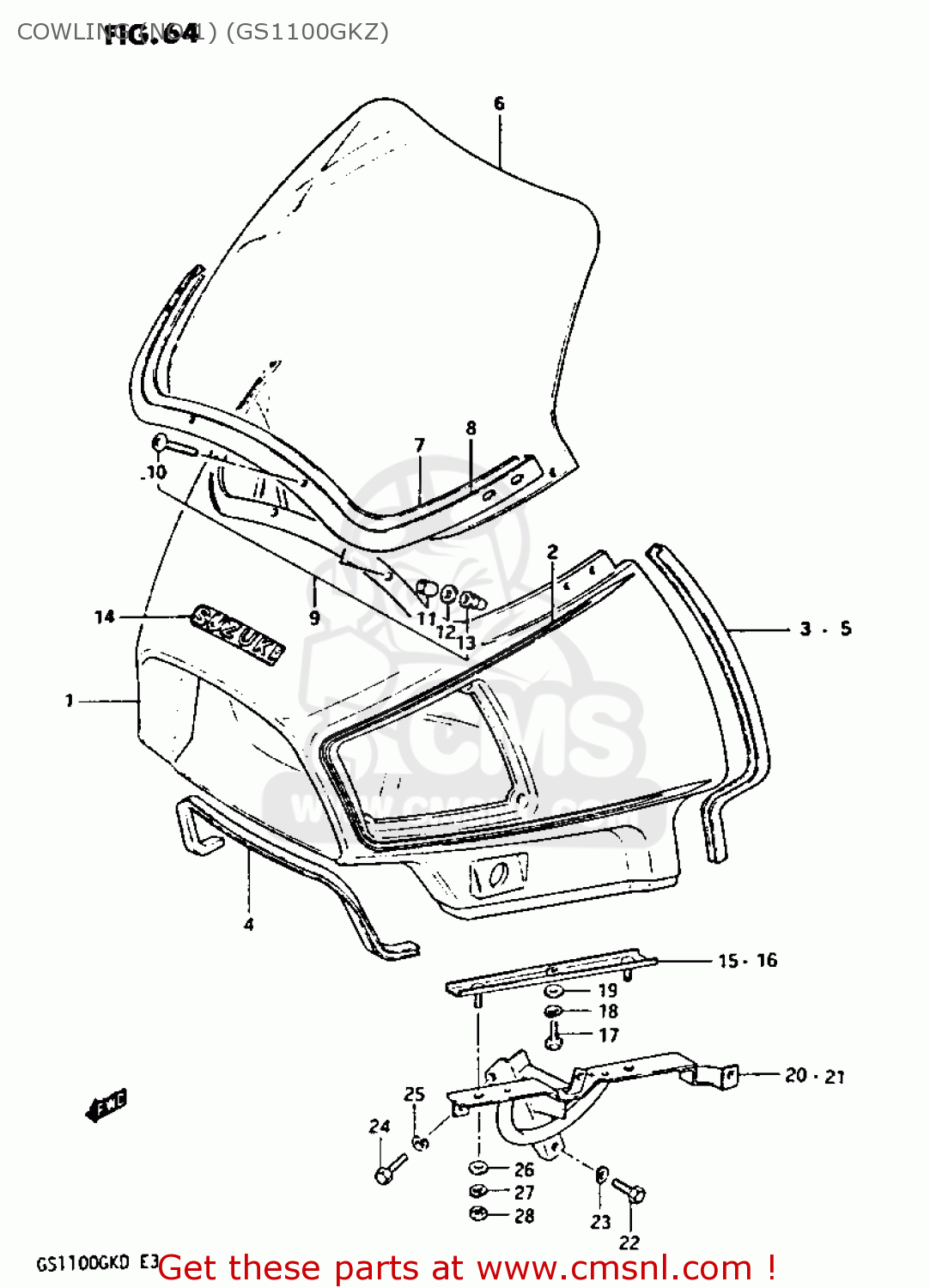

Cowling (no.1) (gs1100gkz) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

COWLING (NO.1) (GS1100GKZ) GS1100GK 1983 (D) GENERAL EXPORT (E01)
COWLING (NO.1) (GS1100GKZ) GS1100GK 1983 (D) GENERAL EXPORT (E01)
COWLING (NO.1) (GS1100GKZ) GS1100GK 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
9440049830019
ref: 1-1
COWLING ASSEMBLY
€ 1,075.00
1-2
944004983014A
ref: 1-2
BODY ASSEMBLY,COWLING
€ 289.50
2
6819049400764
ref: 2
TAPE SET,COWLING
€ 0.00
3
9441749400
ref: 3
MOLDING,COWLING,RIGHT
9441749400
€ 26.50
4
9441949400
ref: 4
MOLDING,LOWER
€ 27.00
5
9442749400
ref: 5
MOLDING,COWLING,LEFT
€ 26.00
6
9461149400
ref: 6
WINDSHEILD,COWLING
€ 710.00
7
9463349400
ref: 7
CUSHION,WINDSHEILD
€ 13.50
8
9463449400
ref: 8
PLATE,WINDSHEILD
€ 69.50
9
9440049820
ref: 9
BODY ASSEMBLY,COWLING
€ 0.00
10
0912506038
ref: 10
SCREW
0912506038
€ 3.00
11
0918006055
ref: 11
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
12
0916006027
ref: 12
WASHER (6.5X20X1.2)
0916006027
€ 2.00
13
0915906025
ref: 13
NUT
0915906025
€ 3.00
14
6827849400
ref: 14
EMBLEM,COWLING
6827849400
€ 18.00
15
9447049400
ref: 15
PLATE,COWLING FITTING
€ 7.50
16
9448049400
ref: 16
PLATE,COWLING FITTING
€ 7.50
17
0150006207
ref: 17
BOLT
0150006207
€ 2.00
18
0832101067
ref: 18
WASHER,LOCK
0832101067
€ 2.50
19
0832201067
ref: 19
WASHER
0832201067
€ 2.00
20
9451049401
ref: 20
BRACE,COWLING
9451049401
€ 242.50
21
9453049401
ref: 21
BRACKET,COWLING,LEFT
€ 70.50
22
0110708168
ref: 22
BOLT
€ 2.00
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
0150008207
ref: 24
BOLT
0150008207
€ 3.00
25
0832121088
ref: 25
LOCK WASHER
0832121088
€ 2.00
26
0832221088
ref: 26
WASHER
0832221088
€ 2.00
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0831012088
ref: 28
NUT
0831012088
€ 2.00
