HEADLAMP HOUSING - FRONT FENDER

GS1100GK 1983 (D) GENERAL EXPORT (E01)

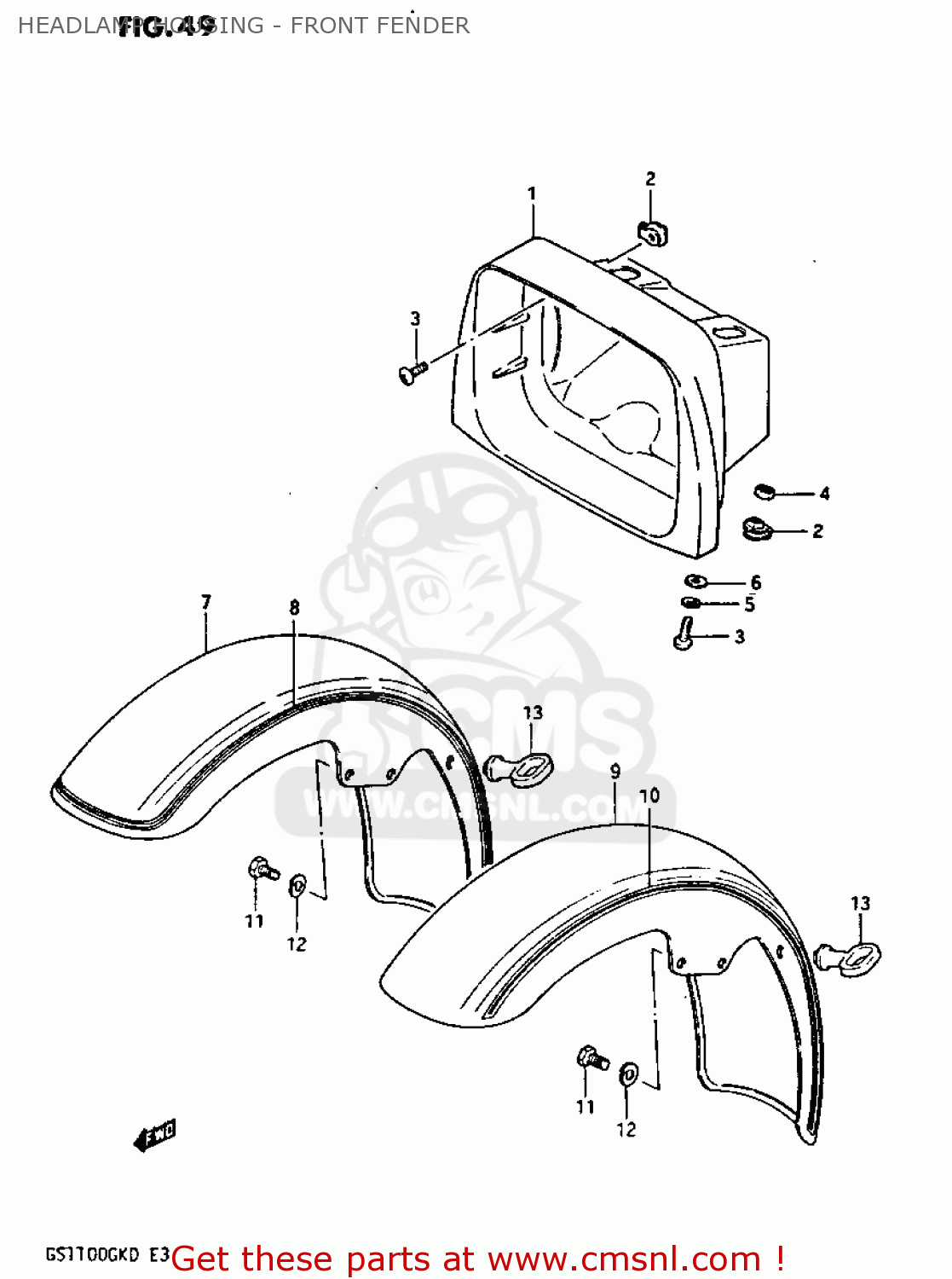

Headlamp housing - front fender diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

HEADLAMP HOUSING - FRONT FENDER GS1100GK 1983 (D) GENERAL EXPORT (E01)
HEADLAMP HOUSING - FRONT FENDER GS1100GK 1983 (D) GENERAL EXPORT (E01)
HEADLAMP HOUSING - FRONT FENDER GS1100GK 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
5181149410019
ref: 1-1
GS1100GKZ
HOUSING,HEADLAMP
€ 0.00
1-2
518114941014A
ref: 1-2
GS1100GKZ
HOUSING,HEADLAMP
€ 0.00
1-3
518114941018A
ref: 1-3
GS1100GK2/GKD
HOUSING,HEADLAMP
€ 0.00
2
9469149400
ref: 2
PLATE
9469149400
€ 1.50
3
0214205208
ref: 3
(5X20) CROSS SCREW
€ 2.00
4
0831000057
ref: 4
NUT
0831000057
€ 2.50
5
0832121057
ref: 5
LOCK WASHER
0832121057
€ 2.00
6
0832221057
ref: 6
WASHER
0832221057
€ 2.50
7-1
531104940013L
ref: 7-1
GS1100GKZ
FENDER,FRONT
€ 180.50
7-2
531004941014A
ref: 7-2
GS1100GKZ
FENDER,FRONT
€ 180.50
8
6815049410764
ref: 8
GS1100GKZ
TAPE,FRONT FENDER
€ 0.00
9
531004947090U
ref: 9
GS1100GK2/GKD
FENDER,FRONT
€ 180.50
10
681504942093A
ref: 10
GS1100GK2/GKD
TAPE,FRONT FENDER
€ 0.00
11
0110708168
ref: 11
BOLT
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
0832121088
€ 2.00
13
5862121203A
ref: 13
GUIDE,CABLE
€ 7.50
