STARTER CLUTCH

GS1100GK 1983 (D) GENERAL EXPORT (E01)

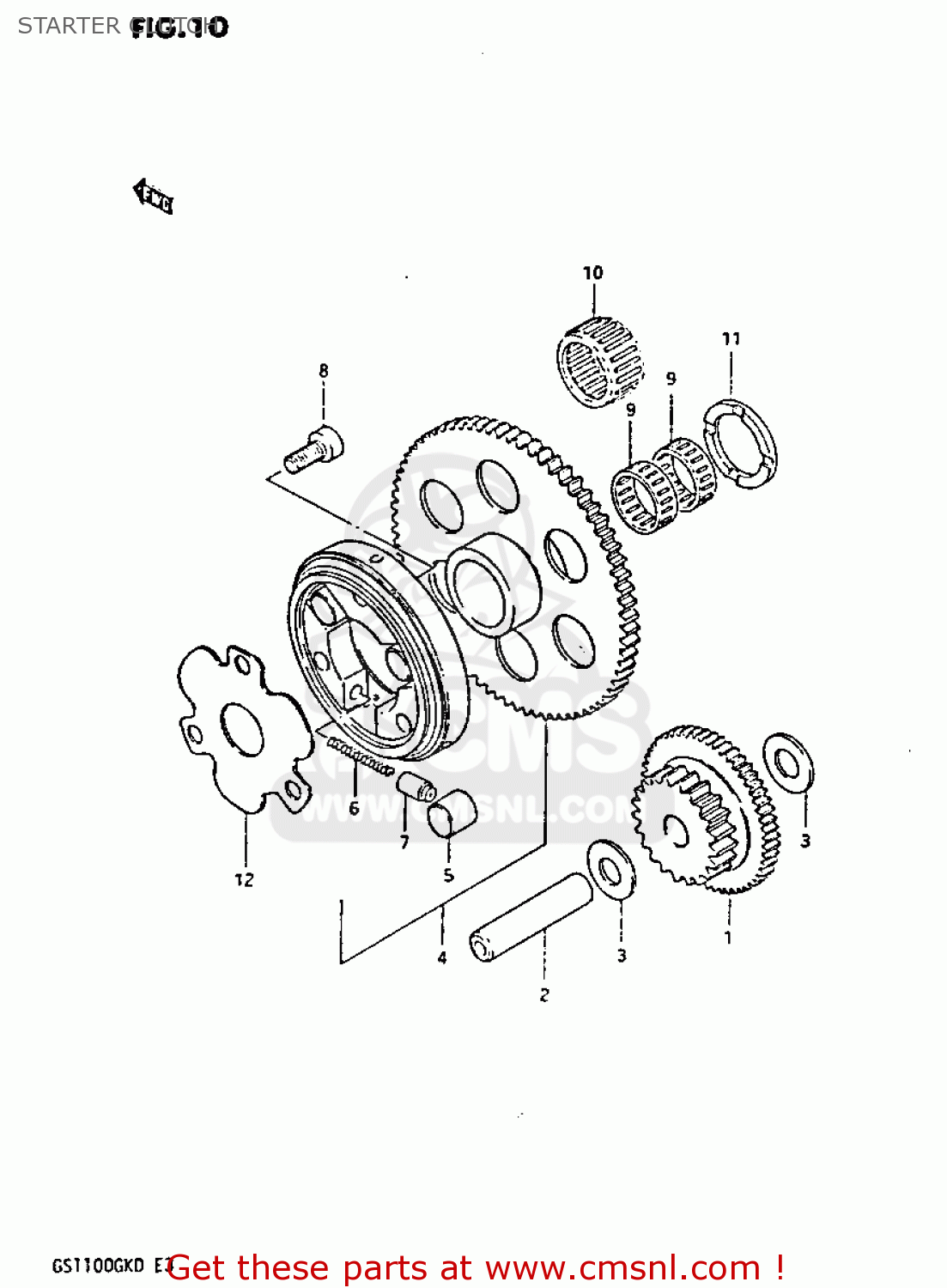

Starter clutch diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1261149000
ref: 1

GEAR,STARTER IDLE

€ 49.00

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

1260049850
ref: 4

CLUTCH SET,STARTER

€ 273.00

0926114001
ref: 5

PIN(14X13)

€ 5.00

0944004015
ref: 6

SPRING

€ 2.50

1263331000
ref: 7

PIECE,PUSH

€ 9.00

0910608043
ref: 8

BOLT

€ 3.00

0926325039
ref: 9
GS1100GKZ/GK2

ROLLER BEARING (25X31X2

€ 17.00

0926325039
ref: 10
GS1100GKD

ROLLER BEARING (25X31X2

€ 17.00

0916025019
ref: 11

WASHER(25X38X2.5)

€ 10.00

1264949400
ref: 12

SHIM,STARTER CLUTCH HUB

€ 0.00
