SIDE BAG (GS1100GKZ)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

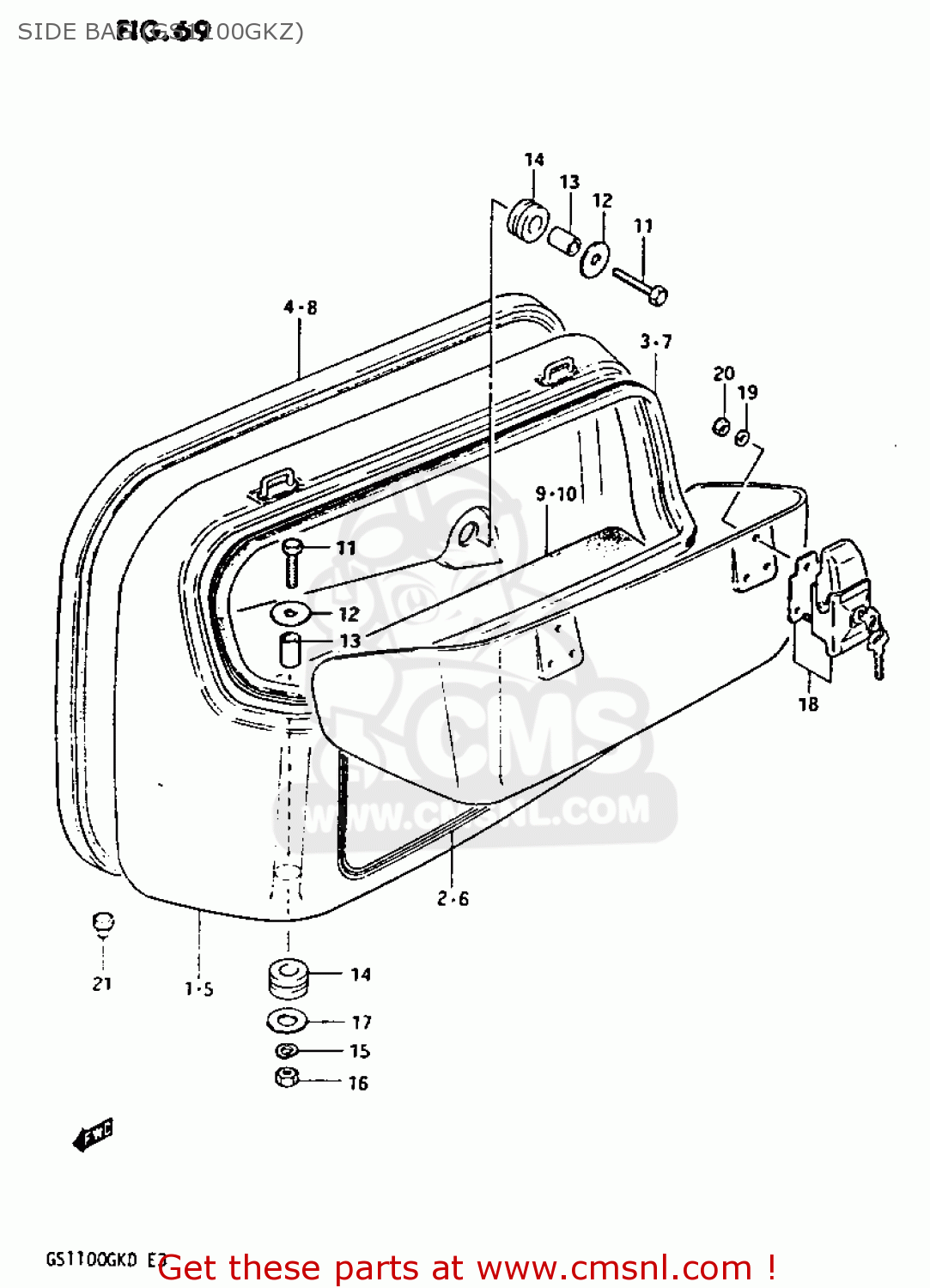

Side bag (gs1100gkz) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

SIDE BAG (GS1100GKZ) GS1100GK 1983 (D) GENERAL EXPORT (E01)

SIDE BAG (GS1100GKZ) GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

9540049821019
ref: 1-1

SIDE BAG ASSEMBLY,RIGHT

€ 1,028.50

1-2

954004982114A
ref: 1-2

SIDE BAG ASSEMBLY,RIGHT

€ 276.00

2

6826049400764
ref: 2

TAPE SET,SIDE BAG,RIGHT

€ 0.00

3

9311349400
ref: 3

SEAL,TRAVEL TRUNK

€ 45.00

4

9541949400
ref: 4

MOLDING,SIDE BAG

€ 31.00

5-1

9550049821019
ref: 5-1

SIDE BAG ASSEMBLY,LEFT

€ 276.00

5-2

955004982114A
ref: 5-2

SIDE BAG ASSEMBLY,LEFT

€ 1,028.50

6

6827049400764
ref: 6

TAPE SET,SIDE BAG,LEFT

€ 15.50

7

9311349400
ref: 7

SEAL,TRAVEL TRUNK

€ 45.00

8

9541949400
ref: 8

MOLDING,SIDE BAG

€ 31.00

9

9545149400
ref: 9

CUSHION

€ 0.00

10

9545549400
ref: 10

CUSHION

€ 0.00

11

0150006257
ref: 11

BOLT

€ 2.00

12

0916006030
ref: 12

WASHER (6.5X29X1.6)

€ 2.50

13

0918008083
ref: 13

SPACER

€ 4.50

14

0932014008
ref: 14

CUSHION

€ 4.50

15

0832101067
ref: 15

WASHER,LOCK

€ 2.50

16

0831000067
ref: 16

NUT

€ 2.50

17

0916006027
ref: 17

WASHER (6.5X20X1.2)

€ 2.00

18

9331049400KEY
ref: 18

LOCK,TRANK LID

€ 64.00

19

0832221047
ref: 19

WASHER 4MM

€ 2.00

20

0831311048
ref: 20

NUT 4MM

€ 2.00

21

0925008001
ref: 21

PLUG(OD:14)

€ 1.00
