GENERATOR

GS1100GK 1983 (D) GENERAL EXPORT (E01)

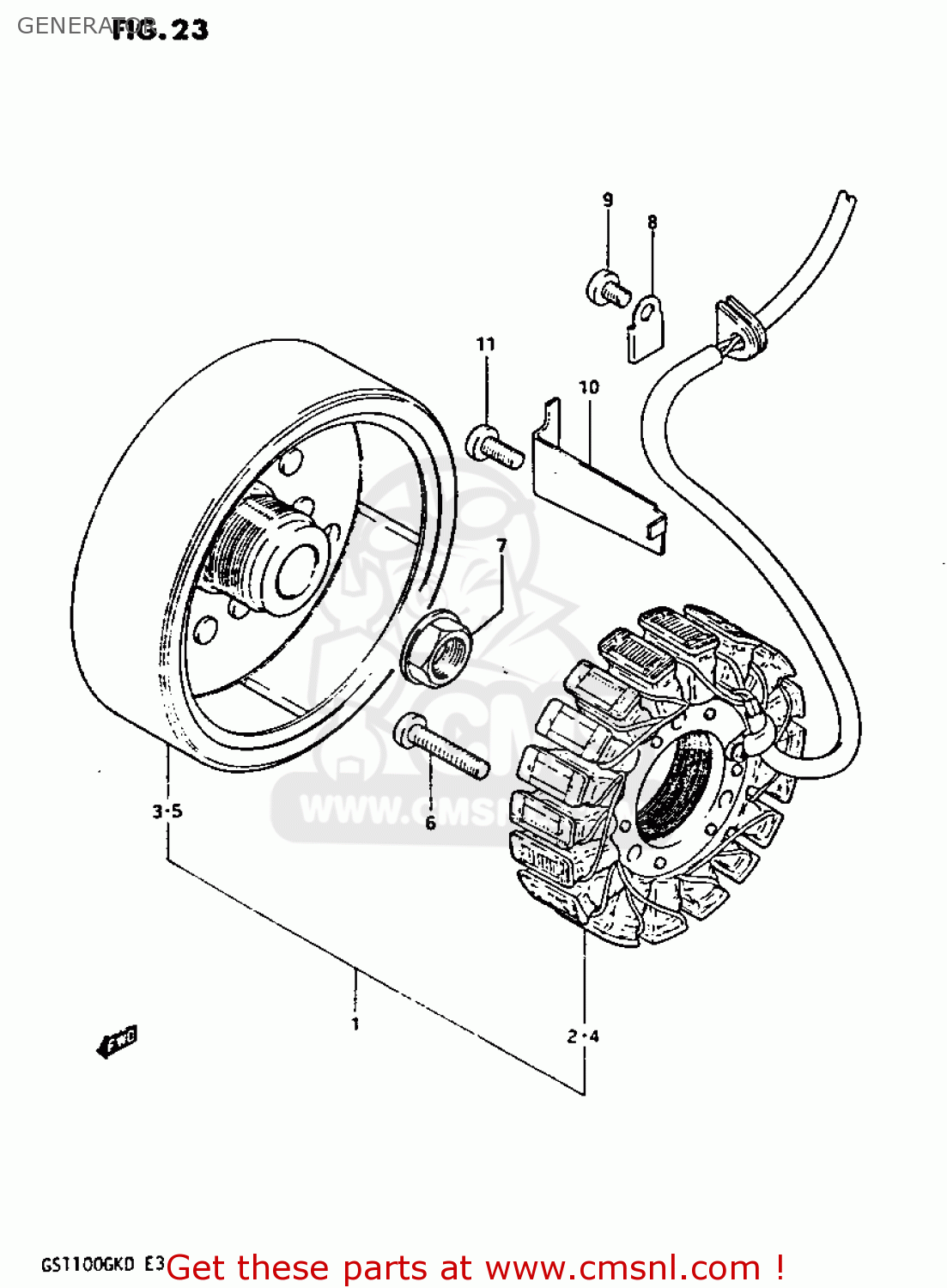

Generator diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3140109300
ref: 1
GS1100GKZ/GK2

STARTER ASSY

€ 405.50

3140109300
ref: 2
GS1100GKZ/GK2

STARTER ASSY

€ 405.50

3140249420
ref: 3
GS1100GKZ/GK2

ROTOR ASSEMBLY

€ 339.50

3140109300
ref: 4
GS1100GKD

STARTER ASSY

€ 405.50

3140249420
ref: 5
GS1100GKD

ROTOR ASSEMBLY

€ 339.50

0211206308
ref: 6

SCREW 6X30

€ 2.50

3179249200
ref: 7

NUT,GENERATOR ROTOR

€ 10.00

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205087
ref: 9

SCREW

€ 2.00

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206107
ref: 11

SCREW

€ 1.50
