ELECTRICAL (GS1100GKZ/GK2)

GS1100GK 1983 (D) GENERAL EXPORT (E01)

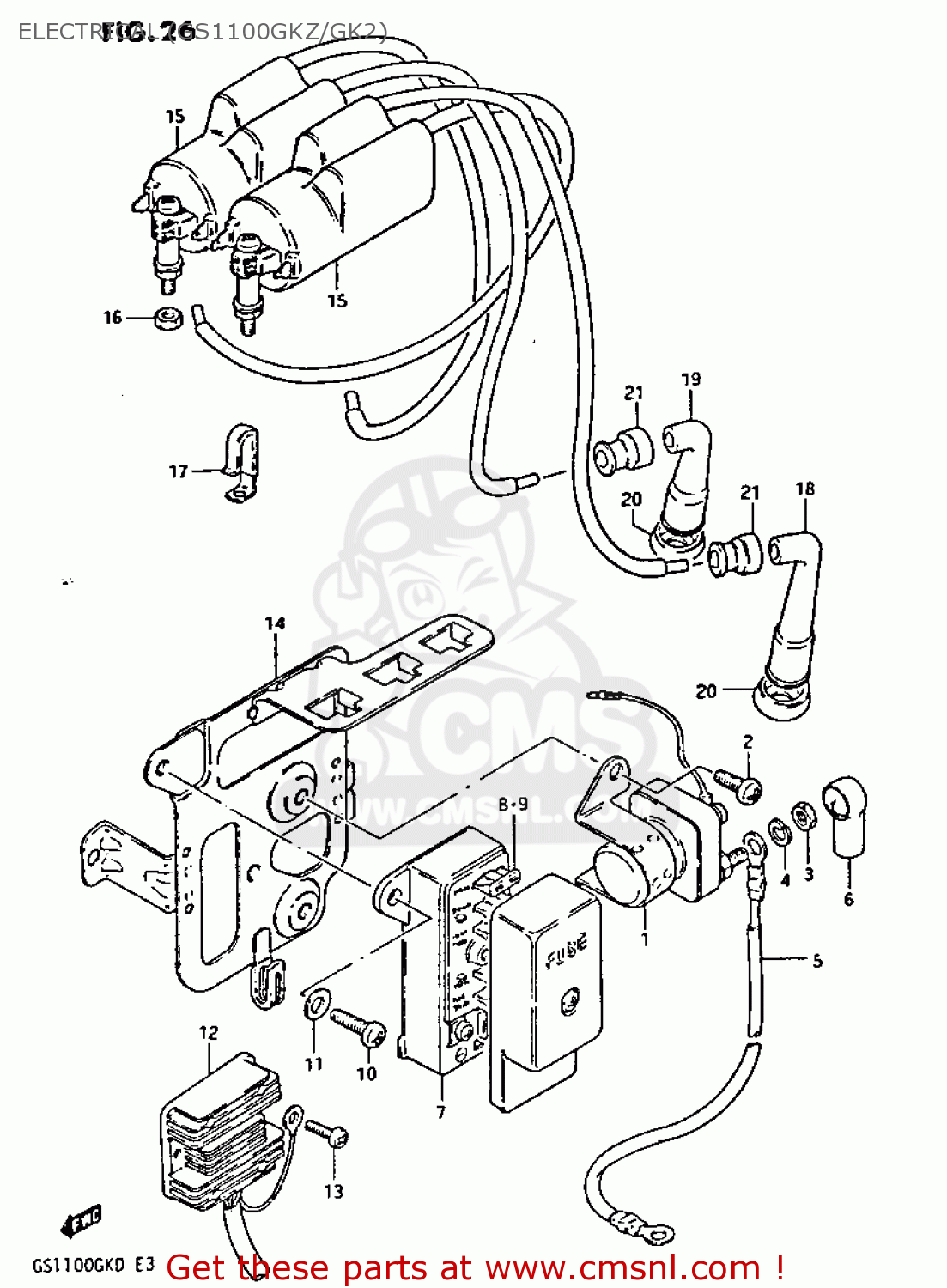

Electrical (gs1100gkz/gk2) diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (GS1100GKZ/GK2) GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206107
ref: 2

SCREW

€ 1.50

3

0831022067
ref: 3

NUT 6MM

€ 2.50

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

3385034301
ref: 5

CABLE,STARTING MOTOR

€ 50.00

6-1

3186111500
ref: 6-1

CAP,TERMINAL

€ 4.50

6-2

3186149400
ref: 6-2
HAVE SLIT

CAP,STARTER RELAY

€ 0.00

7

3674049401
ref: 7

BOX ASSEMBLY,FUSE

€ 69.50

8

0948110101
ref: 8

FUSE(10A)

€ 2.50

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10

0211206128
ref: 10

SCREW 6X12

€ 2.00

11

0832201067
ref: 11

WASHER

€ 2.00

12

3280043400
ref: 12

RECTIFIER ASSEMBLY

€ 380.50

13

0211206128
ref: 13

SCREW 6X12

€ 2.00

14

4741045110
ref: 14

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

15

3341034210
ref: 15

COIL ASSEMBLY,IGNITION

€ 182.00

16

0831000067
ref: 16

NUT

€ 2.50

17

0940306307
ref: 17

CLAMP

€ 4.50

18

3351045010
ref: 18

CAP ASSY,SPARK PLUG

€ 23.00

19

3351043010
ref: 19

CAP,SPARK PLUG

€ 11.50

20

3354169010
ref: 20

SEAL,SPARK PLUG

€ 5.00

21

3354298000
ref: 21

SEAL,SPARK PLU

€ 4.50
