Buy Suzuki GS Parts Online


CRANKCASE COVER

GS1100GK 1983 (D) GENERAL EXPORT (E01)

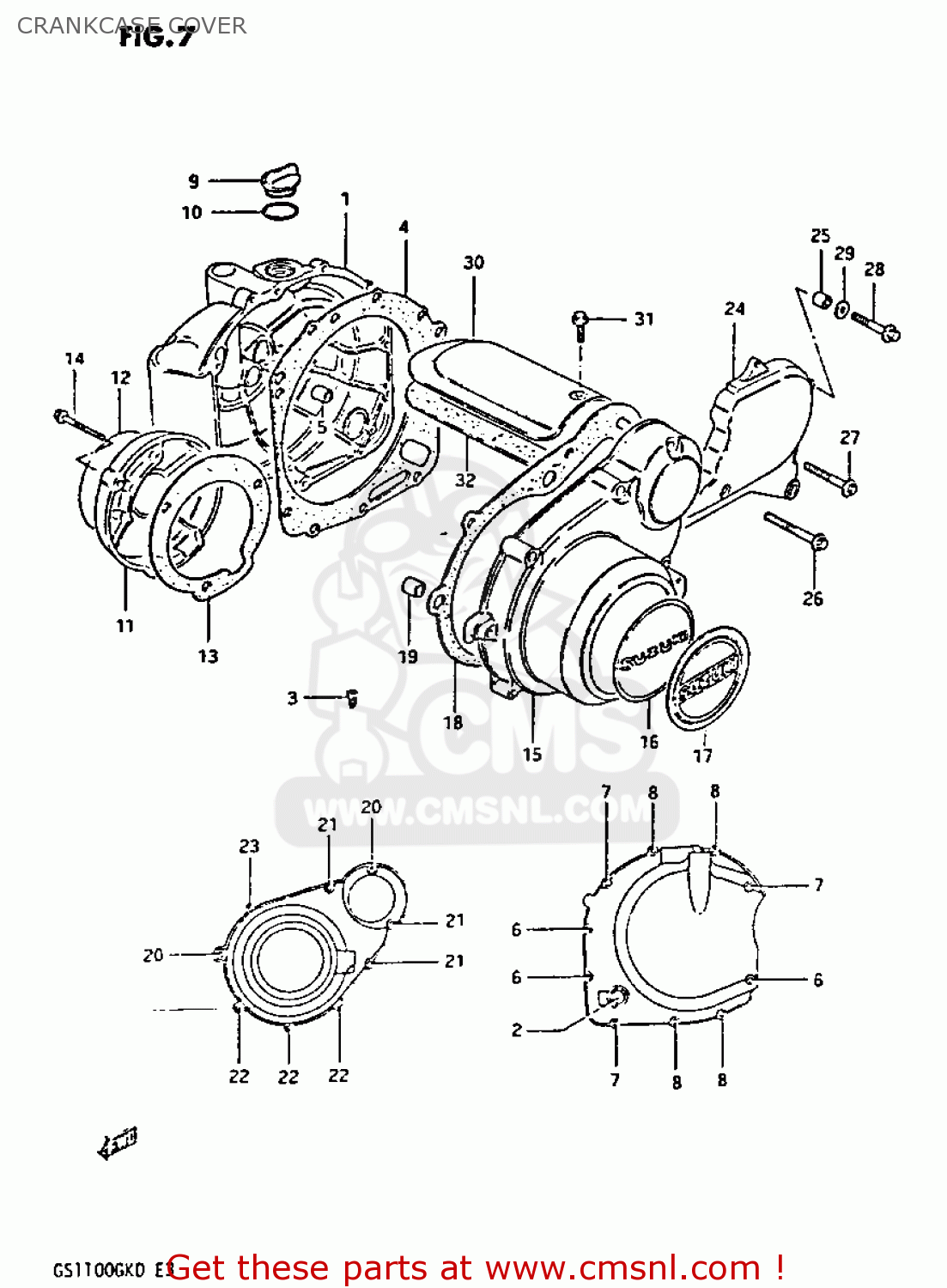

Crankcase cover diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

CRANKCASE COVER GS1100GK 1983 (D) GENERAL EXPORT (E01)
CRANKCASE COVER GS1100GK 1983 (D) GENERAL EXPORT (E01)
CRANKCASE COVER GS1100GK 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1134049101
ref: 1
COVER,CLUTCH
1134049101
€ 179.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3
0949322009
ref: 3
JET
€ 0.00
4
1148249100H17
ref: 4
GASKET,MAGNETO COVER (NAS)
1148249100H17
€ 20.50
5
0920209004
ref: 5
PIN
€ 2.50
6
0154706357
ref: 6
BOLT
0154706357
€ 2.50
7
0154706307
ref: 7
BOLT
0154706307
€ 2.50
8
0154706257
ref: 8
BOLT
0154706257
€ 2.50
9
0920030810
ref: 9
PLUG SET
0920030810
€ 8.50
10
0928032005
ref: 10
O RING(D:2.2,ID:32)
0928032005
€ 2.00
11
1138149002
ref: 11
COVER,CONTACT BREAKER
1138149002
€ 57.00
12-1
6823534200
ref: 12-1
GS1100GKZ/GK2
EMBLEM,CONTACT BREAKER COVER
6823534200
€ 22.50
12-2
6823545200
ref: 12-2
GS1100GKD
EMBLEM,CONTACT BREAKER COVER
6823545200
€ 24.00
13
1149145000
ref: 13
GS1100GKZ/GK2
GASKET,CONTACT BREAKER COVER (NAS)
1149145000
€ 5.50
14
0154705307
ref: 14
BOLT
0154705307
€ 2.00
15
1135149002
ref: 15
COVER,MAGNETO
1135149002
€ 202.50
16
6823334200
ref: 16
GS1100GKZ/GK2
EMBLEM,MAGNETO COVER
6823334200
€ 28.50
17
6823345200
ref: 17
GS1100GKD
EMBLEM,MAGNETO COVER
6823345200
€ 20.50
18
1148345000H17
ref: 18
GASKET,MAGNETO COVER (NAS)
1148345000H17
€ 12.50
19
0920613001
ref: 19
PIN
0920613001
€ 2.50
20
0154706457
ref: 20
BOLT
0154706457
€ 2.50
21
0154706407
ref: 21
BOLT
0154706407
€ 2.50
22
0154706357
ref: 22
BOLT
0154706357
€ 2.50
23
0154706307
ref: 23
BOLT
0154706307
€ 2.50
24
1136049101
ref: 24
COVER,SECONDARY DRIVE
€ 99.00
25
0421109129
ref: 25
PIN
0421109129
€ 2.00
26
0154706307
ref: 26
BOLT
0154706307
€ 2.50
27
0154706257
ref: 27
BOLT
0154706257
€ 2.50
28
0154706207
ref: 28
BOLT
0154706207
€ 2.50
29
0832201067
ref: 29
WASHER
0832201067
€ 2.00
30-1
1138249002
ref: 30-1
GS1100GKZ/GK2
COVER,STARTER MOTOR
1138249002
€ 43.00
30-2
1138245410
ref: 30-2
GS1100GKD
COVER,STARTER MOTOR
1138245410
€ 35.00
31-1
0154705087
ref: 31-1
GS1100GKZ/GK2
BOLT
0154705087
€ 2.00
31-2
0154705084
ref: 31-2
GS1100GKD
BOLT
0154705084
€ 2.50
32
1149345002
ref: 32
GASKET,STARTING MOTOR COVER (NAS)
1149345002
€ 10.50
