FRONT MASTER CYLINDER

GS1100GK 1983 (D) GENERAL EXPORT (E01)

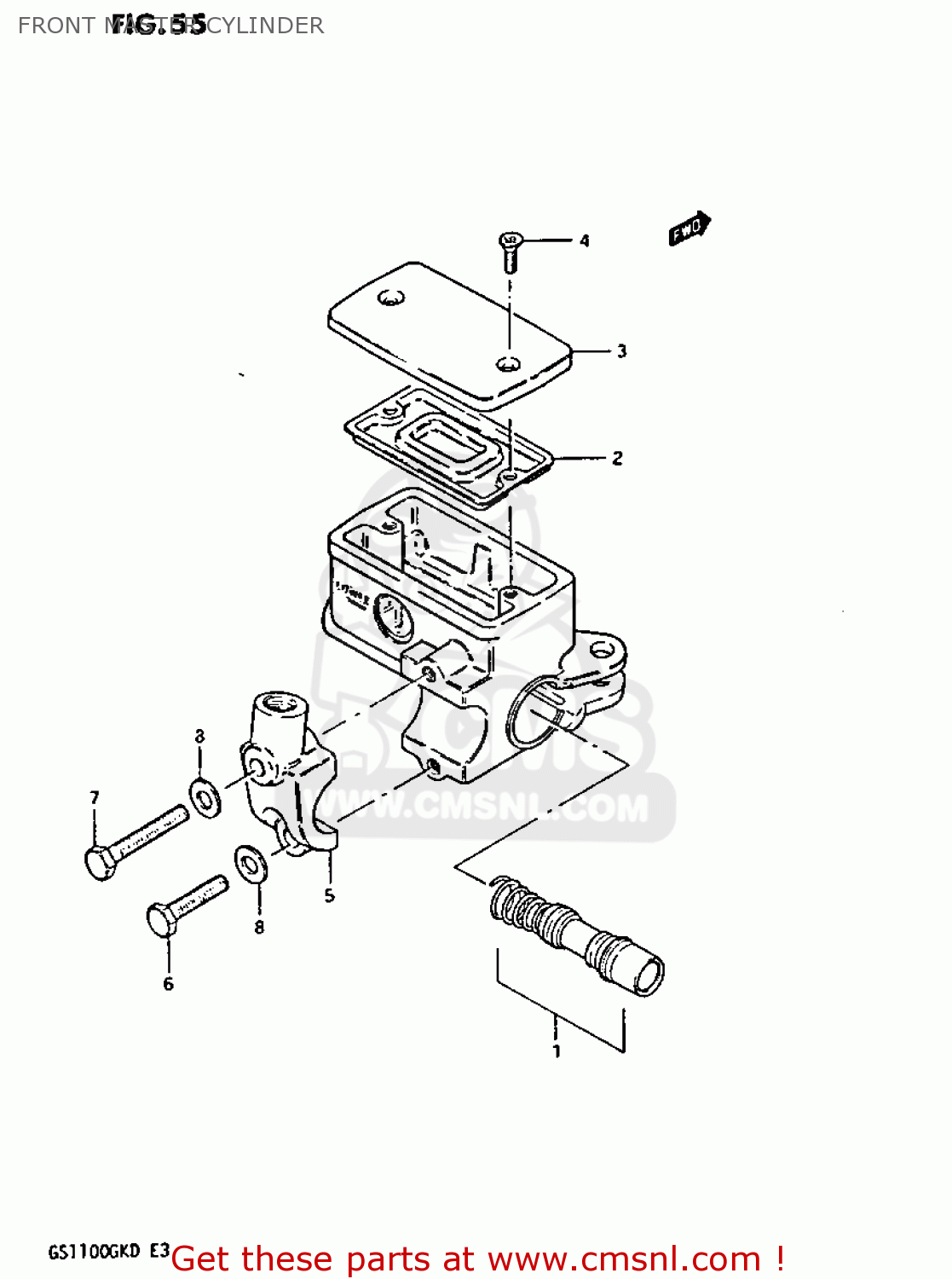

Front master cylinder diagram GS1100GK 1983 (D) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS1100GK 1983 (D) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS1100GK 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960049470
ref: 0

CYLINDER ASSEMBLY,MASTER

€ 0.00

1

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

2

5966749460
ref: 2

5966749460

3

5966904A10
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706408
ref: 6

BOLT 6X40

€ 2.00

7

0150006257
ref: 7

BOLT

€ 2.00

8

0832201067
ref: 8

WASHER

€ 2.00
