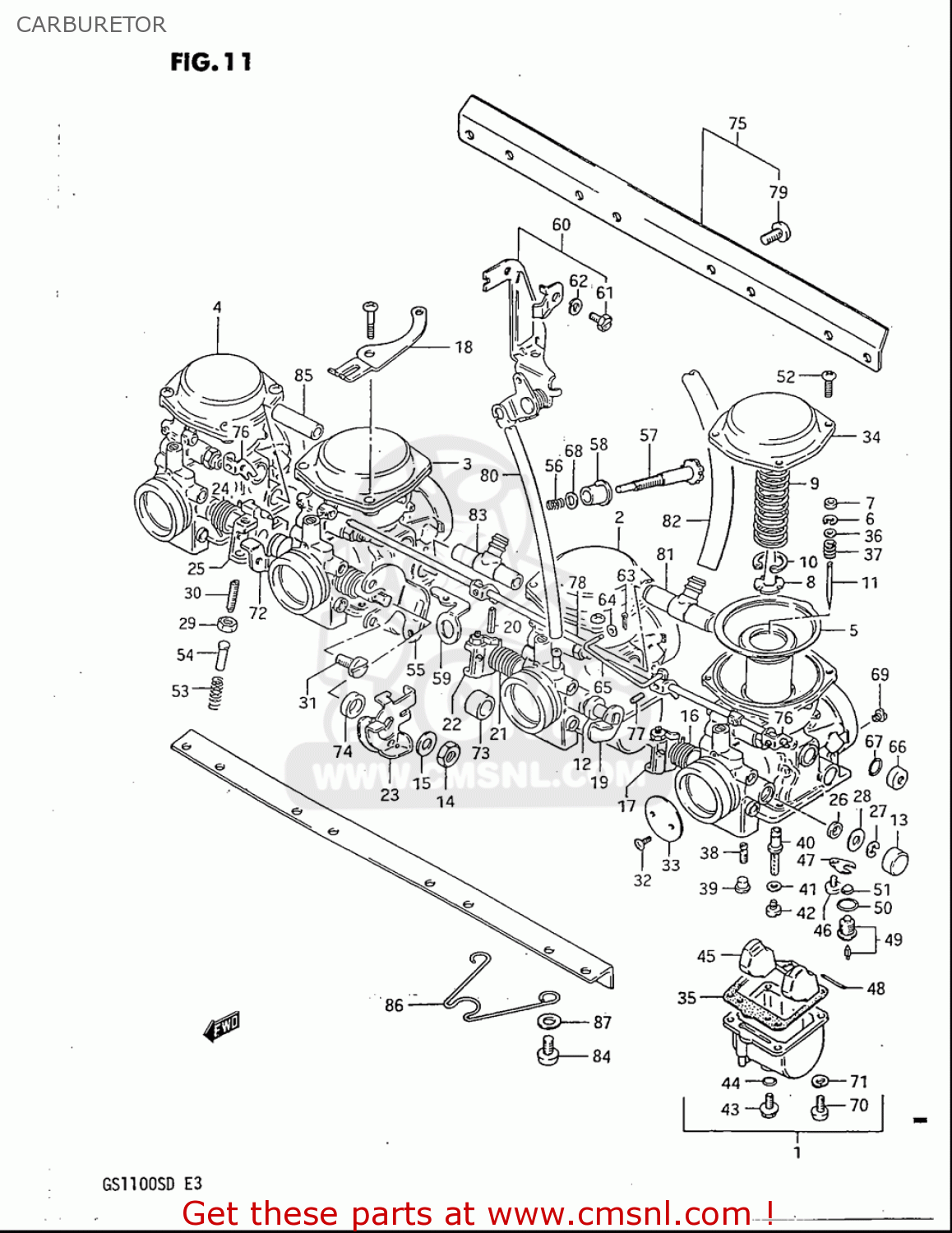

CARBURETOR

ref

part #

description

quantity

5

1350049250
ref: 5

DIAPHRAGM,CARBURETOR

€ 128.50

6

1339431210
ref: 6

CLIP,NEEDLE

€ 3.50

7

1338744030
ref: 7

RING

€ 5.00

8

1338944030
ref: 8

HOLDER,GUIDE

€ 10.50

9

1350349200
ref: 9

SPRING

€ 9.00

10

1358144030
ref: 10

E RING

€ 6.50

11

1338349200
ref: 11

NEEDLE,JET

€ 0.00

12

1355749200
ref: 12

GASKET

€ 7.00

13

1357847070
ref: 13

CAP

€ 5.50

14

0831000087
ref: 14

NUT

€ 2.00

20

1356347070
ref: 20

PIN,THROTTLE SHAFT

€ 0.00

23

1355547070
ref: 23

LEVER ASSEMBLY,THROTTLE

€ 0.00

26

1365151010
ref: 26

SEAL

€ 4.00

27

1361744080
ref: 27

E RING

€ 3.50

28

1355747070
ref: 28

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

29

1360747070
ref: 29

NUT

€ 4.00

30

1360547080
ref: 30

SCREW

€ 7.00

31

021120510A
ref: 31

SCREW

€ 2.00

32

1360444080
ref: 32

SCREW

€ 3.50

34

1350245530
ref: 34

COVER,DIAPHRAGM

€ 0.00

35

1325144080H17
ref: 35

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

36

1338244030
ref: 36

WASHER

€ 3.50

37

1338844030
ref: 37

SPRING

€ 6.00

38

0949245016
ref: 38

JET,PILOT(45)

€ 12.00

39

1335744080
ref: 39

PLUG,NEEDLE JET

€ 4.50

41

1338203110
ref: 41

WASHER

€ 2.50

42

0949122015
ref: 42

JET,MAIN(112.5)

€ 11.00

43

1324744080
ref: 43

PLUG,DRAIN

€ 9.50

44

1324644080
ref: 44

GASKET (NAS)

€ 3.50

45

1325044080
ref: 45

FLOAT

€ 31.00

46

0211204063
ref: 46

SCREW 4X6

€ 2.00

47

1337311400
ref: 47

PLATE,NEEDLE VALVE FITING

€ 7.00

48

1325492311
ref: 48

PIN,FLOAT

€ 2.00

49

1337044500
ref: 49

VALVE ASSY,NEEDLE

€ 40.50

50

1337435C00
ref: 50

O RING,NEEDLE VALVE SEAT

€ 6.00

51

1337619F00
ref: 51

FILTER

€ 6.50

52

0211205167
ref: 52

SCREW

€ 2.50

53

1326844010
ref: 53

SPRING,THROTTLE SCREW

€ 3.00

54

1357547070
ref: 54

PIN,THROTTLE LEVER

€ 2.50

56

1327193011
ref: 56

SPRING

€ 4.50

57

1326747070
ref: 57

SCREW

€ 21.00

58

1327631210
ref: 58

BUSH

€ 4.00

60

1362445500
ref: 60

BRACKET ASSY

€ 35.50

61

0150005103
ref: 61

BOLT

€ 1.50

62

0832101057
ref: 62

WASHER,LOCK

€ 2.00

64

1352398010
ref: 64

SEAT,SPRING

€ 5.00

65

1342247070
ref: 65

LEVER ASSY

€ 11.50

66

1368231210
ref: 66

CAP,STARTER VALVE

€ 5.00

67

1327847090
ref: 67

O RING

€ 2.00

68

1343247090
ref: 68

WASHER

€ 2.50

70

0211205164
ref: 70

SCREW

€ 2.00

71

0832101053
ref: 71

LOCK,WASHER

€ 3.00

74

1357445120
ref: 74

RING

€ 2.50

76

1342244080
ref: 76

LEVER

€ 10.00

77

1360547070
ref: 77

SCREW

€ 5.50

78

1341049200
ref: 78

SHAFT,STARTER

€ 29.00

79

021420512A
ref: 79

SCREW

€ 1.50

80

0935545855600
ref: 80

HOSE(4.5X8.5X600)

€ 14.00

81

1368549210
ref: 81

NIPPLE

€ 16.50

82

0935465113600
ref: 82

HOSE(6.5X11.5X600)

€ 26.00

83

1368549200
ref: 83

NIPPLE

€ 26.50

84

021120616A
ref: 84

SCREW

€ 1.50

85

1368547070
ref: 85

NIPPLE

€ 25.00

86

1361949210
ref: 86

CLIP

€ 10.00

87

1361549200
ref: 87

WASHER

€ 0.00

all assemblies
