SIGNAL GENERATOR

GS1100S 1983 (D) USA (E03)

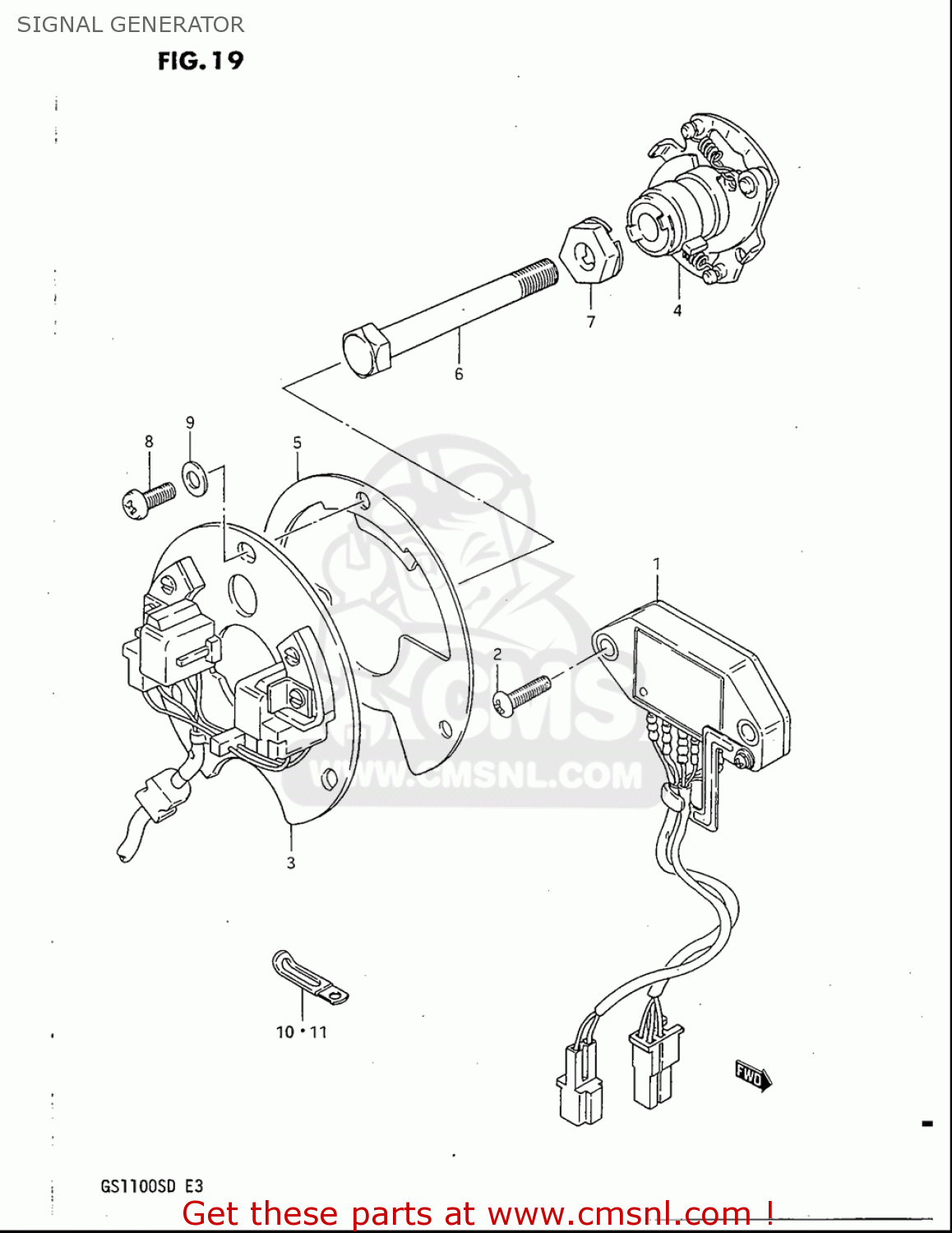

Signal generator diagram GS1100S 1983 (D) USA (E03)

SIGNAL GENERATOR GS1100S 1983 (D) USA (E03)

SIGNAL GENERATOR GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290045120
ref: 1

IGNITOR UNIT

€ 492.50

2

0211206257
ref: 2

SCREW

€ 2.00

3

3311045410
ref: 3

SIGNAL GENERATOR ASSY

€ 296.50

4

3312049211
ref: 4

GOVERNOR ASSY

€ 174.00

5

3337145100
ref: 5

PLATE,TIMING

€ 10.50

6

0150008653
ref: 6

BOLT

€ 3.00

7

3346547000
ref: 7

WASHER

€ 19.00

8

0912505024
ref: 8

SCREW(5X12)

€ 2.00

9

0832201057
ref: 9

WASHER

€ 2.50

10

0940406432
ref: 10

CLAMP(L:65)

€ 2.50

11

0940408420
ref: 11

CLAMP(L:120 T:1.0)

€ 3.50
