CHAIN CASE - REAR SHOCK ABSORBER

GS1100S 1983 (D) USA (E03)

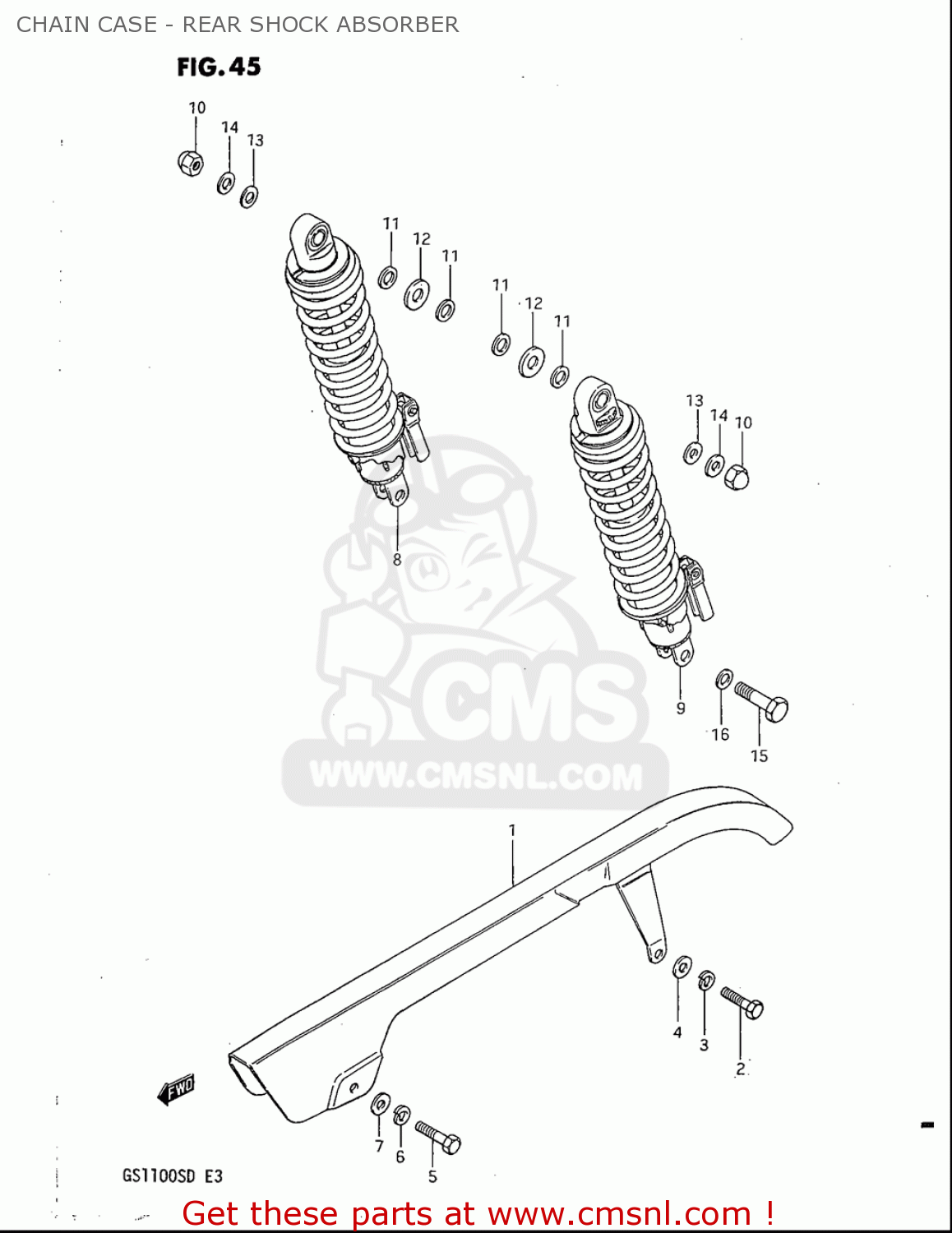

Chain case - rear shock absorber diagram GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

6131049301291
ref: 1

CHAIN CASE

€ 115.50

0150006257
ref: 2

BOLT

€ 2.00

0832101067
ref: 3

WASHER,LOCK

€ 2.50

0832201067
ref: 4

WASHER

€ 2.00

0150006127
ref: 5

BOLT

€ 2.00

0832101067
ref: 6

WASHER,LOCK

€ 2.50

0916006084
ref: 7

WASHER(6.5X18X1.6)

€ 2.00

0831310107
ref: 10

NUT

€ 2.50

0832201127
ref: 11

WASHER

€ 2.00

0916012082
ref: 12

WASHER(12.5X24X3.2)

€ 2.50

0916010127
ref: 13

WASHER (10.5X24X2.3)

€ 2.00

0916010128
ref: 14

WASHER (10.5X25X3.2)

€ 2.00

0910410002
ref: 15

BOLT(10X36)

€ 4.50

0832201107
ref: 16

WASHER

€ 2.50
