GENERATOR

GS1100S 1983 (D) USA (E03)

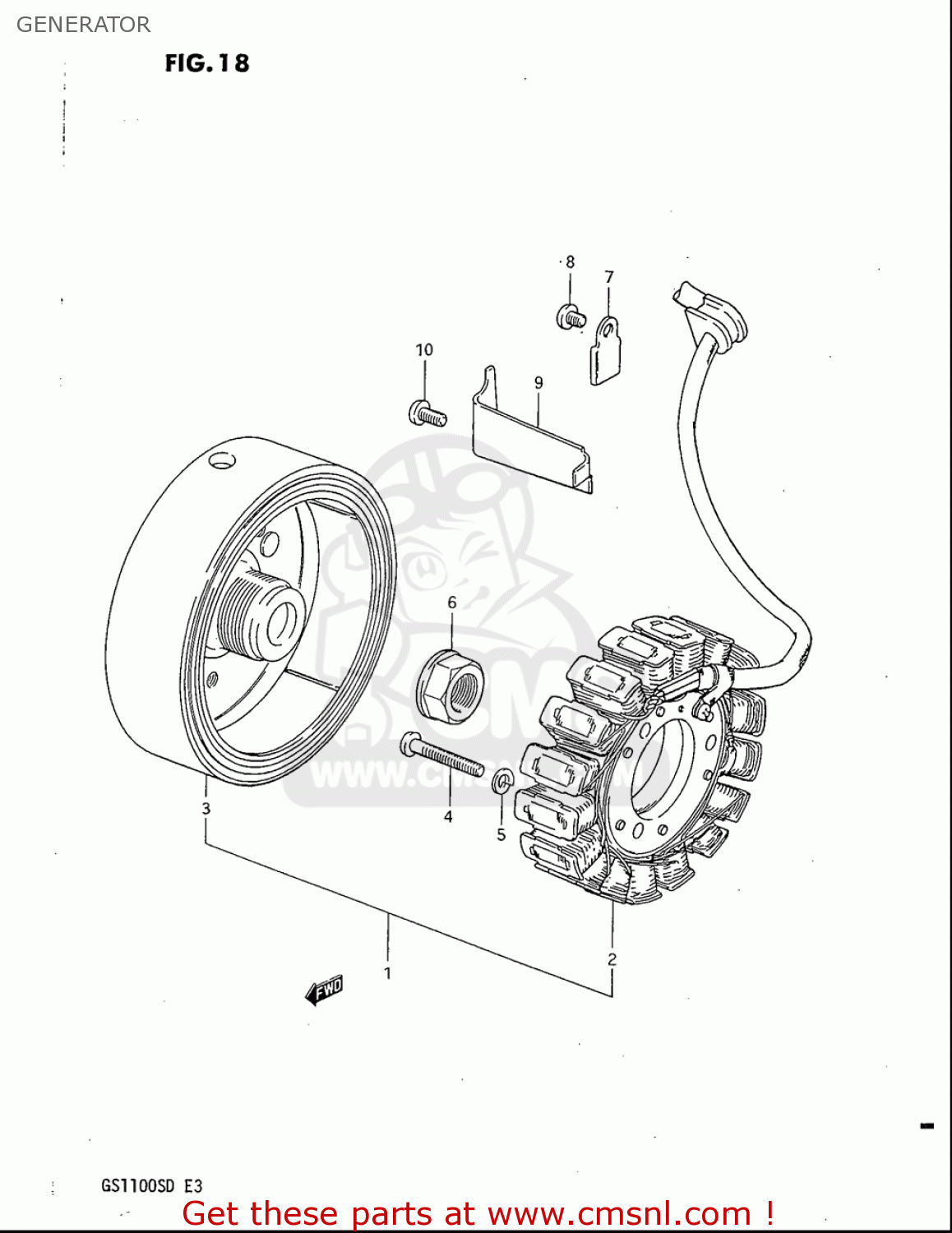

Generator diagram GS1100S 1983 (D) USA (E03)

GENERATOR GS1100S 1983 (D) USA (E03)

GENERATOR GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140149531
ref: 1

STATOR

€ 297.00

2

3140149531
ref: 2

STATOR

€ 297.00

3

3140249531
ref: 3

ROTOR ASSY

€ 361.00

4

0211205303
ref: 4

SCREW

€ 1.50

5

0832101057
ref: 5

WASHER,LOCK

€ 2.00

6

3179249200
ref: 6

NUT,GENERATOR ROTOR

€ 10.00

7

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

8

0211205087
ref: 8

SCREW

€ 2.00

9

3149845000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 2.00

10

0211206107
ref: 10

SCREW

€ 1.50
