REAR BRAKE HOSE

GS1100S 1983 (D) USA (E03)

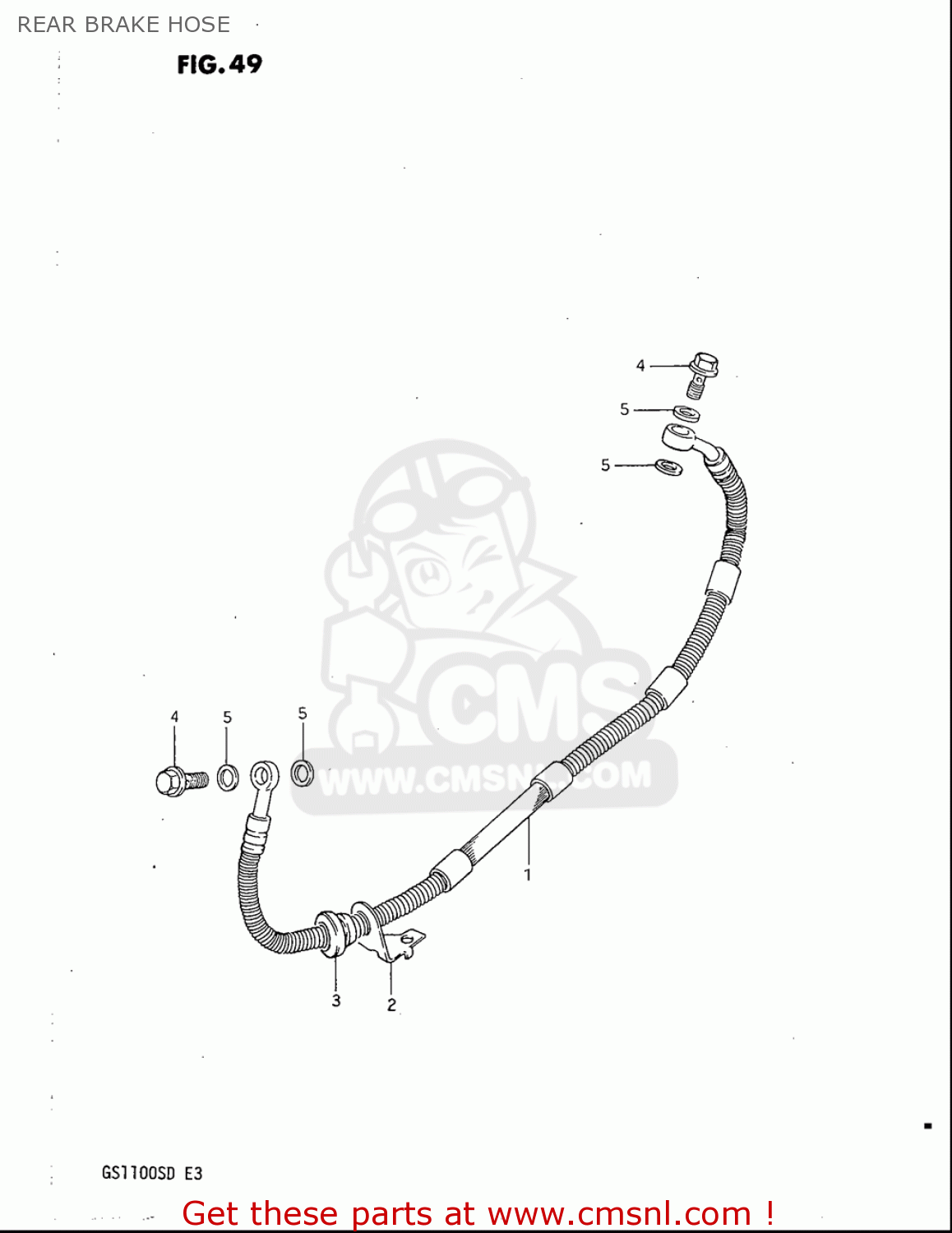

Rear brake hose diagram GS1100S 1983 (D) USA (E03)

REAR BRAKE HOSE GS1100S 1983 (D) USA (E03)

REAR BRAKE HOSE GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6948008C01
ref: 1

HOSE,FR BRAKE NO.1

€ 94.00

2

6924347000
ref: 2

GUIDE,BRAKE HOSE

€ 5.50

3

5924436200
ref: 3

GROMMET,BRAKE HOSE GUIDE

€ 4.00

4

0936010017
ref: 4

BOLT UNION

€ 6.50

5

0916110009
ref: 5

WASHER(10X15X1.5)

€ 2.00
