RIGHT HANDLE SWITCH

GS1100S 1983 (D) USA (E03)

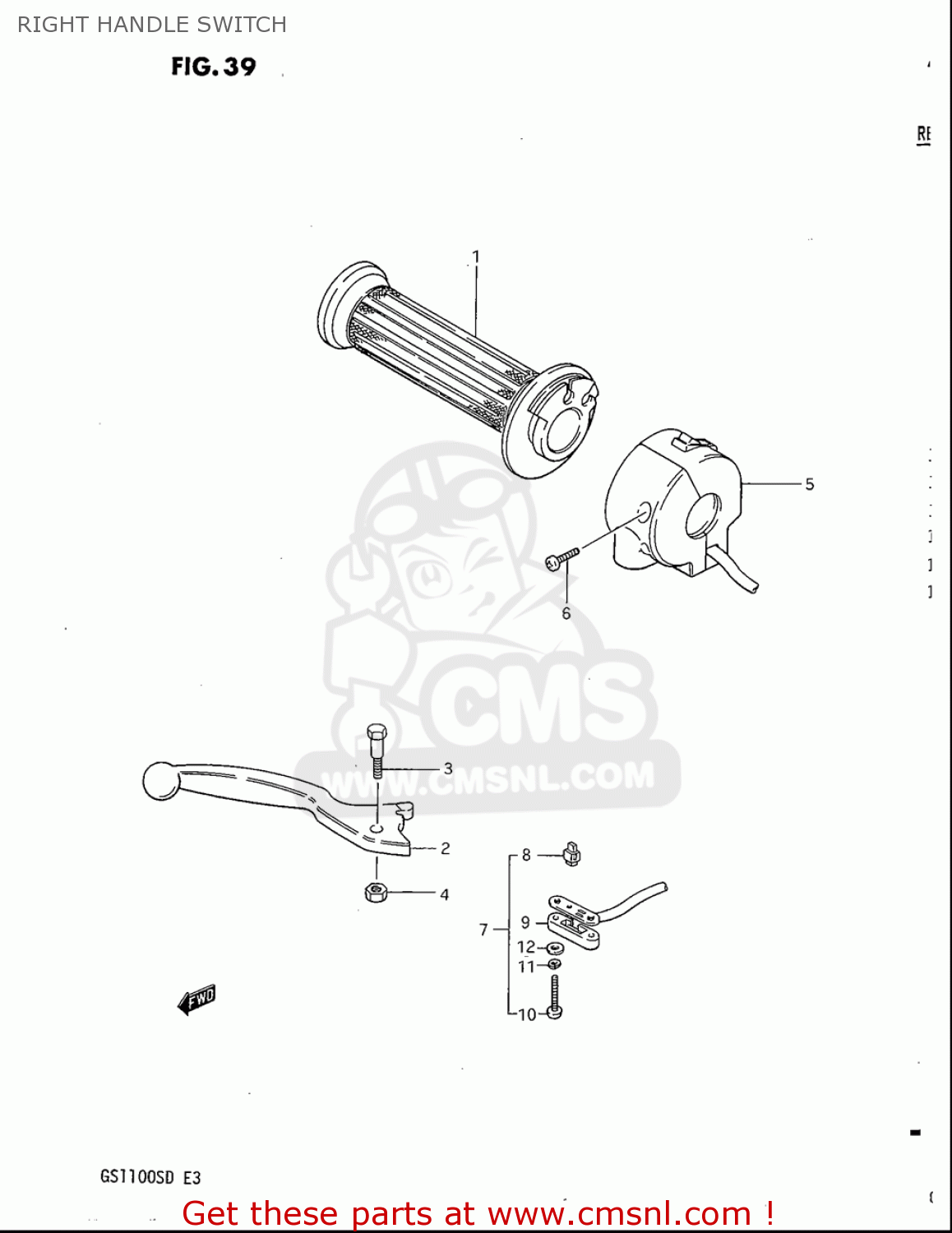

Right handle switch diagram GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

5711049501
ref: 1

GRIP,THROTTLE

€ 26.00

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

5743118621
ref: 3

BOLT

€ 8.00

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720049561
ref: 5-1

SWITCH ASSY,HANDLE,R

€ 0.00

5-2

3720049541
ref: 5-2

SWITCH ASSY,HANDLE,R

€ 130.00

0912505102
ref: 6

SCREW(5X14)

€ 2.50

5746045500
ref: 7

SWITCH ASSY,STOP

€ 40.00

5746518601
ref: 8

CONTACT,SWITCH

€ 4.50

5748133010
ref: 9

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 10

SCREW

€ 2.50

0916203001
ref: 11

WASHER,LOCK

€ 1.50

0832201037
ref: 12

WASHER

€ 2.00

RIGHT HANDLE SWITCH

all assemblies
