REAR COMBINATION LAMP
GS1100S 1983 (D) USA (E03)

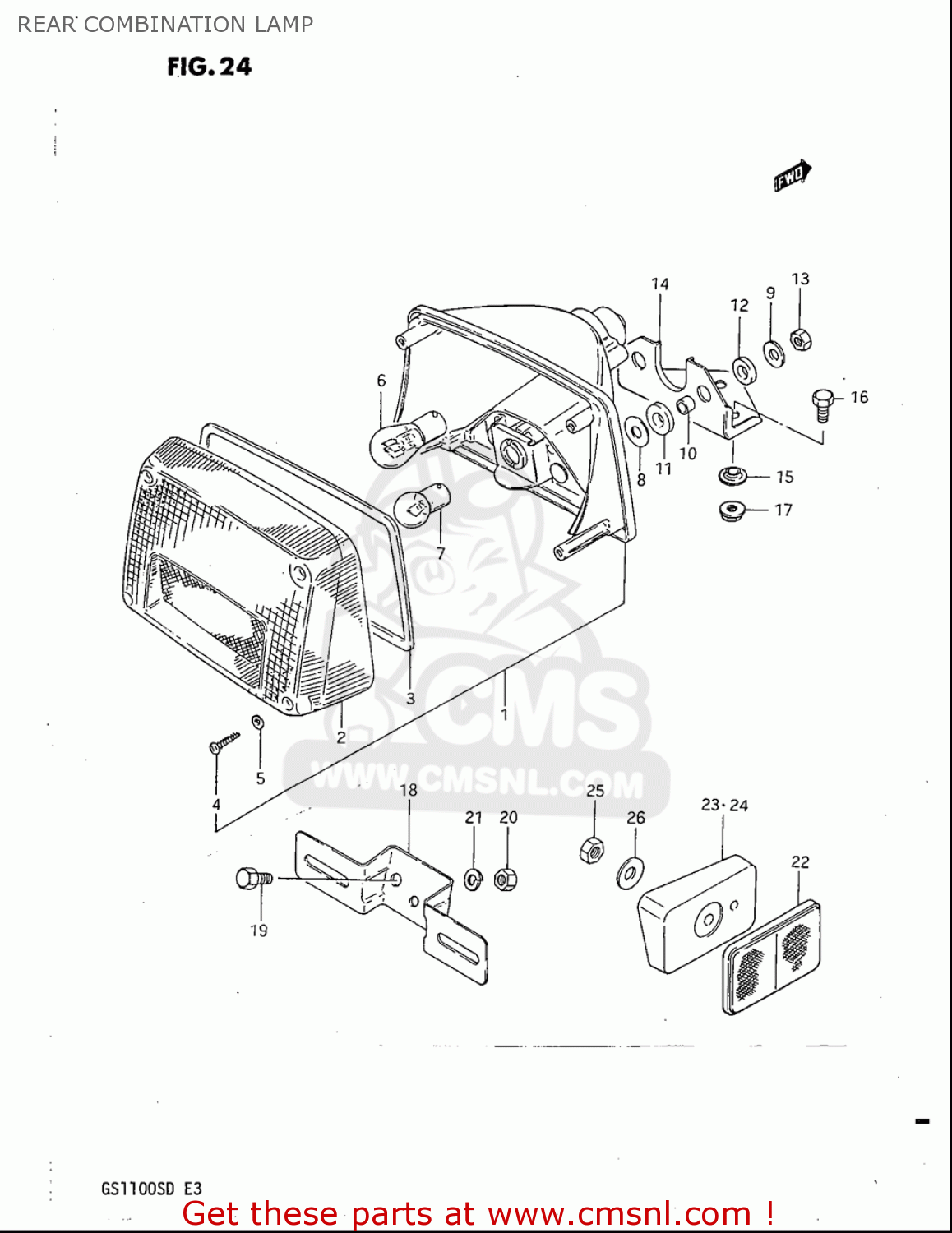

Rear combination lamp diagram GS1100S 1983 (D) USA (E03)
REAR COMBINATION LAMP GS1100S 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571049330
ref: 1
LAMP ASSY,RR COMBINATION
€ 209.50
2
3571249031
ref: 2
LENS
€ 43.50
3
3571349030
ref: 3
GASKET (NAS)
€ 12.50
4
0351104163
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947112035
ref: 6
BULB(12V23W)
€ 5.50
7
0947112141
ref: 7
BULB(12V8W)
€ 7.00
8
0916006084
ref: 8
WASHER(6.5X18X1.6)
€ 2.00
9
0916006054
ref: 9
WASHER(6.5X22X1.6)
€ 2.00
10
0918006038
ref: 10
SPACER(6.1X9X7.5)
€ 2.00
11
0932009003
ref: 11
CUSHION
€ 2.00
12
0932009004
ref: 12
CUSHION
€ 2.50
13
083162006A
ref: 13
NUT
€ 2.00
15
0916906028
ref: 15
WASHER
€ 2.00
16
0150006167
ref: 16
BOLT
€ 3.00
17
083162006A
ref: 17
NUT
€ 2.00
19
0155006167
ref: 19
BOLT
€ 1.50
20
0831000067
ref: 20
NUT
€ 2.50
21
0832101067
ref: 21
WASHER,LOCK
€ 2.50
22
3597049330
ref: 22
REFLEX REFLECTOR,RR
€ 16.50
25
0831000057
ref: 25
NUT
€ 2.50
26
0832201057
ref: 26
WASHER
€ 2.50
